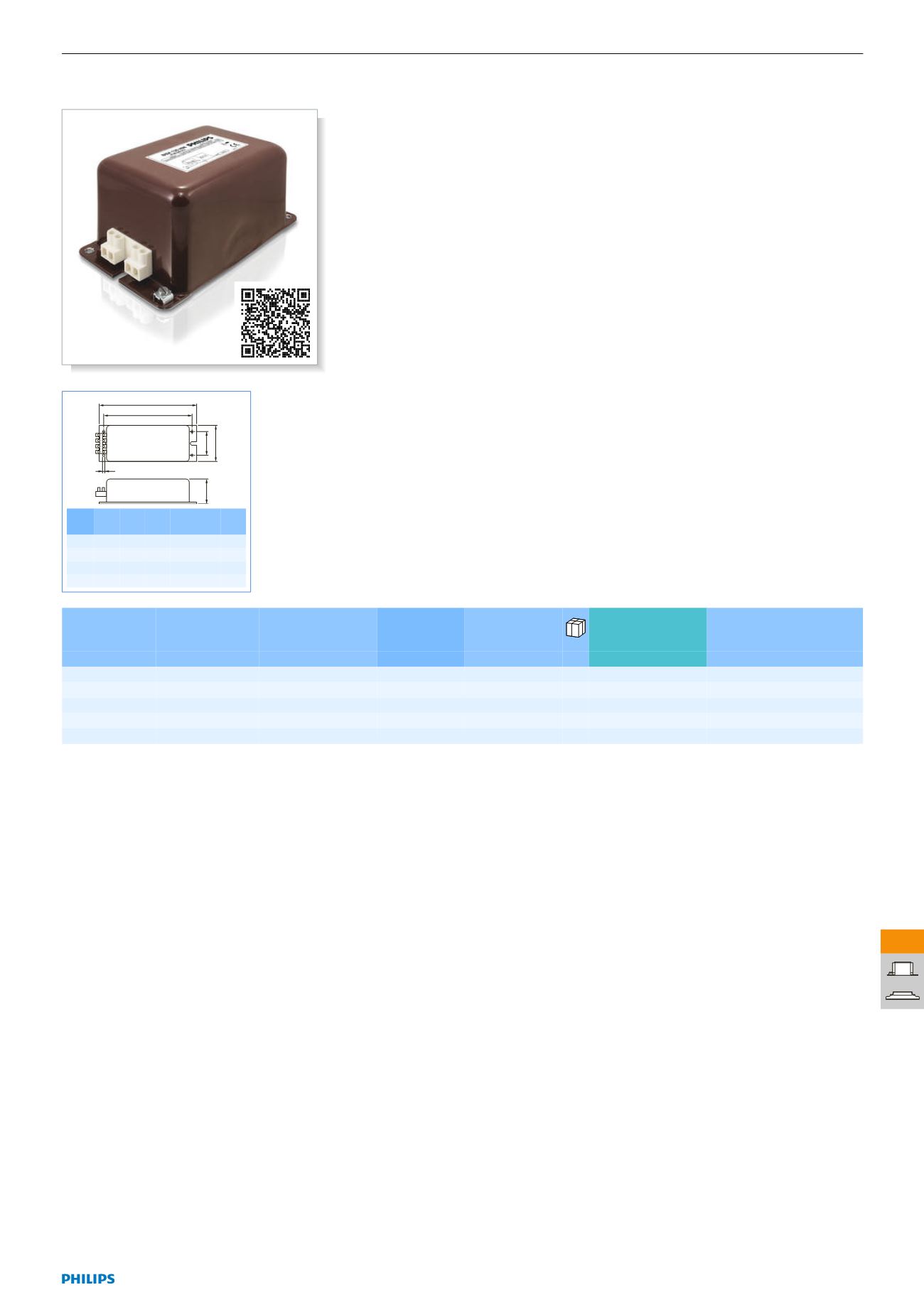

HID-Constant wattage BSX for SOX
Long-lasting, reliable solution
Constant-wattage (potted) electromagnetic
copper/iron ballasts for use with an external
ignitor for SOX and SOX-E lamps
Product Benefits
•Excellent resistance to humid conditions
•Long-lasting reliable solution – outstanding
product lifetime of 15 years average
•Minimal watt losses thanks to orthocyclic
winding process
•Control gear can be installed remotely
Product Features
•Series capacitor required in circuits with
constant wattage
•Silicon potted ballast under IP21 canopy
•Equipped with screw terminal blocks as
standard
•Ballasts for alternative mains voltages/
frequencies available upon request
Applications
•Outdoor lighting
System
•Electromagnetic system requires ballast,
ignitor and capacitor
•To be used with relevant SX. . ignitor
•Capacitor value to match system power can
be found on lamp/ballast combination sheet
•Climatic suitability: restricted to built-in
situations where relative humidity is limited
A1
A2
B1
C1
B2
D1
Dim. A1 A2 B1 B2 C1 D1
no. nom. nom. nom. nom. nom. nom.
1 173 157 64 42 52 4.2
2 149 135 80 42 67 4.2
3 178 162 100 42 74 4.2
4 178 162 100 42 78 4.2
Type Line Voltage Line Frequency Dim. no. Packing type/
Packing
configuration
National Order Code Ordering number
(V) (Hz)
BSX 66 H66 240 50 1 UNP 10 BSX66H66 872790087497600
BSX 91 H96 220-240 50 2 1CT / 8 8 BSX91H96 871150092039399
BSX 131 H96 220-240 50 3 1CT / 4 4 BSX131H96 871150091978699
BSX 135 H96 230-240 50 2 1CT / 8 8 BSX135H96 871150092007299
BSX 180 H96 220-240 50 4 1CT / 4 4 BSX180H96 871150093900599
