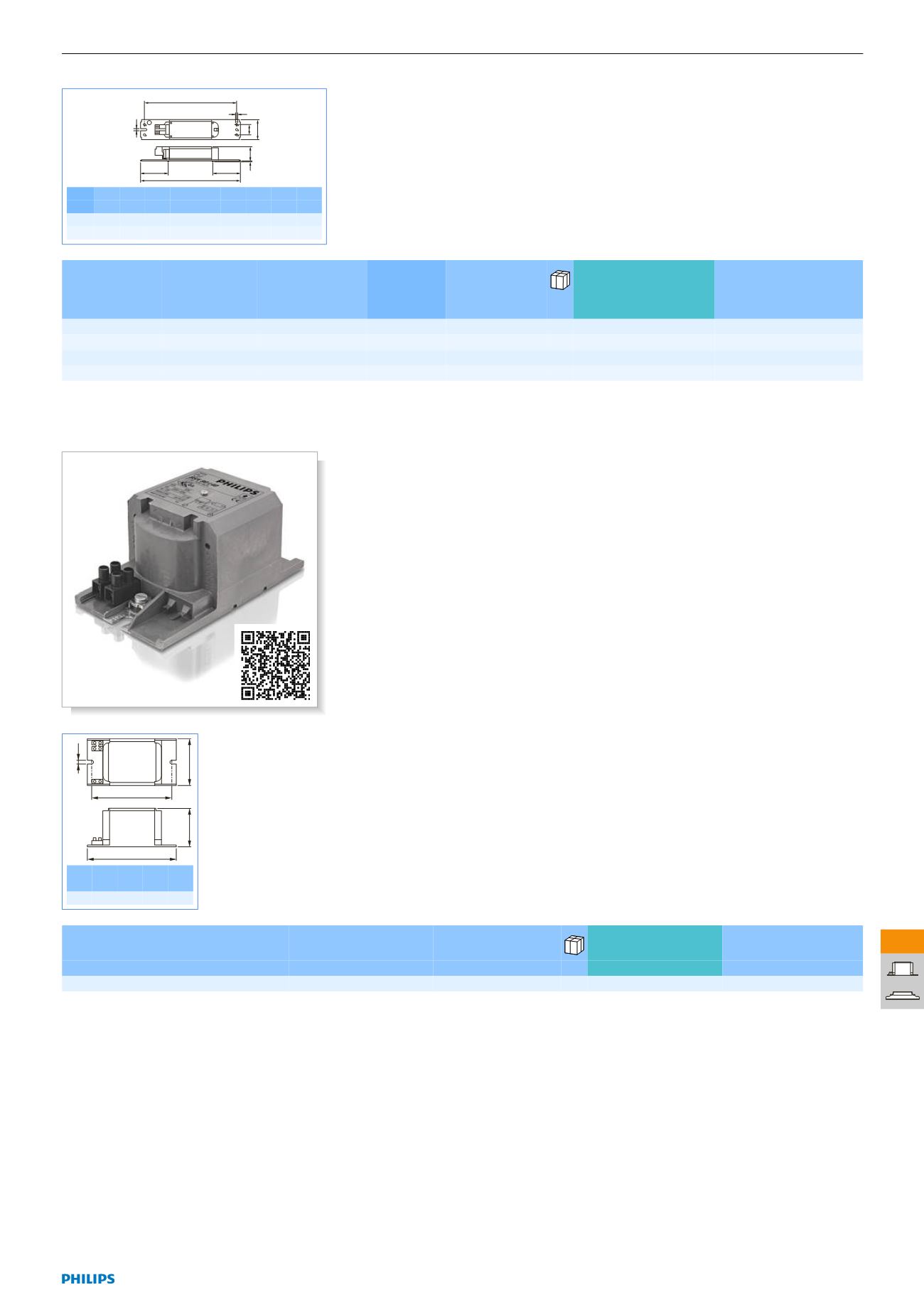

Lamps & Lighting Electronics Catalogue 2014

182 / 272

> >
A1
A2
B1
C1
D1
D1
C3
A4
A3
B2
Dim. A1 A2 A3 A4 B1 B2 C1 C3 D1
no. nom. nom. nom. nom. nom. nom. nom. nom. nom.
1 155 140 54 54 39 20 28 1.5 4.2
2 196 180 54 54 39 20 28 1.5 4.2
Type Line Voltage Line Frequency Dim. no. Packing type/
Packing
configuration
National Order Code Ordering number
(V) (Hz)
BSX 18 L82 240 50 1 UNP / 32 32 BSX18L82 871150091558030
BSX 26 L82 240 50 2 UNP / 24 24 BSX26L82 240V 871150092051530
BSX 35/55 L82 240 50 2 UNP / 15 15 BSX3555L82240VB 872790090500700
BSX 35/55 L82 240 50 2 UNP / 24 24 BSX3555L82 871150092053930
HID-HeavyDuty BSX for SOX
Long-lasting, reliable solution
Encapsulated electromagnetic copper/iron
ballasts for SOX and SOX-E lamps
Product Benefits
•Excellent resistance to chemical impact,
humid conditions and environmental stress
crack
•Long-lasting reliable solution – outstanding
product lifetime of 15 years average
•Minimal watt losses thanks to orthocyclic
winding process
•Control gear can be installed remotely
Product Features
•Encapsulated with thermoplastic polyester
resin, reinforced with glass fiber
•Equipped with screw terminal blocks as
standard; insert contacts available upon
request
•Ballasts for alternative mains voltages/
frequencies available upon request
•Separate earth terminal (HID ‘Heavy Duty’)
Applications
•Outdoor lighting
System
•Electromagnetic system requires ballast,
ignitor and capacitor
•To be used with the relevant SX. . ignitor.
Capacitor value to match system power can
be found on lamp/ballast combination sheet
D1
A1
B1
C1
A2
A1 A2 B1 C1 D1
nom. nom. nom. nom. nom.
118 103 65 53 6.2
Type Line Voltage Line Frequency Packing type/Packing
configuration
National Order Code Ordering number
8711500...
(V) (Hz)
BSX 90 L32 240 50 1NO / 6 6 BSX90L32 91534431
Philips Lamps and Lighting Electronic Catalogue 2014 182
11
