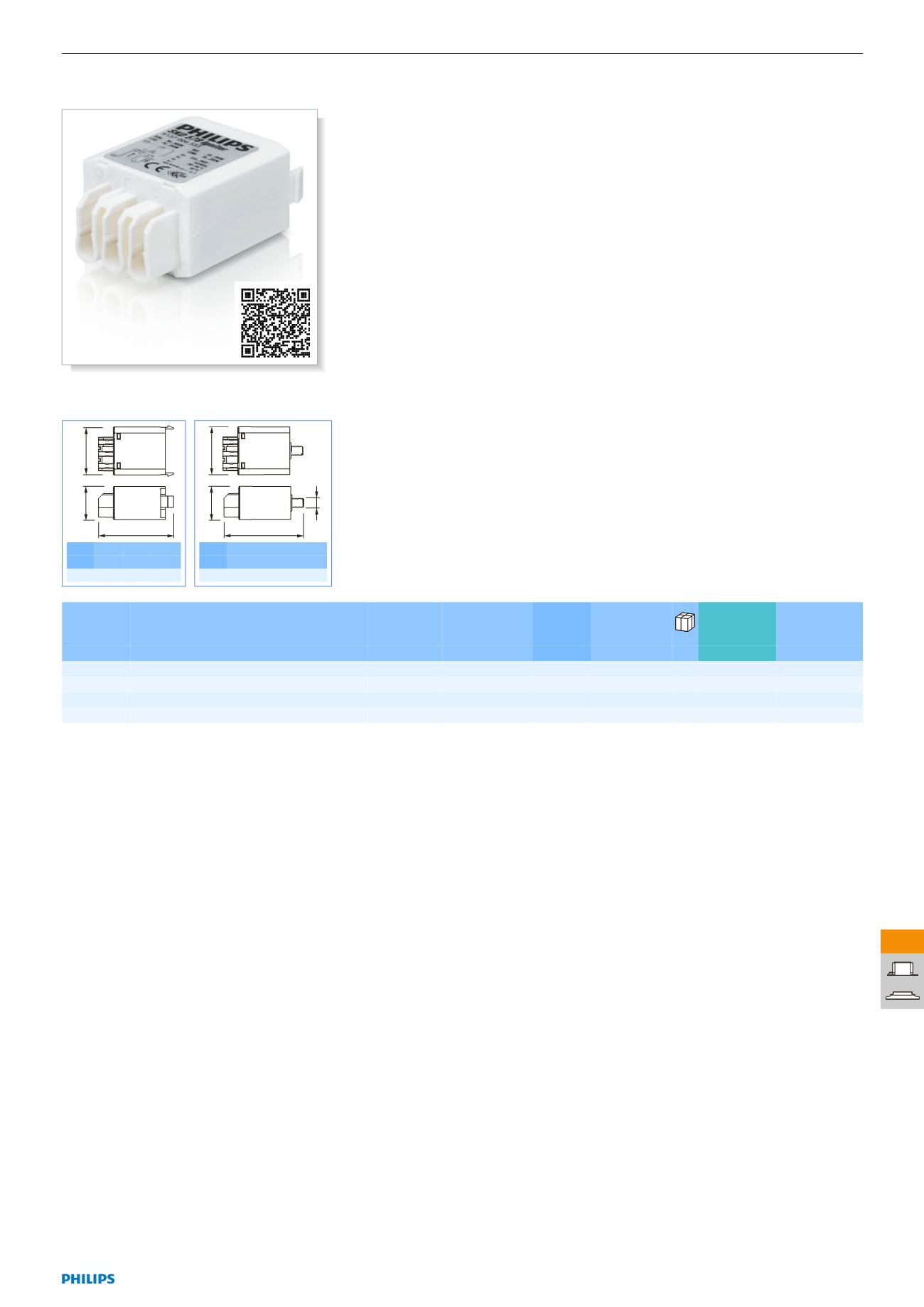

HID ignitors for MK4 semi-parallel systems
Compact ignitors for flexible luminaire design
HID ignitors for semi-parallel systems
Product Benefits
•Wide range of lamps covered by one ignitor
35-600 W
•Digital versions ensure longer lifetime than
series ignitors, and silent operation
•Smaller dimensions than predecessors mean
it fits more easily into compact luminaires
Product Features
•Designed to ensure maximum performance
with new MK4 ballasts
•Semi-parallel ignitor will only work in
semi-parallel circuits and must be matched
with the relevant ballast
•Ignitors equipped with screw terminal blocks
as standard
•Lightweight and compact products
•Current flows through ignitor only at lamp
start-up
Application
•Outdoor lighting
System
•Electromagnetic system requires ballast,
ignitor and capacitor
•Designed to work only in semi-parallel cir-
cuits: if ballasts with “L” in their description
(e. g. BSN 100 L307…) are used, SN(D)…
ignitors are required; if ballasts with “K” in
their description (e. g. BSN 100 K307…)
are used, SK(D)… ignitors are required.
Capacitor value to match system power can
be found on lamp/ballast combination sheet
•No ignitor needed for SON-I lamps
B1
A1
C1
Dim. A1 B1 C1
no. nom. nom. nom.
1 63.5 40.5 28
B1
A1
C1
M8
Dim. A1 B1 C1
no. nom. nom. nom.
2 67.5 40.5 28
Type Rated Ballast-Lamp Power/Rated
Lamptype
Line Voltage Line Frequency Dim. no. Packing type/
Packing
configuration
National
Order Code
Ordering
number
8727900...
(V) (Hz)
SK 578 35-600 SON/CDM/MH/HPI/HPA/CDO 220-240 50/60 1 1NO / 48 48 SK578 895681 00
SK 578-S 35-600 SON/CDM/MH/HPI/HPA/CDO 220-240 50/60 2 UNP / 20 20 SK578S 895704 00
SKD 578 35-600 SON/CDM/MH/HPI/HPA/CDO 220-240 50/60 1 1NO / 48 48 SKD578 895674 00
SKD 578-S 35-600 SON/CDM/MH/HPI/HPA/CDO 220-240 50/60 2 UNP / 20 20 SKD 578S 895698 00
