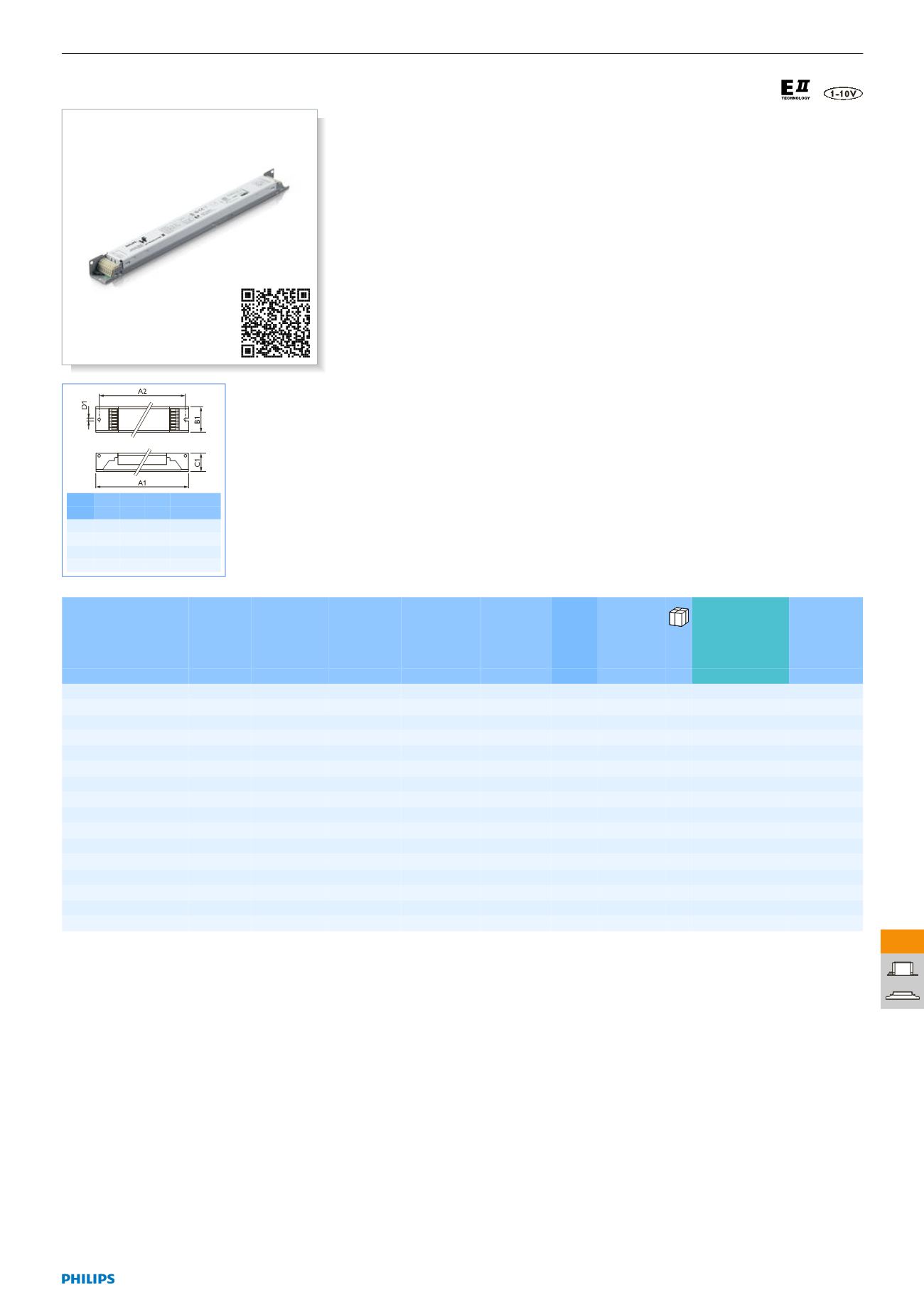

HF-Regulator II for TL5 lamps
Dim. A1 A2 B1 C1 D1
no. nom. nom. nom. nom. nom.
1 360 350 30 22 4.2
2 359 350 39 22 4.2
3 359 350 30 22 4.2
4 425 415 30 22 4.2
Product Description
•Flat, lightweight high-frequency electronic
regulating ballast, using 1-10 V protocol for
TL5 fluorescent lamps
Product Benefits
•The lamp power can be dimmed from 1
to 100% via the Analog control input (in
accordance with the 1-10 V industry standard)
•Compliant with European and Asian norms
and suitable for emergency lighting systems
•HF operation improves light quality, lamp
lifetime
•Combined with controls, additional energy
savings can be achieved
Product Features
•Programmed start: flicker-free ignition < 0.5
seconds and striation-free operation, no
stroboscopic e ects. Preheating the lamp
electrodes enables the lamps to be switched
on and o without reducing life
•Smart power ensures constant light,
independent of mains fluctuations
•Up to 60% reduction in energy consumption
by using automatic lighting control systems
•Stop circuit is activated within 5 seconds
in the event of lamp failure (safety stop),
and ballast resets automatically after lamp
replacement
Applications
•1-10 V installations with daylight linking
and/or movement detection (for energy
savings)
•1-10 V installations with remote control
systems (combining energy savings with
comfort)
•Installations with emergency back-up,
according to IEC 60598-2-22
Type Line
Voltage
Line
Frequency
Max ballast
on
MCB(16A
type B)
Lifetime 90%
surv.
@Tcaselife
Energy
E ciency
Index
Dim.
no.
Packing
type/
Packing
configu-
ration
National Order
Code
Ordering
number
8711500...
(V) (Hz) (x) (h)
HF-R 1x 14-35 TL5 EII 220-240 50/60 28 50,000 A1 1 UNP / 12 12 HFR11435TL5EII 911803 30
HF-R 2x 14-35 TL5 EII 220-240 50/60 12 50,000 A1 1 UNP / 12 12 HFR21435TL5EII 911780 30
HF-R 3x 14 TL5 EII 220-240 50-60 28 50,000 A1 2 UNP 10 HFR314TL5EII 913685 30
HF-R 4x 14 TL5 EII 220-240 50-60 28 50,000 A1 2 UNP 10 HFR414TL5EII 913647 30
HF-R 1x 24 TL5/PL-L EII 220-240 50/60 28 50,000 A1 3 UNP / 12 12 HFR124TL5EII 914668 30
HF-R 2x 24 TL5/PL-L EII 220-240 50/60 28 50,000 A1 3 UNP / 12 12 HFR224TL5EII 914729 30
HF-R 3x 24 TL5/PL-L EII 220-240 50-60 12 50,000 A1 2 UNP 10 HFR324TL5EII 913708 30
HF-R 4x 24 TL5/PL-L EII 220-240 50-60 12 50,000 A1 2 UNP 10 HFR424TL5EII 913746 30
HF-R 1x 39 TL5 EII 220-240 50/60 28 50,000 A1 3 UNP / 12 12 HFR139TL5EII 914682 30
HF-R 2x 39 TL5 EII 220-240 50/60 12 50,000 A1 3 UNP / 12 12 HFR239TL5EII 914743 30
HF-R 1x 49 TL5 EII 220-240 50/60 28 50,000 A1 1 UNP / 12 12 HFR149TL5II 909985 30
HF-R 2x 49 TL5 EII 220-240 50/60 12 50,000 A1 1 UNP / 12 12 HFR249TL5II 910035 30
HF-R 1x 54 TL5 EII 220-240 50/60 28 50,000 A1 1 UNP / 12 12 HFR154TL5II 910059 30
HF-R 2x 54 TL5 EII 220-240 50/60 12 50,000 A1 1 UNP / 12 12 HFR254TL5II 910080 30
HF-R 1x 80 TL5/PL-L EII 220-240 50/60 12 50,000 A1 1 UNP / 12 12 HFR180TL5/PLL 910110 30
HF-R 2x 80 TL5/PL-L EII 220-240 50/60 9 50,000 A1 4 UNP / 12 12 HFR280TL5/PLL 910653 30
