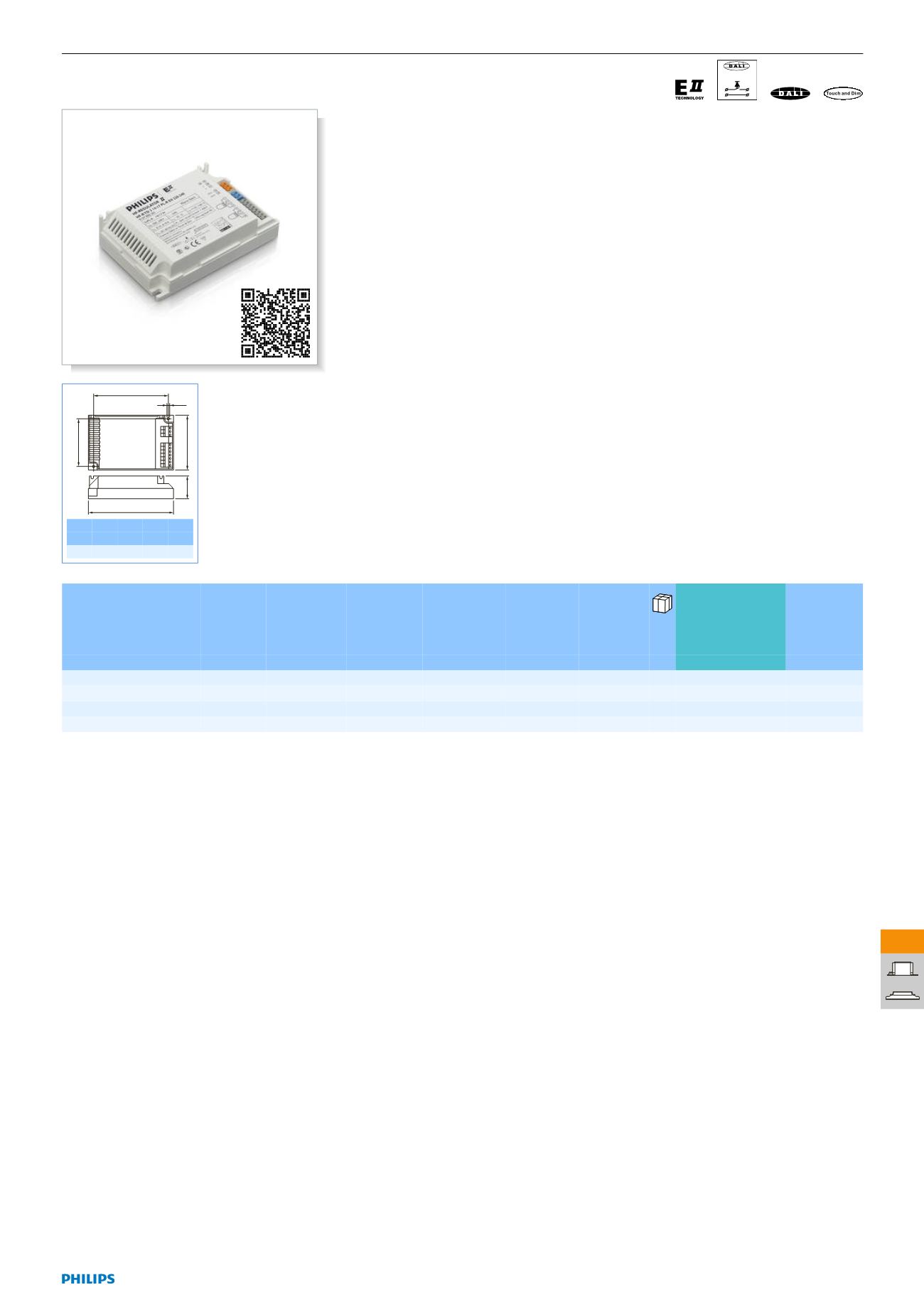

HF-Regulator II Touch DALI for PL-T, PL-C and PL-R lamps
Retractive push-to-make
switch
L LS
N N
A1
A2
B2 B1
C1
D1
A1 A2 B1 C1 D1
nom. nom. nom. nom. nom.
123 111 79 33 4.5
HF-Regulator II Touch DALI for PL-T
and PL-C lamps – Dimming: a next step in
energy saving
High-frequency electronic dimming ballast,
using DALI (Digital Addressable Lighting
Interface) or Touch and Dim push-button
protocol for (compact) fluorescent lamps
Product Benefits
•Low stand-by losses, together with
controlled dimming
•HF operation improves light quality, lamp
lifetime
•Combined with controls, additional energy
savings can be achieved
•Compliant with European and Asian norms
and suitable for emergency lighting systems
Product Features
•Programmed start: flicker-free ignition 0.5
seconds and striation-free operation, no
stroboscopic e ects. Preheating the lamp
electrodes enables the lamps to be switched
on and o without reducing life
•Smart power ensures constant light, inde-
pendent of mains fluctuations and dimming
from 1 to 100%
•Stop circuit is activated within 5 seconds
in the event of lamp failure (safety stop),
and ballast resets automatically after lamp
replacement
•Protected against excessive mains voltages,
incorrect connections and incorrect lamp
use
Applications
•Indoor, general and task lighting applications
in combination with lighting control systems
(personal control, daylight linking and/or
movement detection)
Type Line
Voltage
Line
Frequency
Max ballast
on
MCB(16A
type B)
Lifetime 90%
surv.
@Tcaselife
Energy
E ciency
Index
Packing
type/
Packing
configu-
ration
National Order
Code
Ordering
number
8711500...
(V) (Hz) (x) (h)
HF-R TD 1x 14-17 PL-R EII 220-240 50/60 28 50,000 A1 1NO / 12 12 HFRTD11417PLREI 91349430
HF-R TD 2x 14-17 PL-R EII 220-240 50/60 28 50,000 A1 1NO / 12 12 HFRTD21417PLREI 91346330
HF-R TD 1x 18 PL-T/C EII 220-240 50/60 28 50,000 A1 1NO / 12 12 HFRTD118PLTCEII 91344930
HF-R TD 2x 18 PL-T/C EII 220-240 50/60 28 50,000 A1 1NO / 12 12 HFRTD218PLTCEII 91342530
