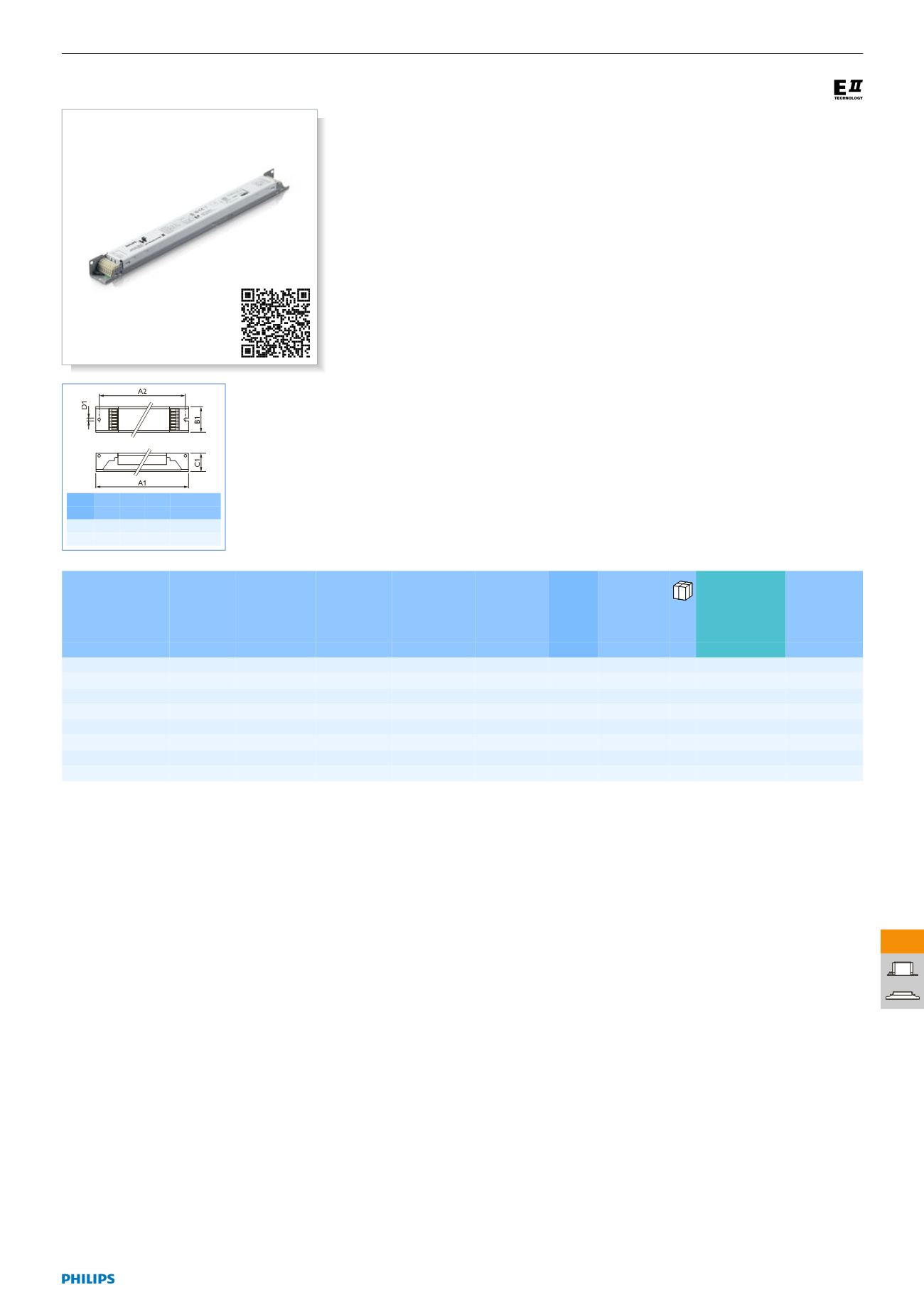

HF-Regulator II for TL-D lamps
Dim. A1 A2 B1 C1 D1
no. nom. nom. nom. nom. nom.
1 360 350 30 22 4.2
2 359 350 39 22 4.2
Product Description
•Flat, lightweight high-frequency electronic
regulating ballast, using 1-10 V protocol for
TL-D fluorescent lamps
Product Benefits
•The lamp power can be dimmed from 1
to 100% via the Analog control input (in
accordance with the 1-10 V industry standard)
•Compliant with European and Asian norms
and suitable for emergency lighting systems
•HF operation improves light quality, lamp
lifetime
•Combined with controls, additional energy
savings can be achieved
Product Features
•Programmed start: flicker-free ignition < 0.5
seconds and striation-free operation, no
stroboscopic e ects. Preheating the lamp
electrodes enables the lamps to be switched
on and o without reducing life
•Smart power ensures constant light,
independent of mains fluctuations.
•Up to 60% reduction in energy consumption
by using automatic lighting control systems
•Stop circuit is activated within 5 seconds
in the event of lamp failure (safety stop),
and ballast resets automatically after lamp
replacement
Applications
•1-10 V installations with daylight linking
and/or movement detection (for energy
savings)
•1-10 V installations with remote control
systems (combining energy savings with
comfort)
•Installations with emergency back-up,
according to IEC 60598-2-22
Type Line
Voltage
Line
Frequency
Max ballast
on
MCB(16A
type B)
Lifetime 90%
surv.
@Tcaselife
Energy
E ciency
Index
Dim.
no.
Packing
type/
Packing
configu-
ration
National Order
Code
Ordering
number
8711500...
(V) (Hz) (x) (h)
HF-R 1x 18 TL-D EII 220-240 50/60 28 50,000 A1 1 UNP / 12 12 HFR118TLDEII 91190230
HF-R 2x 18 TL-D EII 220-240 50/60 12 50,000 A1 1 UNP / 12 12 HFR218TLDEII 91192630
HF-R 3x 18 TL-D EII 220-240 50-60 28 50,000 A1 2 UNP 10 HFR318TLDEII 91376030
HF-R 4x 18 TL-D EII 220-240 50-60 12 50,000 A1 2 UNP 10 HFR418TLDEII 91366130
HF-R 1x 36 TL-D EII 220-240 50/60 28 50,000 A1 1 UNP / 12 12 HFR136TLDII 91013430
HF-R 2x 36 TL-D EII 220-240 50/60 12 50,000 A1 1 UNP / 12 12 HFR236TLDII 91015830
HF-R 1x 58 TL-D EII 220-240 50/60 28 50,000 A1 1 UNP / 12 12 HFR158TLDII 91017230
HF-R 2x 58 TL-D EII 220-240 50/60 12 50,000 A1 1 UNP / 12 12 HFR258TLDII 91019630
