Type Line Voltage Line Frequency Packing type/
Packing
configuration
National Order Code Ordering number
8727900...
(V) (Hz)
BHL 50/80 K407 230/240 50 1NO / 6 6 BHL5080K407 94007700
BHL 125 K307 230/240 50 1NO / 6 6 BHL125K307 94005300

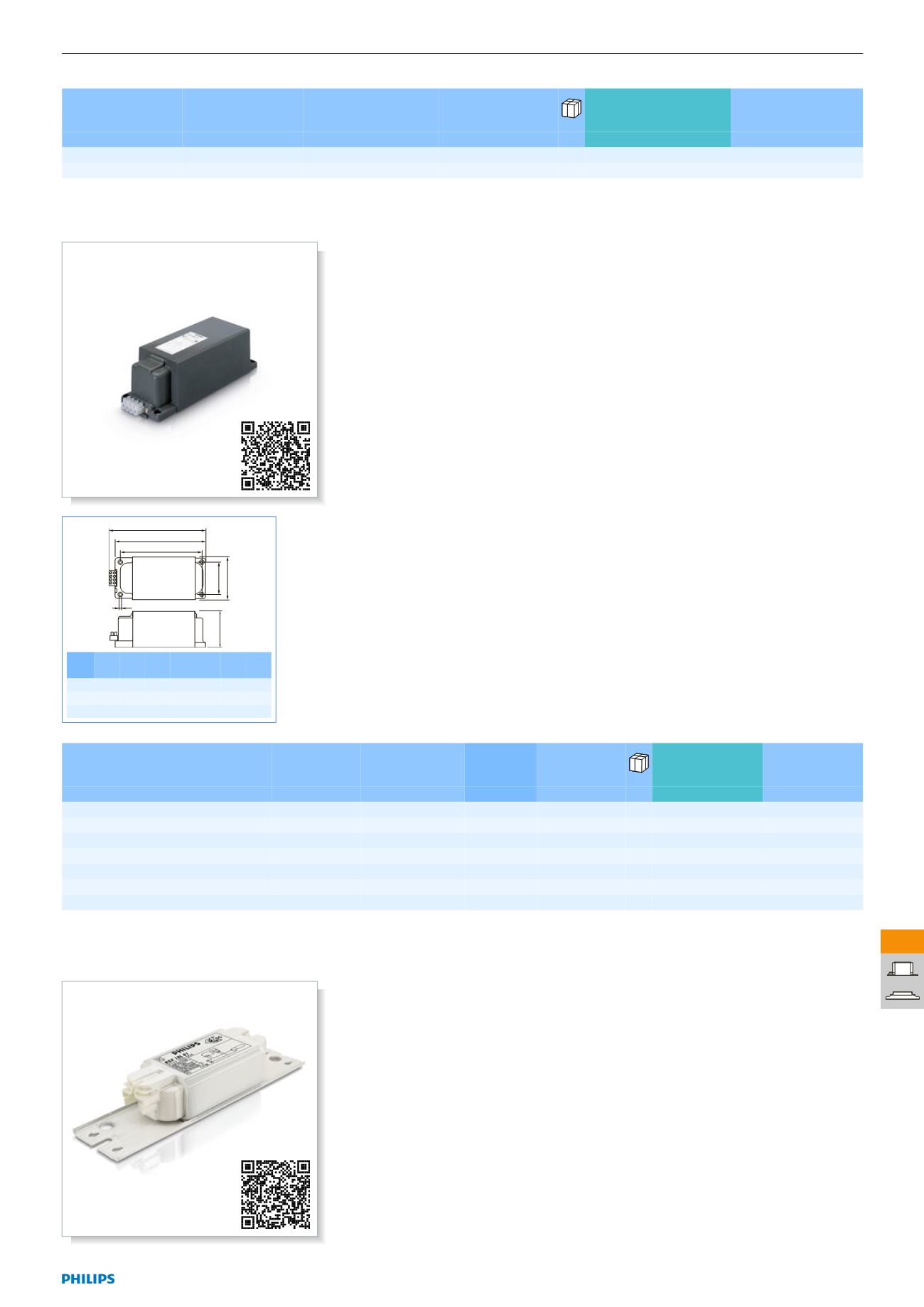

HID-HighPower for SON/MH/HPL/HPI
A1
A3
B2
C1
A2
B1
D1
Dim. A1 A2 A3 B1 B2 C1 D1
no. nom. nom. nom. nom. nom. nom. nom.
1 207 172 196 117 88 102 6.5
2 257 222 246 117 88 102 6.5
3 317 282 306 117 88 102 6.5
Long-lasting, reliable solution
Encapsulated ballasts for use with SON (T)
(Plus), HPL, HPI and MH lamps with rated
wattages of 1,000 W and above
Product Benefits
•Protected from overheating – outstanding
product lifetime of 15 years average
•Minimal watt losses thanks to orthocyclic
winding process
•Ideal for pole mounting
Product Features
•Excellent resistance to chemical impact,
humid conditions and environmental stress
crack
•Class I rated (i. e. with earthing facility)
•Equipped with screw terminal blocks as
standard
•Separate earth terminal (HID ‘Heavy Duty’)
•Ballasts for alternative mains voltages/
frequencies available upon request
Applications
•Outdoor lighting (most popular application
areas: sports and area lighting)
System
•Electromagnetic system requires ballast,
ignitor and capacitor
•Ballast power 1,000 W and above – series
or pararell circuit can be applied. Ignitor and
capacitor value according to system power
can be found in lamp-ballast combination
sheet
Type Line Voltage Line Frequency Dim. no. Packing type/
Packing
configuration
National Order
Code
Ordering
number
8711500...
(V) (Hz)
HID-HighPower BHL 1000 L78 HP-207 230/240 50 1 UNP / 1 1 BHL1000L78 06237600
BSN 1000 L78 HP-257 230/240 50 2 UNP / 1 1 BSN1000L78 06236900
HID-HighPower BMH 1800 L78 HP-317 230/240 50 3 UNP / 1 1 BMH1800L78 05990100
HID-HighPower BHL 2000 L78 HP-317 230/240 50 3 1NO / 1 1 BHL2000L78 06385400
HID-HighPower BHD 2000 L76 HP-317 380-415 50 3 UNP / 1 1 BHD2000L76 74276600
HID-HighPower BHD 2000 L77 HP-317 400-430 50 3 UNP / 1 1 BHD2000L77 53817800
HID-HighPower BHL 2000 L76 HP-317 380-415 50 3 UNP / 1 1 BHL2000L76 06384700
HID-Basic BSX for SOX
Long-lasting, reliable solution
Impregnated electromagnetic copper/iron
ballasts for use with an external ignitor for
SOX and SOX-E lamps
Product Benefits
•Compact dimensions and lightweight – easy
to fit in linear luminaires
•Simple installation
•Long-lasting reliable solution protected from
overheating
Product Features
•Based on magnetic fluorescent ballast design
•Equipped with double-insert contacts
•Minimal watt losses thanks to orthocyclic
winding process
•Ballasts for alternative mains voltages/
frequencies available upon request
Applications
•Outdoor lighting (most popular application:
road lighting)
System
•Electromagnetic system requires ballast,
ignitor and capacitor
•To be used with relevant SX. . ignitor.
Capacitor value to match system power can
be found on lamp/ballast combination sheet
•Climatic suitability: restricted to built-in
situations where relative humidity is limited
