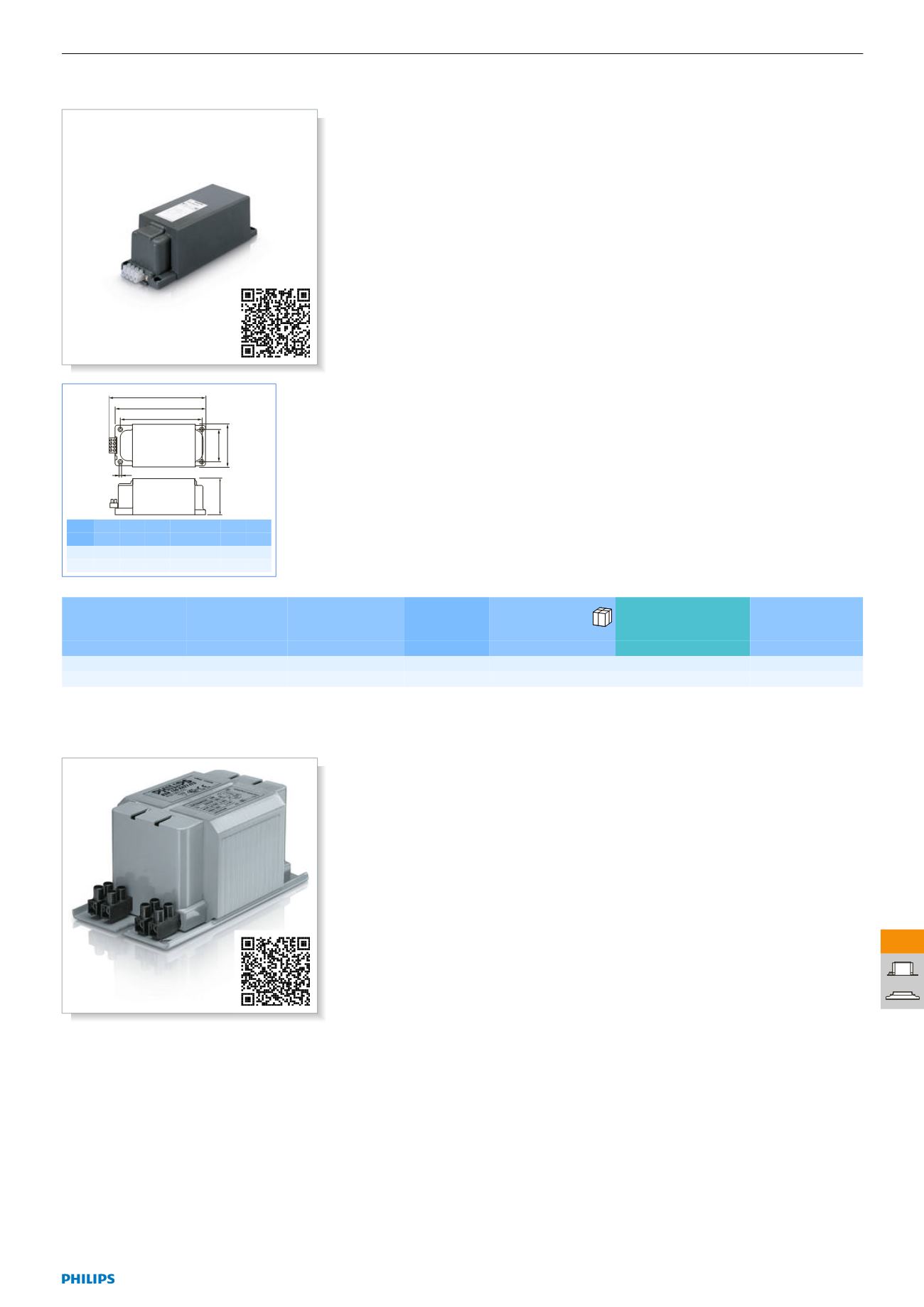

HID-High Power Basic for SON/MH/HPL
A1
A3
B2
C1
A2
B1
D1
Dim. A1 A2 A3 B1 B2 C1 D1
no. nom. nom. nom. nom. nom. nom. nom.
1 228 218 246 126 88 112 7.0
2 317 284 317 126 106 111 6.5
Long-lasting, reliable solution
Basic aluminum/iron ballasts for use with
SON (T) (Plus), HPL, HPI and MH lamps with
rated wattages of 1,000 W and above• Basic
aluminum/iron ballasts for use with SON (T)
(Plus), HPL, HPI and MH lamps with rated
wattages of 1,000 W and above
Product Benefits
•Cost-e ective high-performance solution
•Protected from overheating; outstanding
product lifetime – 15 years on average
•Minimal watt losses, thanks to orthocyclic
winding process
Product Features
•Aluminum wire ballasts exceeding copper
performance
•Equipped as standard with screw terminal
blocks
•Separate earth terminal
•Ballasts for alternative mains voltages/
frequencies available on request
Applications
•Outdoor lighting (most popular application
areas: sports and area lighting)
System
•Electromagnetic system demands ballast,
ignitor and capacitor
•Series or semi-parallel or parallel circuit can
be applied for HP Basic Ballasts. Ignitor and
capacitor value according to system power
can be found in lamp-ballast combination
sheet
Type Line Voltage Line Frequency Dim. no. Packing type/
Packing
configuration
National Order Code Ordering number
8718291...
(V) (Hz)
BSN 1000 L307-A 230/240 50 1 1NO / 1 1 BSN1000L307 11853400
BMH 2000 L5018-A 380-415 50 2 1NO / 1 1 BMH2000L5018 11851000
HID-Basic BSN/BMH MK4 semi-parallel for SON/CDO/CDM/MH/HPI
Long-lasting, reliable solution
Impregnated electromagnetic copper ballasts
for use with an external semi-parallel ignitor
for CDM, CDO, MH, HPI (Plus) and SON
lamps
Product Benefits
•System design: one ignitor SKD578 can
trigger all lamps from 35 to 600 W
•Long-lasting reliable solution protected from
overheating; better for hot environments
than its predecessors; extended warranty
•Minimal watt losses thanks to orthocyclic
winding process
Product Features
•Improved thermal features – much cooler
ballast
•All ballasts are equipped with ThermoSwitch
for protection against end-of-lamp-life
phenomena
•Ballast can also be used in combination with
series (superimposed) ignitor
•Equipped with screw terminal blocks as
standard; insert contacts available upon
request
•Ballasts for alternative mains voltages/
frequencies available upon request
Application
•Outdoor lighting
•Horticulture
System
•Electromagnetic system requires ballast,
ignitor and capacitor
•Semi-parallel circuit: if ballasts with “L” in
their description (e. g. BSN 100 L307…)
are used, SN(D)… ignitors are required; if
ballasts with “K” in their description (e. g.
BSN 100 K307…) are used, SK(D)… ignitors
are required. Capacitor value to match
system power can be found on lamp/ballast
combination sheet.
•Series circuit: all ballasts are designed to
work with series ignitors
•No ignitor needed for SON-I lamps
