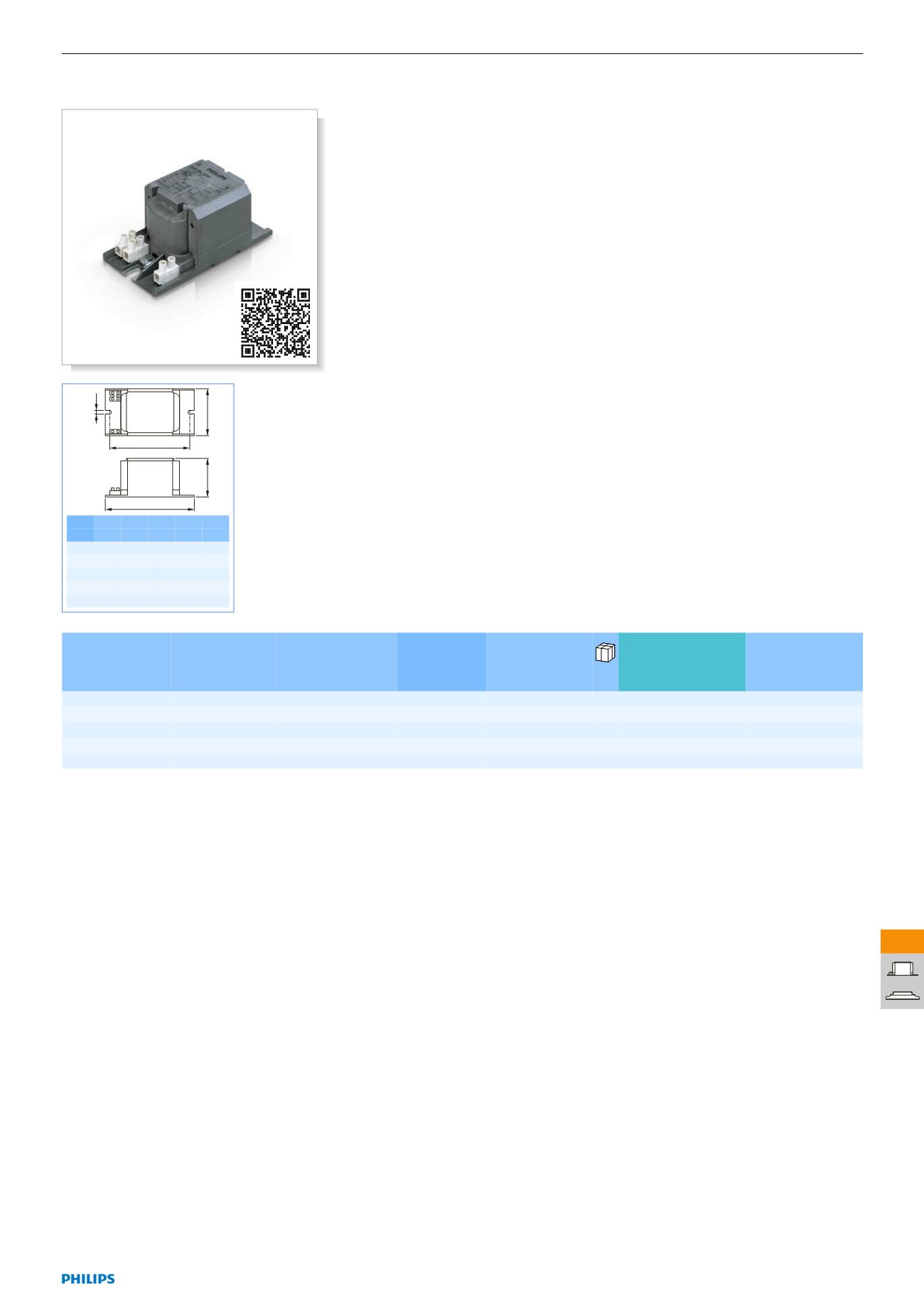

HID-HeavyDuty BSN semi-parallel for SON/CDO/MH/HPI
D1
A1
B1
C1
A2
Dim. A1 A2 B1 C1 D1
no. nom. nom. nom. nom. nom.
1 118 103.0 65 53 6.2
2 123 108.0 65 53 6.2
3 134 115.5 81 66 6.2
4 160 141.5 81 66 6.2
5 166 147.5 102 84 6.2
Long-lasting, reliable solution
Encapsulated electromagnetic copper/iron
ballasts for use with an external semi-parallel
ignitor for CDM, CDO, MH, HPI (Plus) and
SON lamps
Product Benefits
•Excellent resistance to chemical impact,
humid conditions and environmental stress
crack
•Long-lasting reliable solution – outstanding
product lifetime of 15 years average
•Minimal watt losses thanks to orthocyclic
winding process
•Control gear can be installed remotely
Product Features
•Encapsulated with thermoplastic polyester
resin, reinforced with glass fiber
•Equipped with screw terminal blocks as
standard; insert contacts available upon
request
•Ballasts for alternative mains voltages/
frequencies available upon request
•Separate earth terminal (HID ‘Heavy Duty’)
Applications
•Outdoor lighting (most popular application:
road and tunnel lighting)
System
•Electromagnetic system requires ballast,
ignitor and capacitor
•Semi-parallel circuit: if ballasts with “L” in
their description (e. g. BSN 100 L307…)
are used, SN(D)… ignitors are required; if
ballasts with “K” in their description (e. g.
BSN 100 K307…) are used, SK(D)… ignitors
are required. Capacitor value to match
system power can be found on lamp/ballast
combination sheet
•Series circuit: all ballasts are designed to
work with series ignitors
•No ignitor needed for SON-I lamps
Type Line Voltage Line Frequency Dim. no. Packing type/
Packing
configuration
National Order Code Ordering number
8711500...
(V) (Hz)
BSN 70 L34-TS 240 50 1 UNP / 6 6 BSN70L34TS 05970331
BSN 100 L34-TS 240 50 2 UNP / 6 6 BSN100L34TS 05974131
BSN 150 L34-TS 240 50 3 UNP / 6 6 BSN150L34TS 05962830
BSN 250 L34-TS 240 50 4 UNP / 6 6 BSN250L34TS 05966630
BSN 400 L34-TS 240 50 5 UNP / 4 4 BSN400L34TS 05978930
