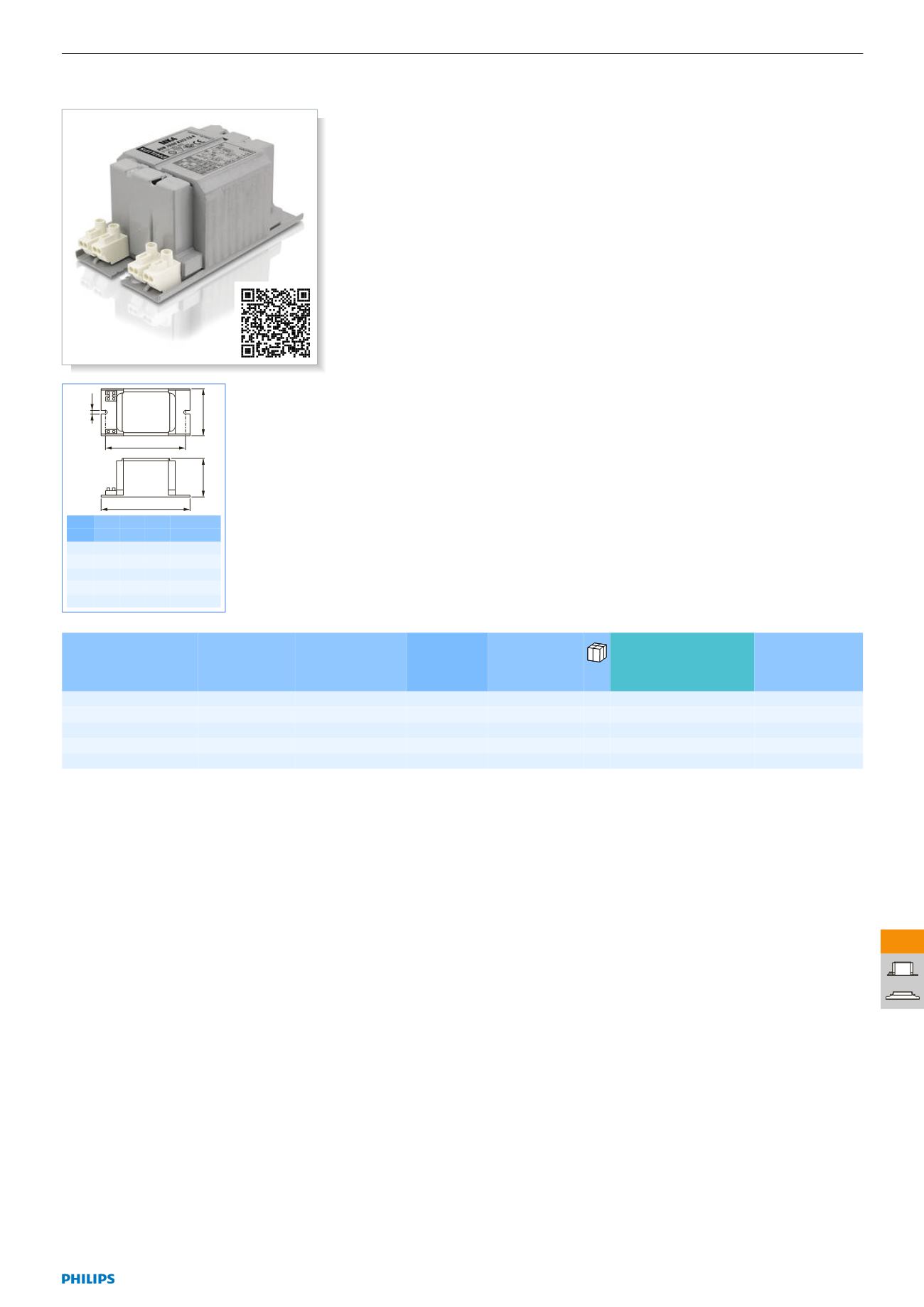

HID-Basic BSN/BMH series multi-wattage for SON/CDO/CDM/MH/HPI
D1
A1
B1
C1
A2
Dim. A1 A2 B1 C1 D1
no. nom. nom. nom. nom. nom.
1 118 94 61 52 6.2
2 123 98 61 52 6.2
3 160 139 76 65 6.2
4 134 113 76 65 6.3
5 166 97 83
Long-lasting, reliable solution
Impregnated electromagnetic copper/iron
double-wattage ballasts for use with an
external series (superimposed) ignitor for
CDO, MH, HPI (Plus) and SON lamps
Product Benefits
•Up to 40% energy saving using power-
reduction controllers
•Minimal watt losses thanks to orthocyclic
winding process
•Long-lasting reliable solution protected from
overheating
Product Features
•Possibility of dimming with an external
controller
•Multi-wattage ballasts can be used only in
series circuits
•Equipped with screw terminal blocks as
standard; insert contacts available upon
request
•Earthing-while-mounting facility
•Ballasts for alternative mains voltages/
frequencies available upon request
Applications
•Outdoor lighting
System
•Electromagnetic system requires ballast,
ignitor and capacitor
•Series circuit: all ballasts are designed to
work with series ignitors – SUD…(Philips)
or any other series ignitors
Type Line Voltage Line Frequency Dim. no. Packing type/
Packing
configuration
National Order Code Ordering number
8727900...
(V) (Hz)
BSN 70/50 K407-TS 230/240 50 1 1NO / 6 6 BSN5070K407TS 94047300
BSN 100/70 K407-TS 230/240 50 2 1NO / 6 6 BSN70100K407TS 94053400
BSN 150/250 K407-TS 230/240 50 3 1NO / 2 6 BSN150250K407TS 94092300
BSN 150/100 K407-TS 230/240 50 4 1NO / 6 6 BSN100150K407TS 94068800
BSN 400/250 K407-TS 230/240 50 5 1NO / 2 2 BSN250400K407TS 94086200
