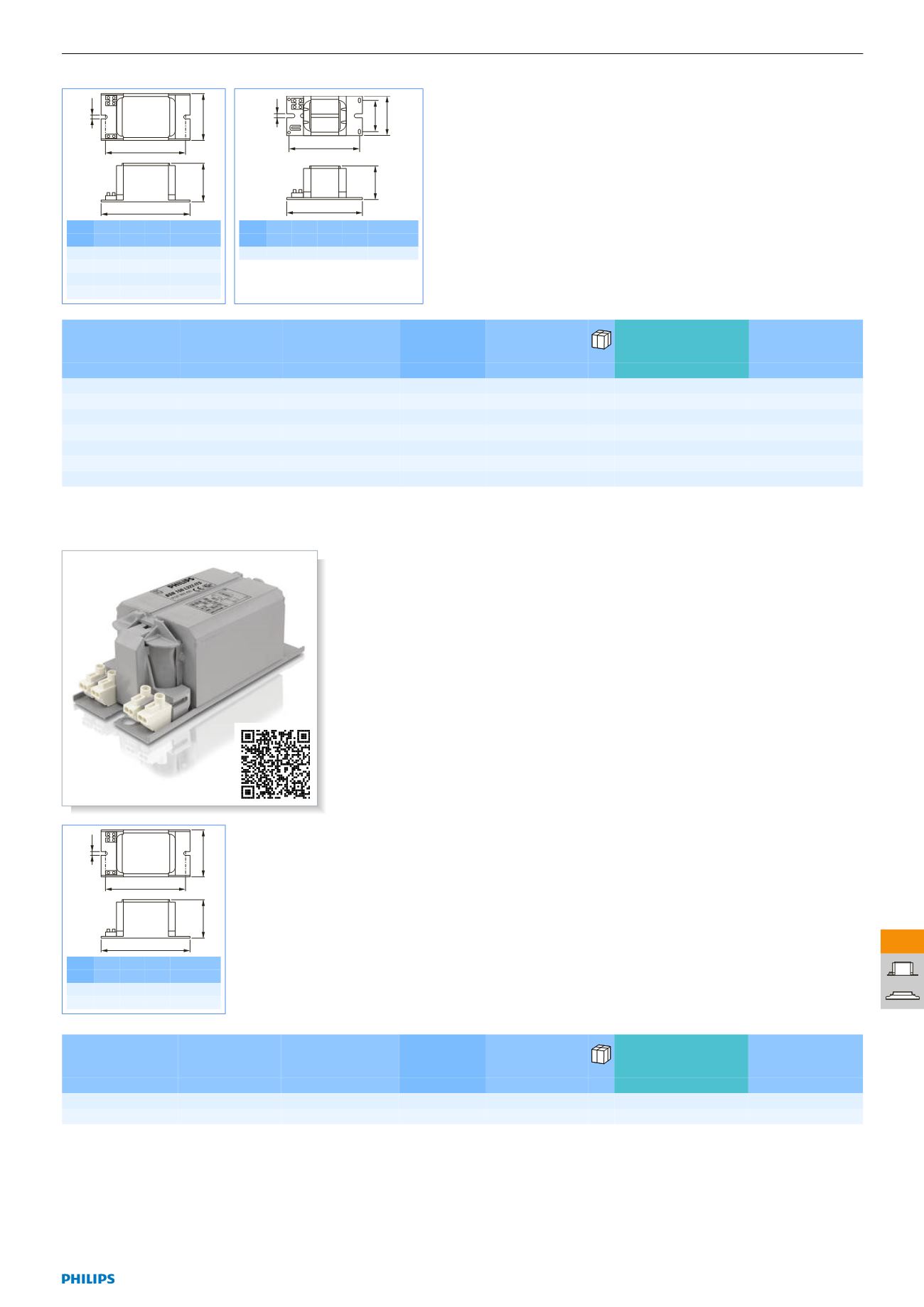

D1
A1
B1
C1
A2
Dim. A1 A2 B1 C1 D1
no. nom. nom. nom. nom. nom.
1 118 94 61 52 6.2
2 123 98 61 52 6.2
3 134 113 76 65 6.2
4 160 139 76 65 6.2
A2
A1
B1
C1
D1
B2
Dim. A1 A2 B1 B2 C1 D1
no. nom. nom. nom. nom. nom. nom.
5 166 145 97 78.5 83 6.5
Type Line Voltage Line Frequency Dim. no. Packing type/
Packing
configuration
National Order Code Ordering number
8727900...
(V) (Hz)
BSN 50 K407-ITS 230/240 50 1 UNP / 6 6 BSN50K407ITS 88693100
BSN 70 K407-ITS 230/240 50 1 1NO / 6 6 BSN70K407ITS 88694800
BSN 100 K407-ITS 230/240 50 2 UNP / 6 6 BSN100K407ITS 88695500
BSN 150 K407-ITS 230/240 50 3 UNP / 6 6 BSN150K407ITS 88698600
BSN 250 K407-ITS 230/240 50 4 UNP / 6 6 BSN250K407ITS 88702000
BSN 400 K407-ITS 230/240 50 5 UNP / 2 2 BSN400K407ITS 88704400
BSN 600 K302-ITS 230 50 5 UNP / 2 2 BSN600K302ITS 88705100
HID-Basic BSN/BMH semi-parallel for SON/CDO/CDM/MH/HPI
D1
A1
B1
C1
A2
Dim. A1 A2 B1 C1 D1
no. nom. nom. nom. nom. nom.
1 118 94 61 52 6.2
2 118 98 61 53 6.2
Long-lasting, reliable solution
Impregnated electromagnetic copper ballasts
for use with an external semi-parallel ignitor
for CDM, CDO, MH, HPI (Plus) and SON
lamps
Product Benefits
•Long-lasting reliable solution protected from
overheating
•Minimal watt losses thanks to orthocyclic
winding process
•Control gear can be installed remotely
Product Features
•All ballasts are equipped with ThermoSwitch
for protection against end-of-lamp-life
phenomena
•Ballast can also be used in combination with
series (superimposed) ignitor
•Equipped with screw terminal blocks as
standard; insert contacts available upon
request
•Earthing-while-mounting facility
•Ballasts for alternative mains voltages/
frequencies available upon request
Applications
•Outdoor lighting
•Horticulture
System
•Electromagnetic system requires ballast,
ignitor and capacitor
•Semi-parallel circuit: if ballasts with “L” in
their description (e. g. BSN 100 L307…)
are used, SN(D)… ignitors are required; if
ballasts with “K” in their description (e. g.
BSN 100 K307…) are used, SK(D)… ignitors
are required. Capacitor value to match
system power can be found on lamp/ballast
combination sheet
•Series circuit: all ballasts are designed to
work with series ignitors
•No ignitor needed for SON-I lamps
Type Line Voltage Line Frequency Dim. no. Packing type/
Packing
configuration
National Order Code Ordering number
8727900...
(V) (Hz)
BMH 35 K407-ITS 230/240 50 1 1NO / 6 6 BMH35K407ITS 94021300
BMH 70 K407-ITS 230/240 50 2 1NO / 6 6 BMH70K407ITS 94027500
