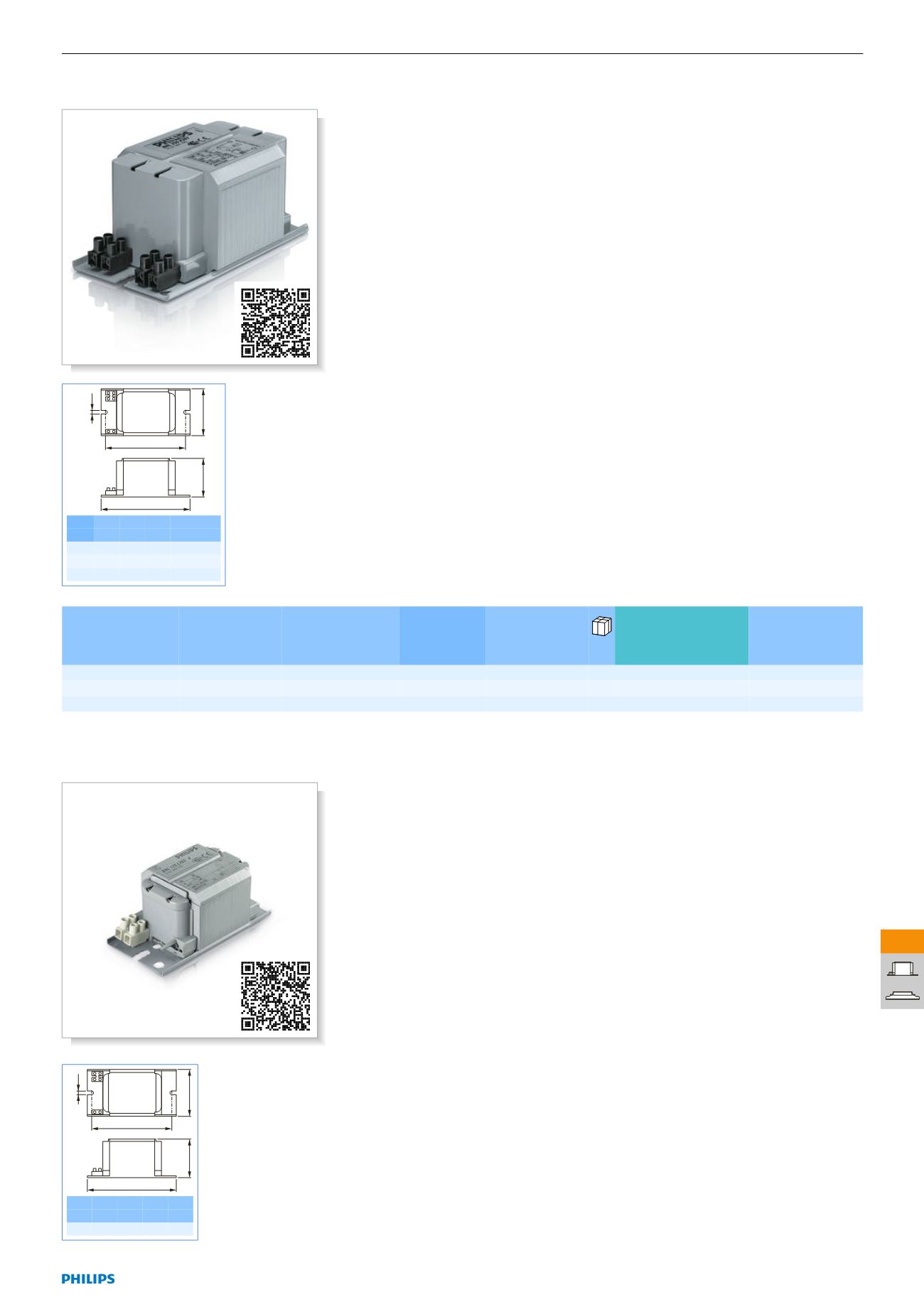

HID-Basic BHL MK4 for HPL/HPI
D1
A1
B1
C1
A2
Dim. A1 A2 B1 C1 D1
no. nom. nom. nom. nom. nom.
1 118 94 61 52 6.2
2 134 113 76 65 6.2
3 160 139 76 65 6.2
Long-lasting, reliable solution
Impregnated electromagnetic copper/iron
ballasts for HPL, HPI (Plus) and SON-H lamps
Product Benefits
•Long-lasting reliable solution protected from
overheating; better for hot environments
than its predecessors; extended warranty
•Minimal watt losses thanks to orthocyclic
winding process
•Control gear can be installed remotely
Product Features
•Improved thermal features – much cooler
ballast
•Ballasts designed for mercury lamps (HPL)
without using an ignitor can also be used
with HPI lamps with an ignitor
•Equipped with screw terminal blocks as
standard; insert contacts available upon
request
•Earthing-while-mounting facility
•Ballasts for alternative mains voltages/
frequencies available upon request
Application
•Outdoor lighting
System
•Electromagnetic system requires ballast,
ignitor and capacitor
•Mercury lamps (HPL) no ignitor needed.
Capacitor value to match system power can
be found on lamp/ballast combination sheet
•Metal-halide lamps (HPI) to be used with
SI51 ignitor. Capacitor value to match
system power can be found on lamp/ballast
combination sheet.
Type Line Voltage Line Frequency Dim. no. Packing type/
Packing
configuration
National Order Code Ordering number
8727900...
(V) (Hz)
BHL 80/125 K407 230/240 50 1 1NO / 6 6 BHL80125K407 94013800
BHL 250 K307 230/240 50 2 UNP / 6 6 BHL250K307 88701300
BHL 400 K307 230/240 50 3 UNP / 6 6 BHL400K307 88703700
HID-Basic BHL for HPL/HPI
Long-lasting, reliable solution
Impregnated electromagnetic copper/iron
ballasts for HPL, HPI (Plus) and SON-H lamps
Product Benefits
•Long-lasting reliable solution
•Minimal watt losses thanks to orthocyclic
winding process
•Control gear can be installed remotely
Product Features
•Ballasts designed for mercury lamps (HPL)
without using an ignitor can be also used
with HPI lamps together with an ignitor
•Equipped with screw terminal blocks as
standard; insert contacts available upon
request
•Earthing-while-mounting facility
•Ballasts for alternative mains voltages/
frequencies available upon request
Applications
•Outdoor lighting
System
•Electromagnetic system requires ballast,
ignitor and capacitor
•Mercury lamps (HPL) ? no ignitor needed.
Capacitor value to match system power can
be found on lamp/ballast combination sheet
•Metal-halide lamps (HPI) to be used with
SI51 ignitor. Capacitor value to match
system power can be found on lamp/ballast
combination sheet
D1
A1
B1
C1
A2
A1 A2 B1 C1 D1
nom. nom. nom. nom. nom.
118 94 61 52 6.2
