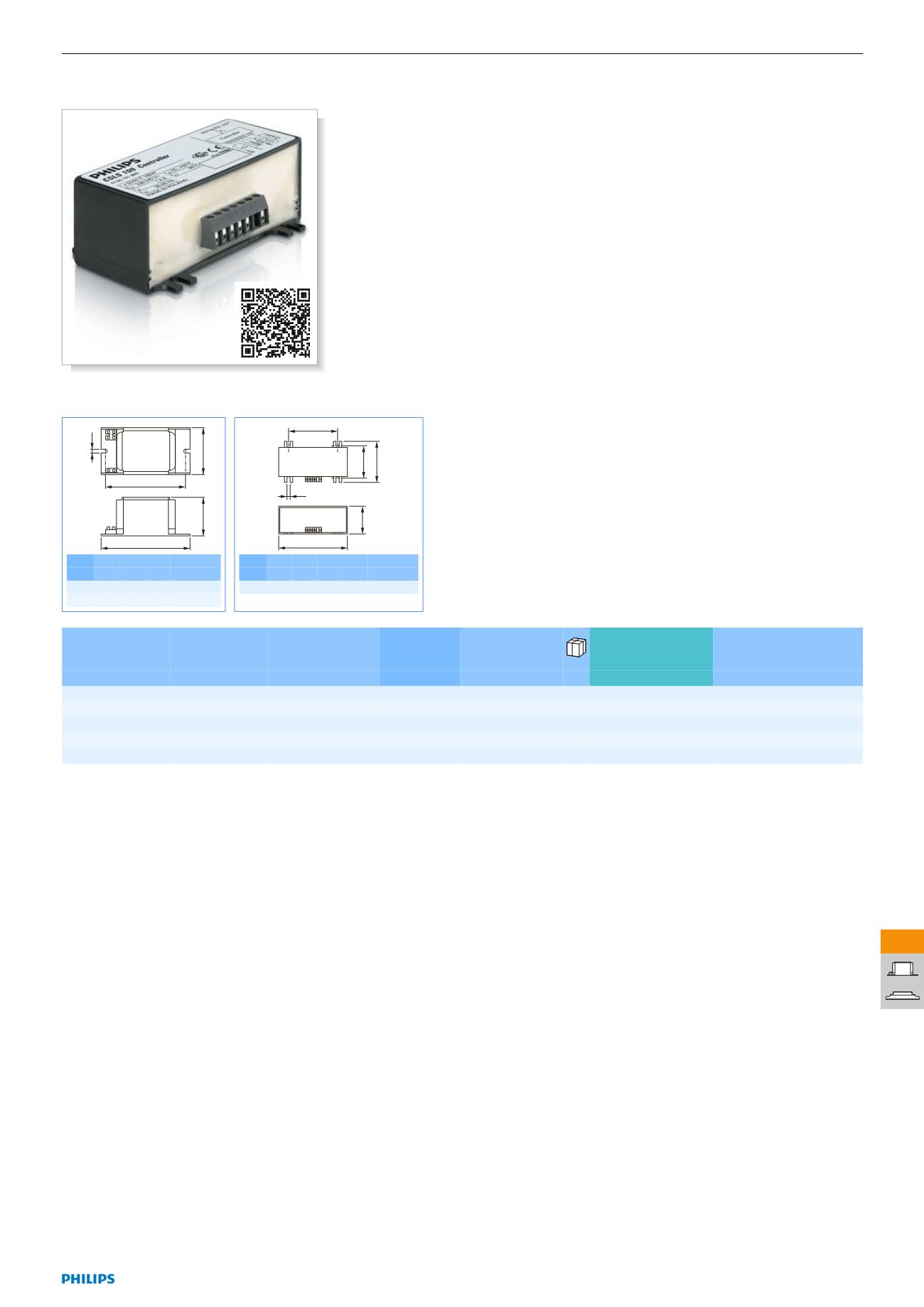

Gear for SDW-T lamps
Product Description
•CSLS electronic control unit with impreg-
nated (HID "BASIC") or encapsulated (HID
"Heavy Duty") electromagnetic ballasts
Product Benefits
•Electronic control unit ensures reliable
starting and stabilizes lamp power for
optimum performance (minimum colour
deviation)
•Simple installation and cabling
Product Features
•Ballasts and electronic control units
equipped with screw terminal blocks; other
contact possibilities for
•Earthing-while-mounting facility (HID
‘BASIC’ ballasts), separate earth terminal
(HID ‘Heavy Duty’)
Applications
•Similar to those of the related lamps
•Climatic suitability:
-CSLS + HID "BASIC": restricted to built-in
situations under normal conditions
-CSLS + HID "Heavy Duty": use in lu-
minaires under humid conditions (not
drip-proof )
Warnings & Safety
•Climatic suitability CSLS and HID BASIC:
restricted to built in situations under normal
conditions
•Climatic suitability CSLS and HID Heavy
Duty: use in luminaires under humid
conditions (not drip-proof )
D1
A1
B1
C1
A2
Dim. A1 A2 B1 C1 D1
no. nom. nom. nom. nom. nom.
1 123 98 61 52 6.2
2 118 94 61 52 6.2
A1
A2
B1
C1
D1
B2
Dim. A1 A2 B1 B2 C1 D1
no. nom. nom. nom. nom. nom. nom.
3 98 70 58.5 46 39.5 4.5
Type Line Voltage Line Frequency Dim. no. Packing type/
Packing
configuration
National Order Code Ordering number
(V) (Hz)
BSL 100 K307-TS 230/240 50 1 1NO / 6 6 BSL100K307TS 8727900 94058900
BSL 50 K307-TS 230/240 50 2 1NO / 6 6 BSL50K307TS 8727900 94039800
CSLS 100 220-240 50/60 3 UNP / 18 18 CSLS100 8711500 90870430
CSLS 35 220-240 50/60 3 UNP / 18 18 CSLS35 8711500 91112430
CSLS 50 220-240 50/60 3 UNP / 18 18 CSLS50 8711500 90808730
