Presentation
(
continued)
When a
TSX ISP Y101
weighing module is integrated in a Premium PLC it is
possible to go beyond the scope of a simple weighing application. The PLC
manages not only the whole of the weighing environment but also the whole of the
machine or the industrial process associated with the weighing system.
In a Premium configuration, the number of
TSX ISP Y101
weighing modules must be
added to the other application-specific modules (
TSX SCY 21601
communication,
TSX CTY
counting,
TSX CAY/CSY
axis control and
TSX CFY
motion control).
The maximum number of
TSX ISP Y101
weighing modules is:
b
Premium Unity configurations (one application-specific channel per weighing
module):
v
8
weighing modules with
TSX 57 1
p
processors
v
24
weighing modules with
TSX 57 2
p
processors
v
32
weighing modules with
TSX 57 3
p
processors
v
64
weighing modules with
TSX 57 4
p
/
5
p
/
6
p
processors
b
Premium PL7 configurations (two application-specific channels per weighing
module):
v
4
weighing modules with
TSX 57 1
p
processors
v
12
weighing modules with
TSX 57 2
p
processors
v
16
weighing modules with
TSX 57 3
p
processors
v
32
weighing modules with
TSX 57 4
p
/
5
p
/
6
p
processors

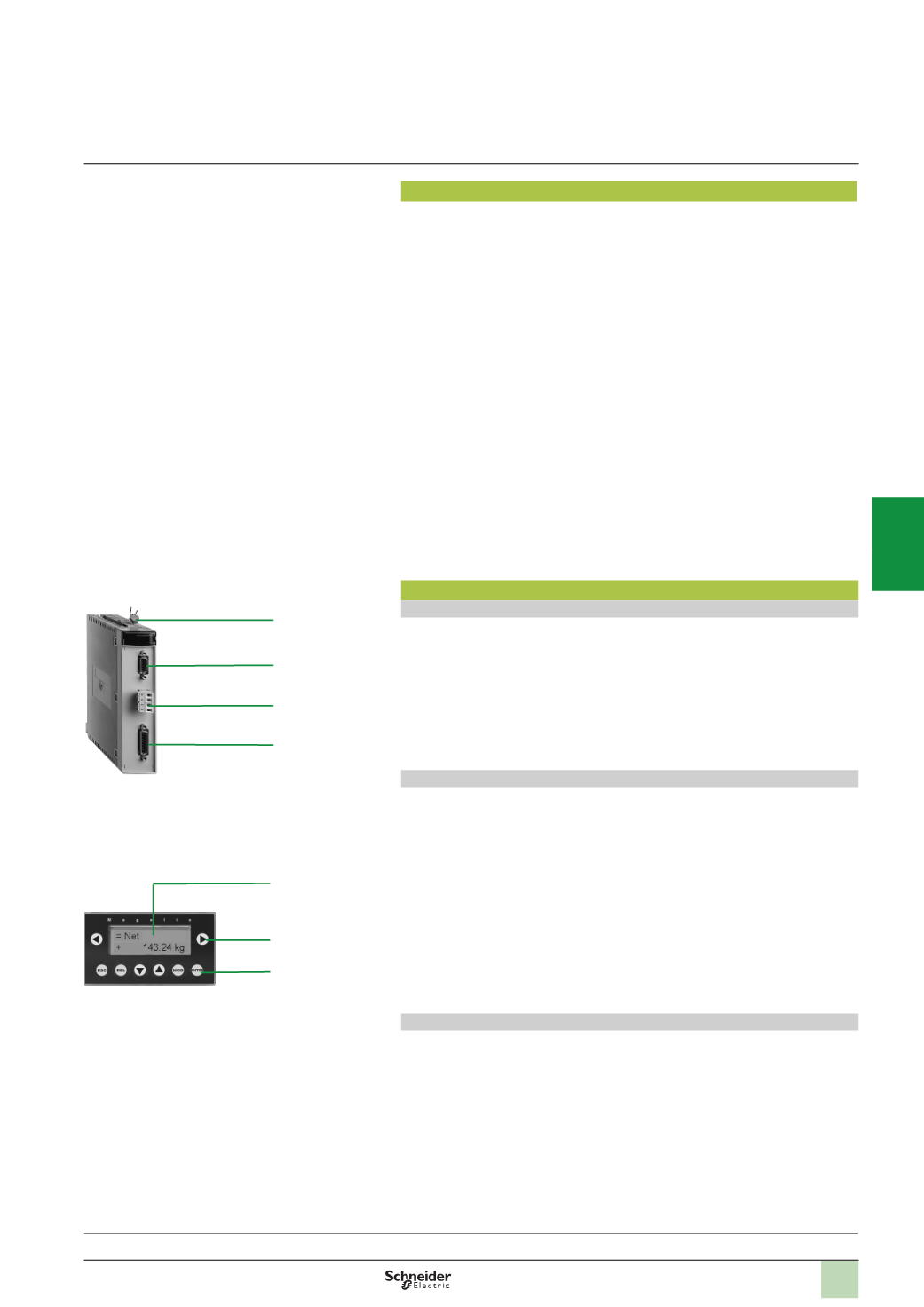

Description
Weighing module
The front panel of the
TSX ISP Y101
weighing module comprises:
1
A 9-way female SUB-D connector for the RS 485 serial link to the display unit
2
Screw terminals for connecting 2 discrete reflex outputs (outputs used with
threshold detection)
3
A 15-way female SUB-D connector for the measurement input channel (50
measurements per second, from 1 to 8 load cells)
4
Optional module sealing device
Remote indicator
Weight values are displayed on a
TSX XBT N410
display unit (supplied with the
TSX ISP Y121 unit). The display unit is preconfigured.
It has the following on the front panel:
1
A back-lit LCD display with 4 lines of 20 characters (height 4.34 mm)
2
Two non-customizable command or contextual link keys
3
6
service keys
The rear panel comprises:
v
A removable screw terminal block for the 24 V
c
external power supply
v
A25-way female SUB-D connector for connection to the
TSX ISPY101
weighing
module (30 metres maximum)
Strain gauge load cells and connection accessories
Please consult our Customer Care Centre.
