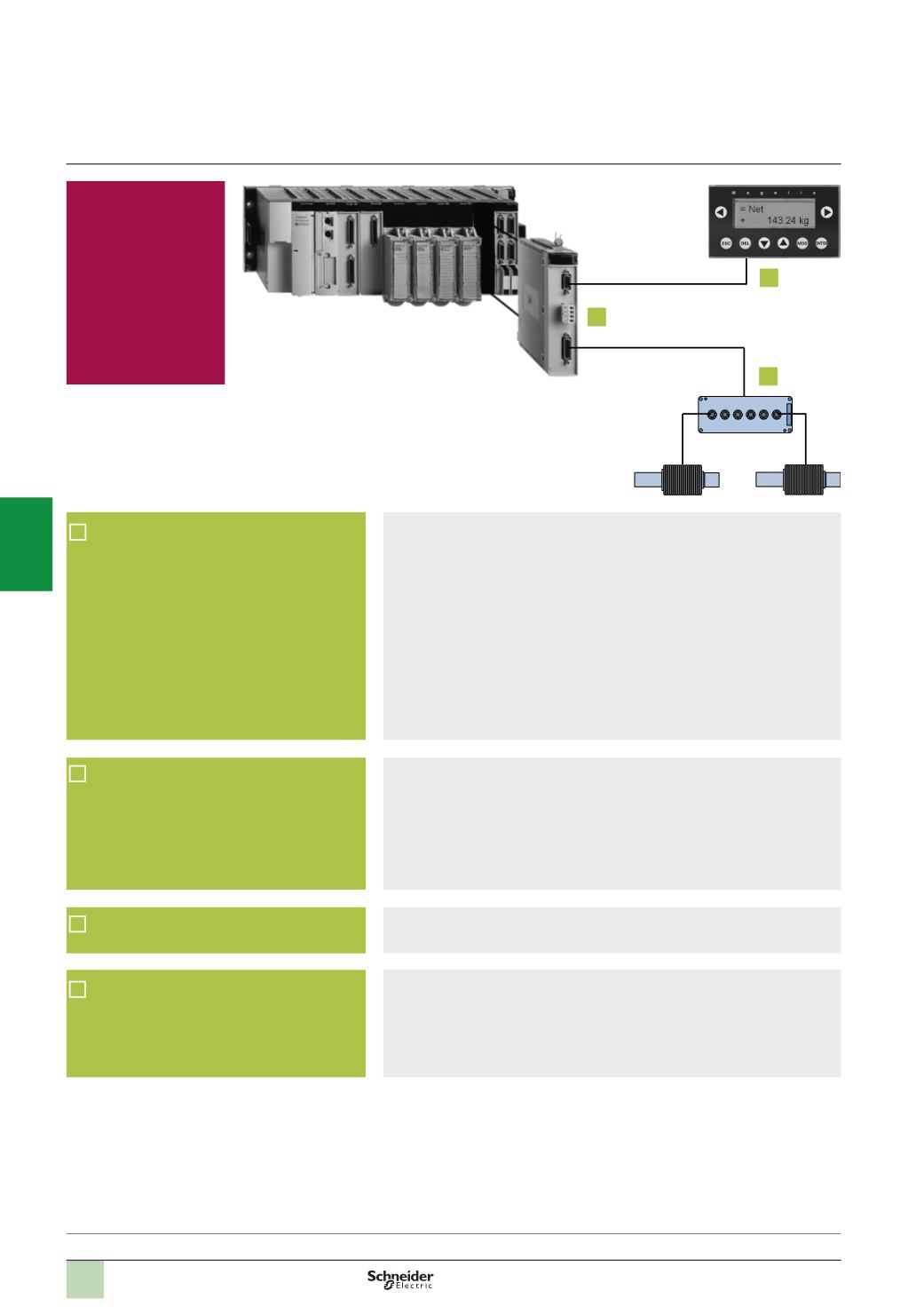

The ISP
Plus
weighing range,
when used with the
Premium PLC,
enables the
automation of
machines combined
with weighers or
installations
1
TSX ISP Y101 weighing module
The
TSX ISP Y101
standard format weighing module is the central part of the weighing system.
It has:
b
Ameasurement input that can take up to 8 load cells:
v
Resolution: 1,048,576 points (20 bits)
v
Measurement rate: 50 measurements per second
v
Type of load cell: 8 x 350 Ohm load cells maximum, mounted in parallel
v
Load cell supply voltage: 10 V
c
v
Load cell wiring distance: 350 m (with no loss of precision with 4 load cells)
b
Two discrete reflex outputs for weighing/dosing applications:
v
Type of outputs: 2 positive logic transistor outputs
v
Nominal voltage: 24 V
c
v
Response time: 1 ms discrimination
b
A sealable link for the display unit:
v
Physical interface: non-isolated RS 485
v
Distance of display unit: 30 m maximum
Module consumption: (see page 9/7)
2
TSX XBT N410 weight indicator
The
TSX XBT N410
remote display unit displays the measured weight with no prior
configuration. When the link to the weighing module is sealed, the display unit then becomes
the main display unit for commercial transactions:
b
Screen type: green backlit LCD
b
Number of lines: used in weighing applications with 2 lines of 10 characters (8.37 x 5.9 mm)
b
Power supply: 24 V
c
nominal (limit values: 18...30 V
c
)
b
Operating temperature: 0...55°C
b
Degree of protection (front panel): IP65 according to IEC/EN 60529, Nema 4X “outdoor use”
3
Accessories
Junction boxes, cables (see page 4/51)
4
Weighing module/display unit assembly
TSX ISP Y101
The
TSX ISP Y121
weighing module/display unit assembly comprises:
b
1
TSX ISP Y101
weighing module
b
1
TSX XBT N410
display unit
b
1
module/display unit connecting cable (length 3 m)
The
TSX ISP Y121
weighing module/display unit assembly conforms to the OIML
recommendations and is approved for class III weighers (6000 scale divisions) and class IIII
weighers (1000 scale divisions).
1
2
3
Presentation
Description:
page 4/49
Functions:
page 4/50
References:
page 4/51
Modicon Premiumautomation
platform
ISP
Plus
integrated weighing system
