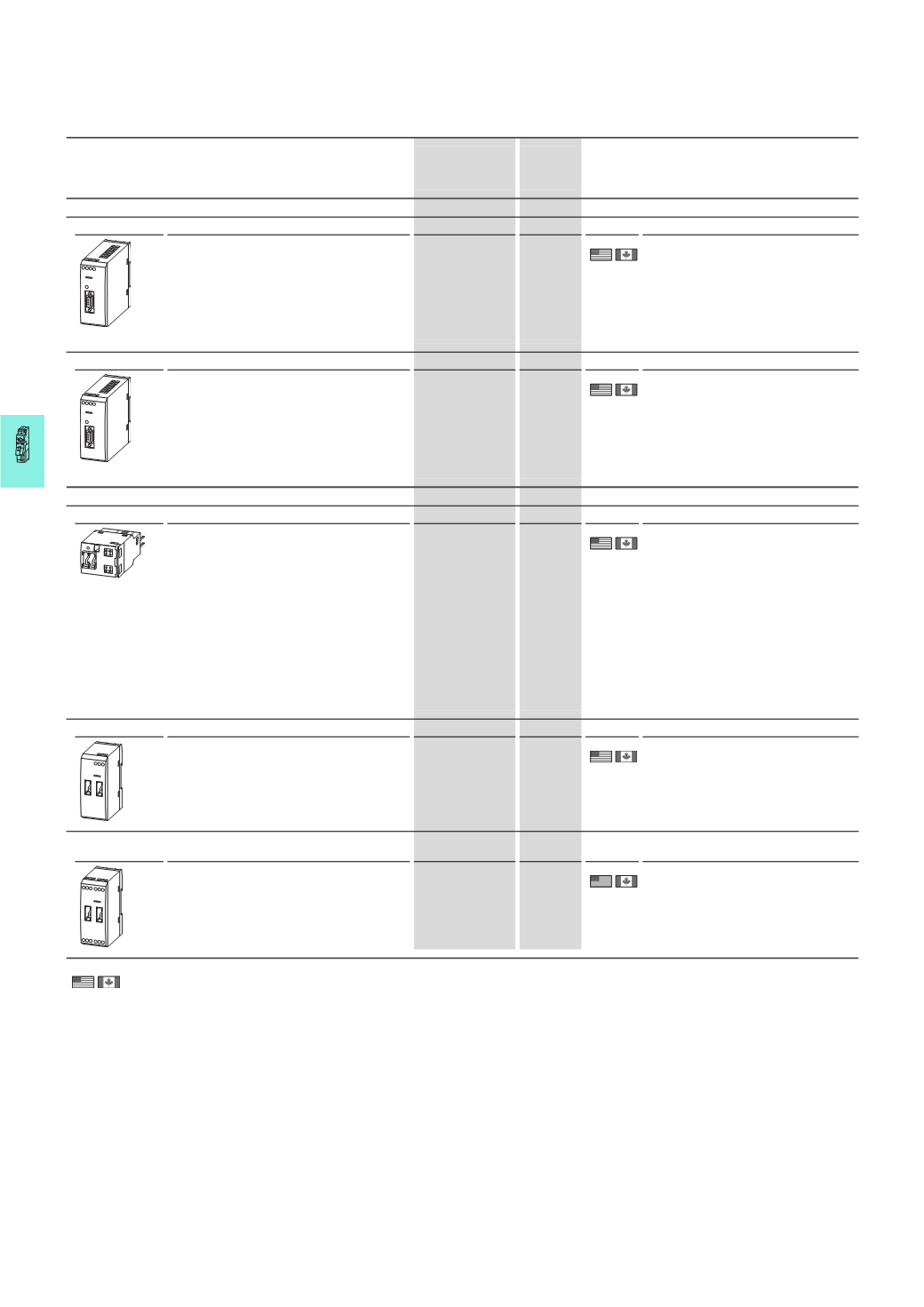

Connection system SmartWire
2010
CA08103002Z-EN
www.eaton.comOrdering
Description
Part no.
Article no.
Price
See price
list
Std. pack
Notes
Gateway
PROFIBUS-DP
Gateway with integrated supply for the SmartWire
module and control voltage for the switchgear.
-
Connection to PROFIBUS-DP as slave.
-
Transmission rate: 9.6 Kbits/s to 12 MBit/s.
- 9
pole SUB-D socket.
-
Address range 1…126.
-
Connection to SmartWire module as master.
-
Supports 16 SmartWire modules.
SWIRE-GW-DP
107027
1
off
–
MODBUS
Gateway with integrated supply for the SmartWire
module and control voltage for the switchgear.
-
Connection to MODBUS-RTU as slave.
-
Transmission rate: 9.6 to 57.6 Kbits/s.
- 9
pole SUB-D socket RS232/RS485.
-
Address range 1…31.
-
Connection to SmartWire module as master.
-
Supports 16 SmartWire modules.
SWIRE-GW-MB
118562
1
off
–
Modules
SmartWire module for DILM
SmartWire module to assemble on the contactors
DILM(C)7…DILM(C)38, DILA…, DILMP20
-
One module is necessary per contactor.
-
Connection to SmartWire gateway as slave.
-
Max. 16 SmartWire modules per line.
- 1
digital input for floating contact.
-
Signaling contactor switch position.
SWIRE-DIL
107028
5
off
•
Take account of the max. current consump-
tion of the contactor coils per SmartWire
line.
•
Length of connection cable at the input and
the electrical interlock < 2.8 m.
•
The A2 connection of the contactors must
not be linked.
•
Electrical interlocking only possible via the
terminals on the module for DILM.
•
Wiring sets DILM 12-XRL and PKZM0-
XRM12 cannot be used.
•
Connection terminals for electrical
interlocking are not suitable for safety
technology.
SmartWire power module
Power module for suppling the control voltage.
-
Connection on SmartWire gateway as interactive
station (no address).
SWIRE-PF
107029
1
off
Max. 4 power modules per SmartWire line.
SmartWire I/O mod-
ule
4
digital inputs
2
digital relay outputs
SWIRE-4DI-2DO-R
107030
1
off
Max. 4 SmartWire I/O modules per line.
Information relevant for export to North America
Product Standards IEC/EN 60947-4-1; UL 508; CSA-C22.2 No. 14-05;
CE marking
UL File No.
E29184
UL CCN
NKCR
CSA File No.
012528
CSA Class No.
2252-01
NA Certification
UL Listed, CSA certified
SWIRE-…
