Frequency inverters
Mains chokes, motor chokes
2010 CA08103002Z-EN
10/43

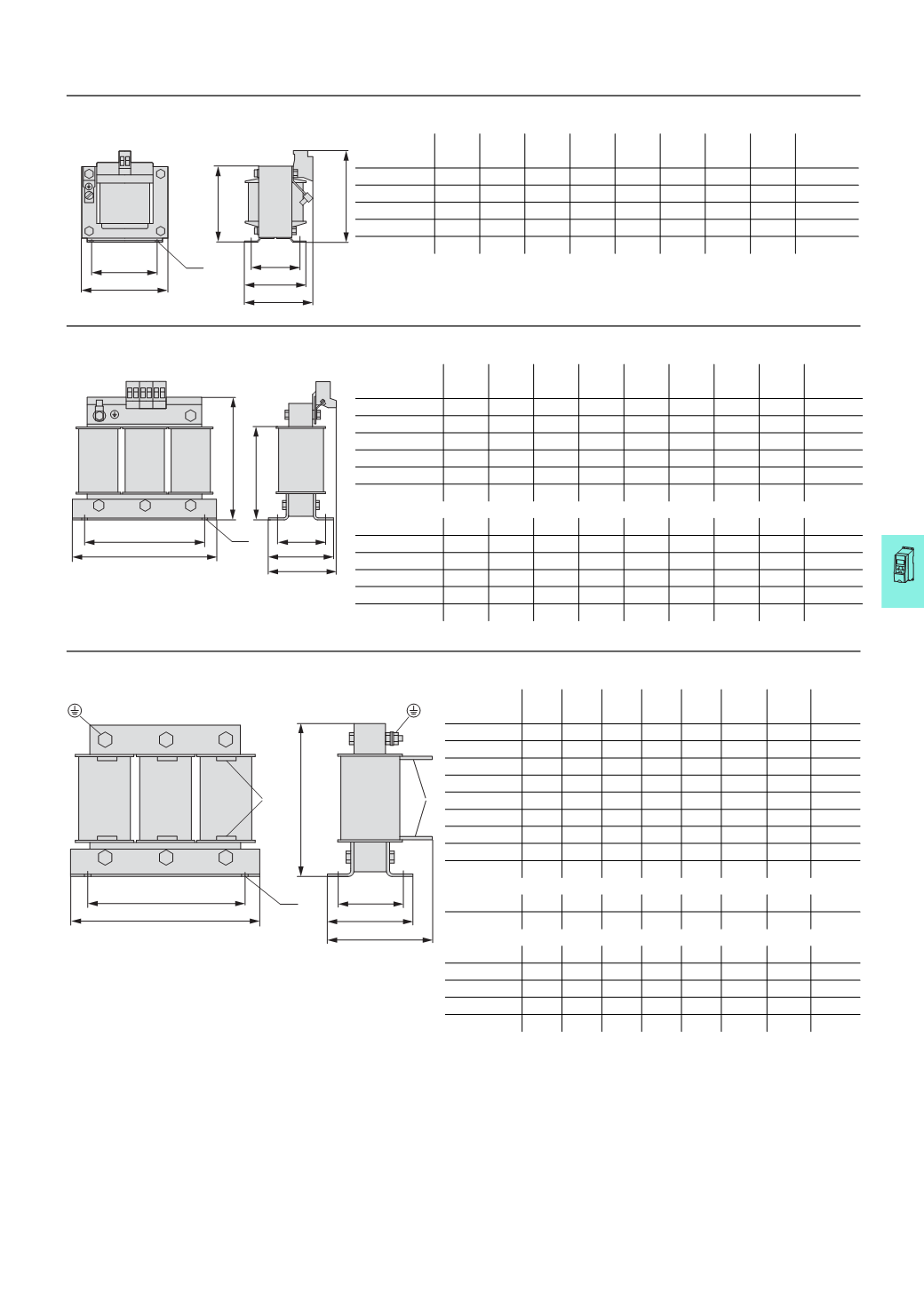

Mainschokes,motorchokesMains chokes
DEX-LN1-...
Mains chokes/motor chokes
DEX-LN3-..., DEX-LM3-...
Mains chokes/motor chokes
DEX-LN3-..., DEX-LM3-...
1) The position of connection lugs U2-V2-W2 depends on the coil material and can deviate from the position illustrated here.
2) Tolerance depending on air gap
c ±
5
b 5
b2
b1 d
a
a1
PE
1 2
c1
±
5
Part no. a a1 b b1 b2 c c1 ⌀d Weight
mm mm mm mm mm mm mm mm kg
DEX-LN1-006 66 50 71 44 55 80 61 4.5 x 8 0.7
DEX-LN1-009 66 50 71 44 55 80 61 4.5 x 8 0.7
DEX-LN1-013 84 64 67 47 60 90 75 4.8 x 8 1.5
DEX-LN1-018 84 64 90 70 83 90 75 4.8 x 8 1.5
DEX-LN1-024 84 64 67 47 60 90 75 4.8 x 8 2
a1
a
b1
b ±5
b2
c
±5
d
PE
W1W2 V1V2 U1U2
c1
±
5
Part no. a a1 b b1 b2 c c1 ⌀d Weight
mm mm mm mm mm mm mm mm kg
DEX-LN3-004 115 100 66 50 66 118 84 5 x 10 1.5
DEX-LN3-006 115 100 66 50 66 118 84 5 x 10 1.5
DEX-LN3-010 140 125 61 50 61 138 105 5 x 10 2.2
DEX-LN3-016 140 125 71 50 71 138 105 5 x 10 2.9
DEX-LN3-025 195 175 104 50 76.5 175 134 8 x 13 4.8
DEX-LN3-040 195 175 104 50 76.5 188 134 8 x 13 4.8
DEX-LM3-005 115 100 66 50 66 118 84 5 x 10 1.5
DEX-LM3-008 195 175 104 50 76.5 175 134 8 x 13 4.8
DEX-LM3-011 195 175 104 50 76.5 175 134 8 x 13 4.8
DEX-LM3-016 195 175 104 50 76.5 175 134 8 x 13 4.8
DEX-LM3-035 220 200 132 75 101.5 195 160 8 x 13 7.3
DEX-LM3-050 270 250 106 75 96 228 198 8 x 13 12.3
o d b1 a1
a b2
b ± 10
c
PE PE
1) 1)
Part no. a a1 b b1 b2 c2) ⌀d Weight
mm mm mm mm mm mm mm kg
DEX-LN3-050 195 175 105 75 91.5 132 ±5 8 x 13 5.9
DEX-LN3-060 195 175 105 75 91.5 132 ±5 8 x 13 5.9
DEX-LN3-080 220 200 110 50 81.5 160 ±5 8 x 13 7.3
DEX-LN3-100 220 200 130 75 101.5 160 ±5 8 x 13 10.2
DEX-LN3-120 220 200 130 75 101.5 160 ±5 8 x 13 10.2
DEX-LN3-160 270 250 125 75 96 200 ±5 8 x 13 12.3
DEX-LN3-200 270 250 155 100 120 202 ±5 8 x 13 14.9
DEX-LN3-250 270 250 155 100 125 210 ±5 10 x 18 20.6
DEX-LN3-300 270 250 155 100 125 210 ±5 10 x 18 20.6
DEX-LM3-063 270 250 155 100 120 202 ±10 8 x 13 14.9
DEX-LM3-080 270 250 155 100 125 210 ±10 10 x 18 20.6
DEX-LM3-100 384 350 215 100 130 258 ±30 12 x 20 31
DEX-LM3-150 384 350 260 150 180 258 ±30 12 x 20 45
DEX-LM3-180 384 350 260 150 180 258 ±30 12 x 20 45
DEX-LM3-220 384 350 260 150 180 258 ±30 12 x 20 45
DEX-LM3-260 384 350 260 150 180 258 ±30 12 x 20 45
DEX-LN..., DEX-LM3...
