Eaton Industrial Switchgear - xStart switching, protections and actuating motors

434 / 439

10/38 Frequency inverters
MMX...
2010 CA08103002Z-EN

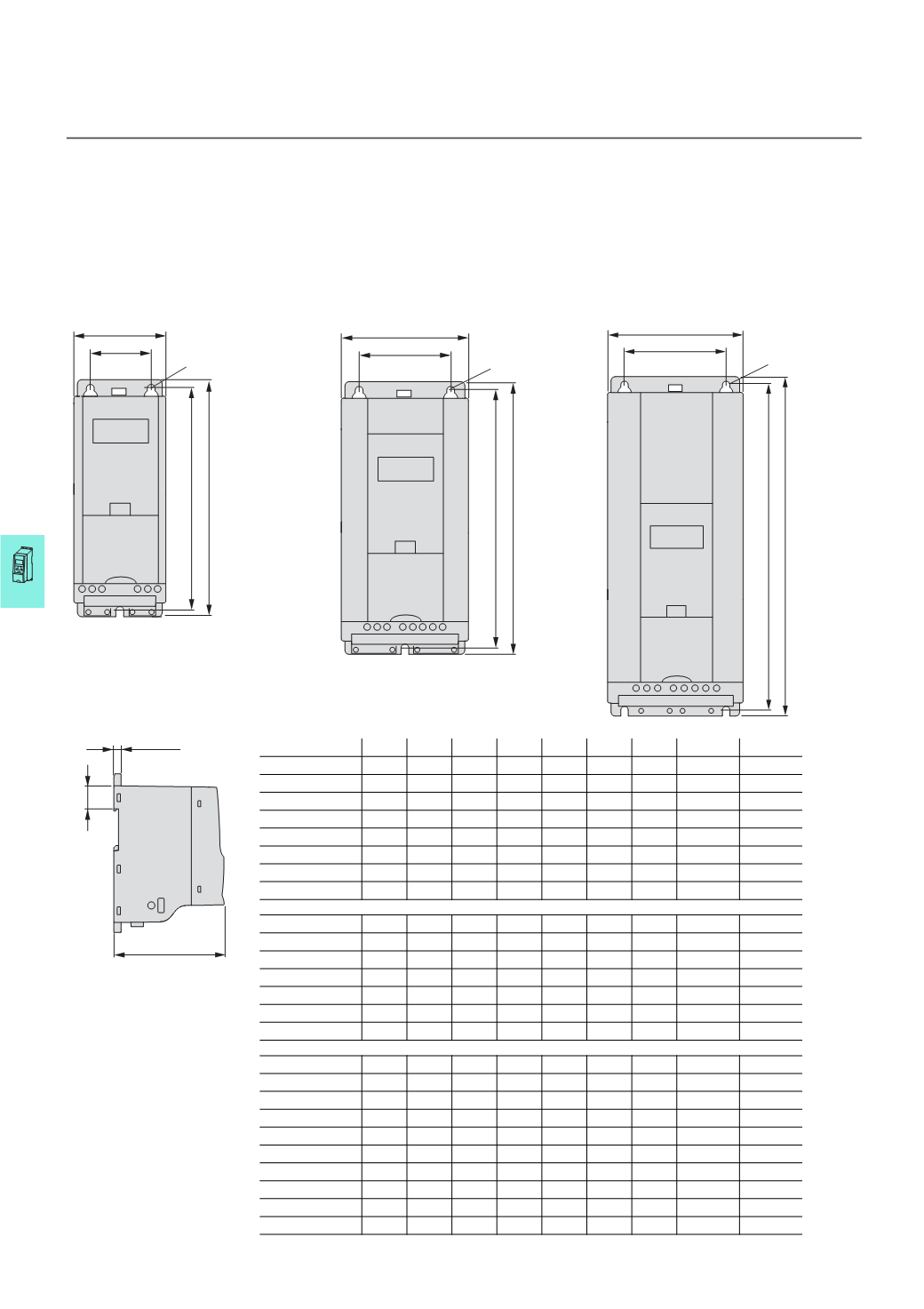

MMX...Dimensions
MMX12AA1D7... MMX12AA3D7... MMX12AA7D0...
MMX12AA2D4... MMX12AA4D8... MMX32AA011...
MMX12AA2D8... MMX12AA7D0... MMX34AA7D6...
MMX32AA1D7... MMX32AA3D7... MMX34AA9D0...
MMX32AA2D4... MMX32AA4D8... MMX34AA012...
MMX32AA2D8... MMX32AA7D0... MMX34AA014...
MMX34AA1D3... MMX34AA3D3...
MMX34AA1D9... MMX34AA4D3...
MMX34AA2D4... MMX34AA5D6...
FS1 FS2 FS3
1 mm = 0.0394 inches
1 inch (1”) = 25.4 mm
b1 b
a1
a
o
b1 b
a1
a
o
b1 b
a1
a
o
b2
c
7 mm
(0.275”) Part no. a a1 b b1 b2 c ⌀ Weight Frame size
mm mm mm mm mm mm mm kg
MMX12AA1D7… 66 38 160 147 32 102 4.5 0.55 FS1
MMX12AA2D4… 66 38 160 147 32 102 4.5 0.55 FS1
MMX12AA2D8… 66 38 160 147 32 102 4.5 0.55 FS1
MMX12AA3D7… 90 62.5 195 182 32 105 5.5 0.7 FS2
MMX12AA4D8… 90 62.5 195 182 32 105 5.5 0.7 FS2
MMX12AA7D0… 90 62.5 195 182 32 105 5.5 0.7 FS2
MMX12AA9D6… 100 75 253 242 34 112 5.5 0.99 FS3
MMX32AA1D7… 66 38 160 147 32 102 4.5 0.55 FS1
MMX32AA2D4… 66 38 160 147 32 102 4.5 0.55 FS1
MMX32AA2D8… 66 38 160 147 32 102 4.5 0.55 FS1
MMX32AA3D7… 90 62.5 195 182 32 105 5.5 0.7 FS2
MMX32AA4D8… 90 62.5 195 182 32 105 5.5 0.7 FS2
MMX32AA7D0… 90 62.5 195 182 32 105 5.5 0.7 FS2
MMX32AA011… 100 75 253 242 34 112 5.5 0.99 FS3
MMX34AA1D3… 66 38 160 147 32 102 4.5 0.55 FS1
MMX34AA1D9… 66 38 160 147 32 102 4.5 0.55 FS1
MMX34AA2D4… 66 38 160 147 32 102 4.5 0.55 FS1
MMX34AA3D3… 90 62.5 195 182 32 105 5.5 0.7 FS2
MMX34AA4D3… 90 62.5 195 182 32 105 5.5 0.7 FS2
MMX34AA5D6… 90 62.5 195 182 32 105 5.5 0.7 FS2
MMX34AA7D6… 100 75 253 242 34 112 5.5 0.99 FS3
MMX34AA9D0… 100 75 253 242 34 112 5.5 0.99 FS3
MMX34AA012… 100 75 253 242 34 112 5.5 0.99 FS3
MMX34AA014… 100 75 253 242 34 112 5.5 0.99 FS3
FS = frame size
