Braking resistors,PCconnectionBraking resistors
BR2036400-T-SAF
BR2047240-T-SAF
BR2060200-T-SAF
BR2065400-T-SAF
BR2075480-T-SAF
Braking resistors
BR10361K0-T-PF
BR10561K0-T-PF
BR1036500-T-PF
BR1056300-T-PF
BR1056800-T-PF
BR30362K4-T-PF
BR30362K8-T-PF
BR30363K6-T-PF

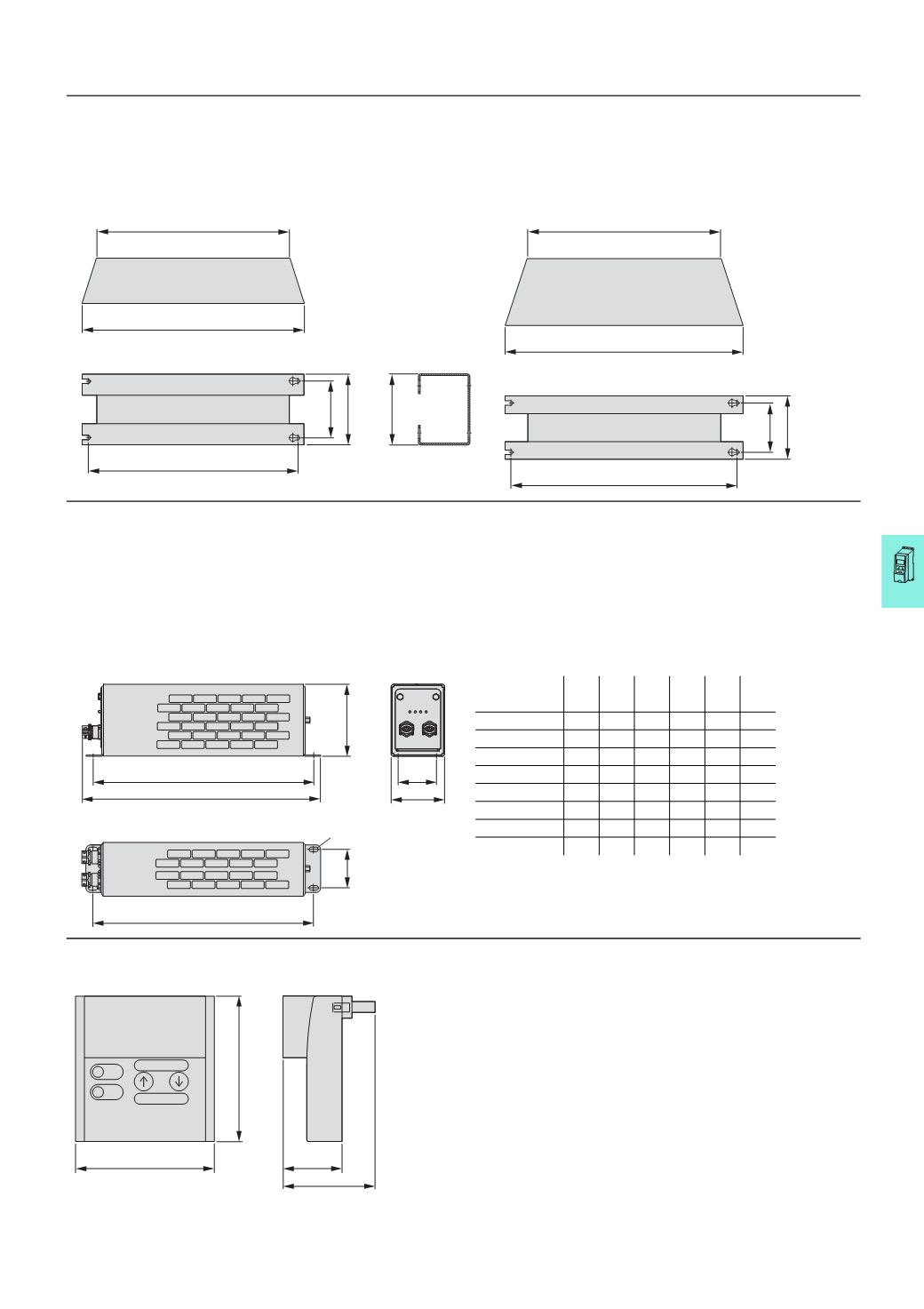

Part no. a a1 b b1 c d
mm mm mm mm mm mm
BR10361K0-T-PF 445 428 140 120 120 6 x 12
BR10561K0-T-PF 445 428 140 120 120 6 x 12
BR1036500-T-PF 445 428 95 70 95 6 x 12
BR1056300-T-PF 335 328 95 70 95 6 x 12
BR1056800-T-PF 395 378 140 120 120 6 x 12
BR30362K4-T-PF 485 380 326 300 301 9
BR30362K8-T-PF 485 380 326 300 301 9
BR30363K6-T-PF 485 380 326 300 301 9
PC interfacing
MMX-COM-PC
315
273
320
80 100 100
272
336
320
70 90
c
a1
a
b1
b
b1
a1
d
66
63 32
50
COMM
ADAPTER
ACDRIVE
ERROR
BR2...-T-SAF, BR1...-T-PF, BR3...-T-PF; MMX-COM-PC
