Connection system SmartWire 8/37
Description
1
2
I/ON
X
4
5
10
9
8
9
13
7
3
11
12

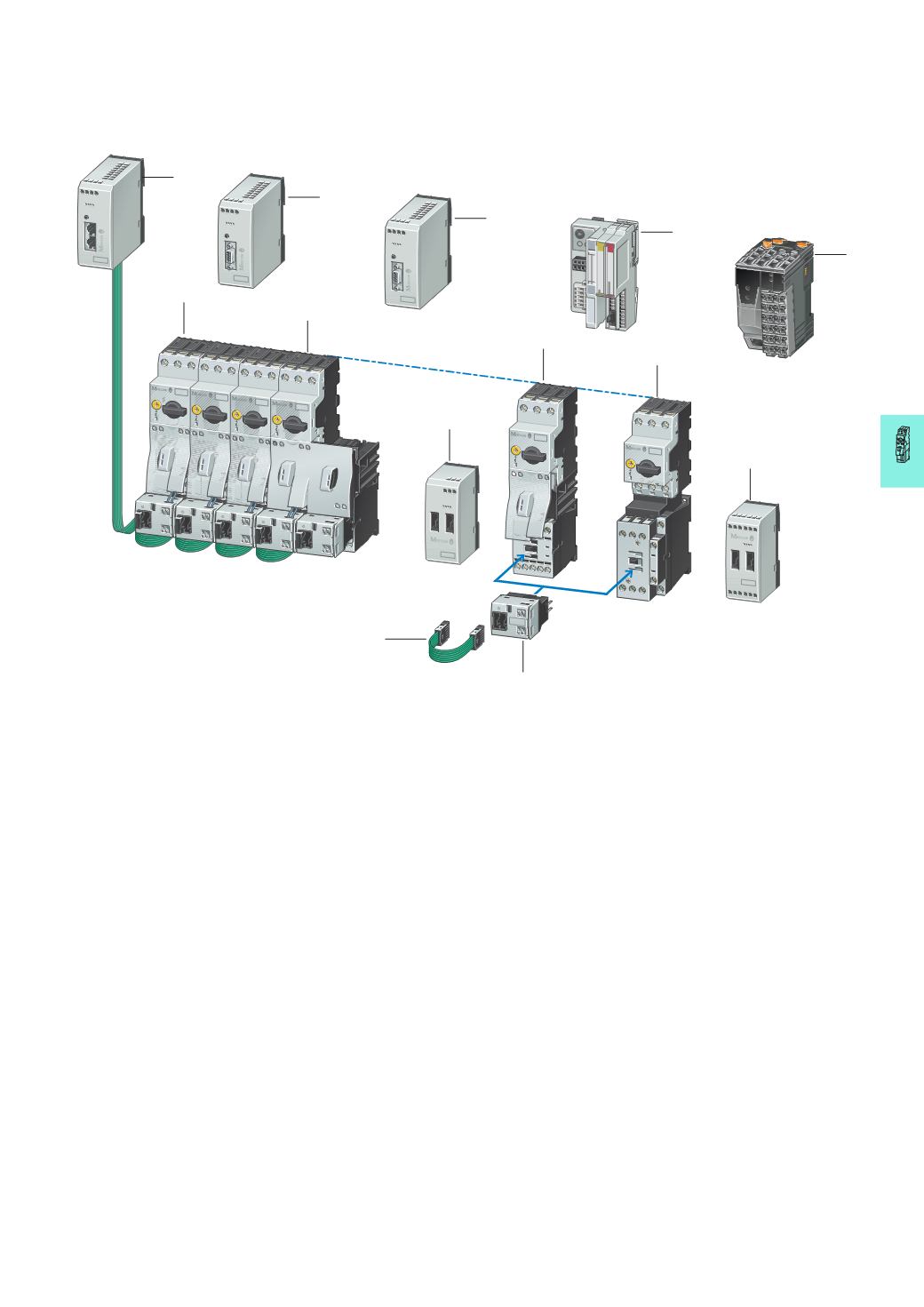

1 Gateway easyNET/CANopen
2 Gateway PROFIBUS-DP
3 Gateway MODBUS
4 Coupling unit XI/ON with Smart-
Wire Interface card
MicroInnovation AG,
5 Interface module B & R CS1011
for X20 system,
6 SmartWire I/O module
7 DOL starter MSC-D up to 32 A
8 DOL starter MSC-D up to 15.5 A
9 SmartWire power module
10 Connection cable
11 SmartWire module for DILM
12 Reversing starter MSC-R up
to 12 A
System description
With the SmartWire connection
system, switchgear can be connected
to a programmable logic controller
without the need for complex control
wiring. Plug-in SmartWire cards for
DILM and a preassembled connection
cable replace the control wiring, dra-
matically reducing wiring complexity
and completely eliminating wiring
errors. SmartWire also cuts the time
needed for installation, commissioning
and troubleshooting.
The PLC’s inputs and outputs are
replaced by the SmartWire module for
DILM, and no control wiring terminals
are required.
Connection to the various fieldbus
systems is through third-party
gateways or interface modules.
Features
• Gateway
– Connects the SmartWire cards
with the fieldbus
– Supports the fieldbus standards
PROFIBUS-DP, MODBUS,
CANopen and easy-NET
– Supplies the control voltage for
the motor starter or contactor
– Supplies the supply voltage for the
SmartWire connection system
– Configuration button for automatic
addressing of the SmartWire
modules for DILM
– Supports max. 16 SmartWire
modules for DILM
• Interface of third-party manufactur-
ers, e.g. for the XI/ON I/O system,
X20 system CS1011 interface
module
– Connection to the field buses
PROFIBUS-DP, MODBUS,
CANopen and DeviceNET
• SmartWire module for DILM
– Pluggable on contactors
– Suitable for contactors DILM7 to
DILM32 (24 V DC), DILMC7 to
DILMC32 (24 V DC), DILMP20
(24 V DC) or motor starter MSC-...
(24 V DC)
– Use the standard switchgear of
the xStart range
– Suitable for DOL and reversing
starters
– The accessories of the contactor
series can be used
– Suitable for contactor combina-
tions with PKZ or with Z relays
– Integrated switch position
monitoring of the contactors
– Integrated mechanical switch
position display
– Actuation of the contactors
– Scanning of a potential-free
contact, e.g. NHI-E-10-PKZ0
– Electrical interlocking, e.g.
possible with reversing starters
– LED for status and diagnostic
display
– Connection to gateway or inter-
face from third party devices
• SmartWire I/O module
– 4 digital inputs for connection of
potential-free contacts
– Power supply for the digital inputs
comes from the device
– 2 relay outputs 250 V AC
• SmartWire power module
– Supply of the 24 V DC control
voltageforactuation of contactors
DILM
– Assembly of Emergency Off
groups
– Increases the control voltage
power in the SmartWire line
• Safety engineering
– Emergency switching off discon-
nection as per IEC/EN 954-1,
Switching Category 3
– Central switch off of control
voltage at the gateway or
SmartWire power module
– Combination with safety-relevant
switchgear possible
SWIRE-…
