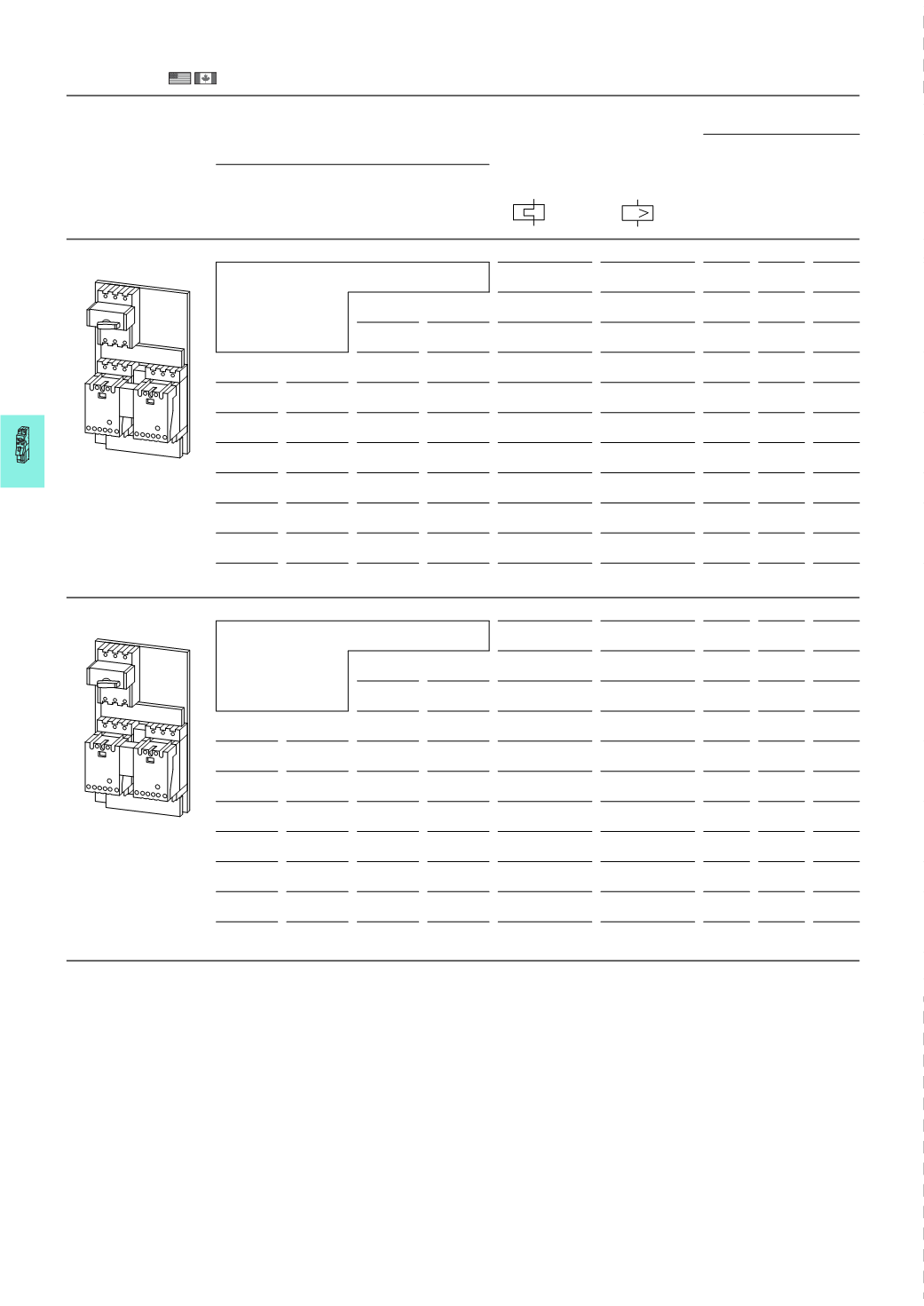

8/32 Motor-starter combinations
Reversing starters, modules
for North America
2010 CA08103002Z-EN
forNorthAmericaReversing starters,modules
Maximum motor rating Setting range Rated short-circuit breaking
capacity Icn
Alternating
current HP
Overload trip Short-circuit
release
240 V 480 Y
277 V
600 Y
347 V
200 V
208 V
230 V
240 V
460 V
480 V
575 V
600 V
Ir Irm kA kA kA
HP HP HP HP A A
Modules PKZ2/S-SP and trip blocks ZMR with overload relay function
1) 0.4 - 0.6 5 - 8 100 65 42
½ ½ 0.6 - 1 8 - 14 100 65 42
¾ 1 1 - 1.6 14 - 22 100 65 42
½ ½ 1 1½ 1.6 - 2.4 20 - 35 100 65 42
1 1 2 3 2.4 - 4 35 - 55 100 65 42
1½ 1½ 3 5 4 - 6 50 - 80 100 65 42
2 3 5 7½ 6 - 10 80 - 140 100 65 42
3 5 10 10 10 - 16 130 - 220 100 65 42
7½ 7½ 20 25 16 - 25 200 - 350 100 65 42
10 10 20 – 24 - 32 275 - 425 100 65 –
10 15 30 – 32 - 40 350 - 500 100 65 –
Modules PKZ2/S-SP and trip blocks ZM
1) 0.4 - 0.6 5 - 8 100 65 42
½ ½ 0.6 - 1 8 - 14 100 65 42
¾ 1 1 - 1.6 14 - 22 100 65 42
½ ½ 1 1½ 1.6 - 2.4 20 - 35 100 65 42
1 1 2 3 2.4 - 4 35 - 55 100 65 42
1½ 1½ 3 5 4 - 6 50 - 80 100 65 42
2 3 5 7½ 6 - 10 80 - 140 100 65 42
3 5 10 10 10 - 16 130 - 220 100 65 42
7½ 7½ 20 25 16 - 25 200 - 350 100 65 42
10 10 20 – 24 - 32 275 - 425 100 65 –
10 15 30 – 32 - 40 350 - 500 100 65 –
Notes 1) Calculate motor power in this range according to the rated operational current. Stated values to NEC Table 430 … 150
2) Specify actuating voltage in the range 24 – 600 V 50 or 60 Hz.
I
PKZ2-SP, ZMR, ZM HPL08032EN
