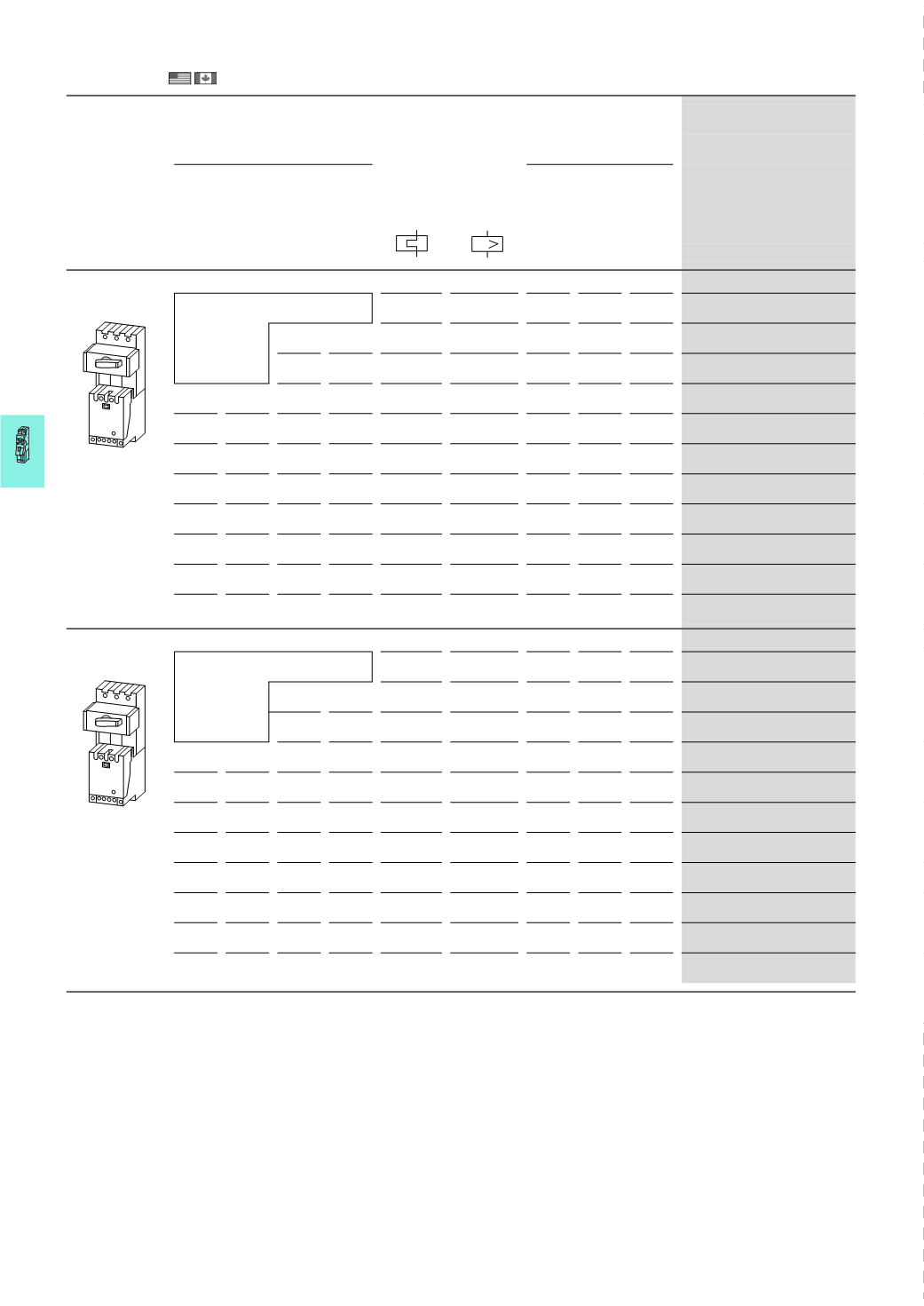

8/30 Motor-starter combinations
DOL starters, modules
for North America
2010 CA08103002Z-EN
forNorthAmericaDOL starters,modules
Maximum motor rating Setting range Basic unit
Alternating current HP Overload
trip
Short-circuit
release
Rated short-circuit breaking
capacity
200 V
208 V
230 V
240 V
460 V
480 V
575 V
600 V
240 V 480 Y
277 V
600 Y
347 V
Type
HP HP HP HP Ir Irm kA kA kA
A A
Modules PKZ2/S-SP and trip blocks ZMR with overload relay function
1) 0.4 - 0.6 5 - 8 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)
050940
½ ½ 0.6 - 1 8 - 14 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)
050940
¾ 1 1 - 1.6 14 - 22 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)
050940
½ ½ 1 1½ 1.6 - 2.4 20 - 35 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)
050940
1 1 2 3 2.4 - 4 35 - 55 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)
050940
1½ 1½ 3 5 4 - 6 50 - 80 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)
050940
2 3 5 7½ 6 - 10 80 - 140 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)
050940
3 5 10 10 10 - 16 130 - 220 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)
050940
7½ 7½ 20 25 16 - 27 200 - 350 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)
050940
10 10 20 30 24 - 32 275 - 425 100 65 – PKZ2/S-SP(110V50HZ,120V60HZ)
050940
10 15 30 30 32 - 42 350 - 500 100 65 – PKZ2/S-SP(110V50HZ,120V60HZ)
050940
Modules PKZ2/S-SP and trip blocks ZM
1) 0.4 - 0.6 5 - 8 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)
050940
½ ½ 0.6 - 1 8 - 14 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)
050940
¾ 1 1 - 1.6 14 - 22 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)
050940
½ ½ 1 1½ 1.6 - 2.4 20 - 35 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)
050940
1 1 2 3 2.4 - 4 35 - 55 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)
050940
1½ 1½ 3 5 4 - 6 55 - 80 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)
050940
2 3 5 7½ 6 - 10 80 - 140 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)
050940
3 5 10 10 10 - 16 130 - 220 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)
050940
7½ 7½ 20 25 16 - 27 200 - 350 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)
050940
10 10 20 30 24 - 32 275 - 425 100 65 – PKZ2/S-SP(110V50HZ,120V60HZ)
050940
10 15 30 30 32 - 42 350 - 500 100 65 – PKZ2/S-SP(110V50HZ,120V60HZ)
050940
Notes 1) Calculate motor power in this range according to the rated operational current.
Stated values to NEC Table 430 … 150
I
PKZ2/S-SP, ZMR, ZM HPL08030EN
