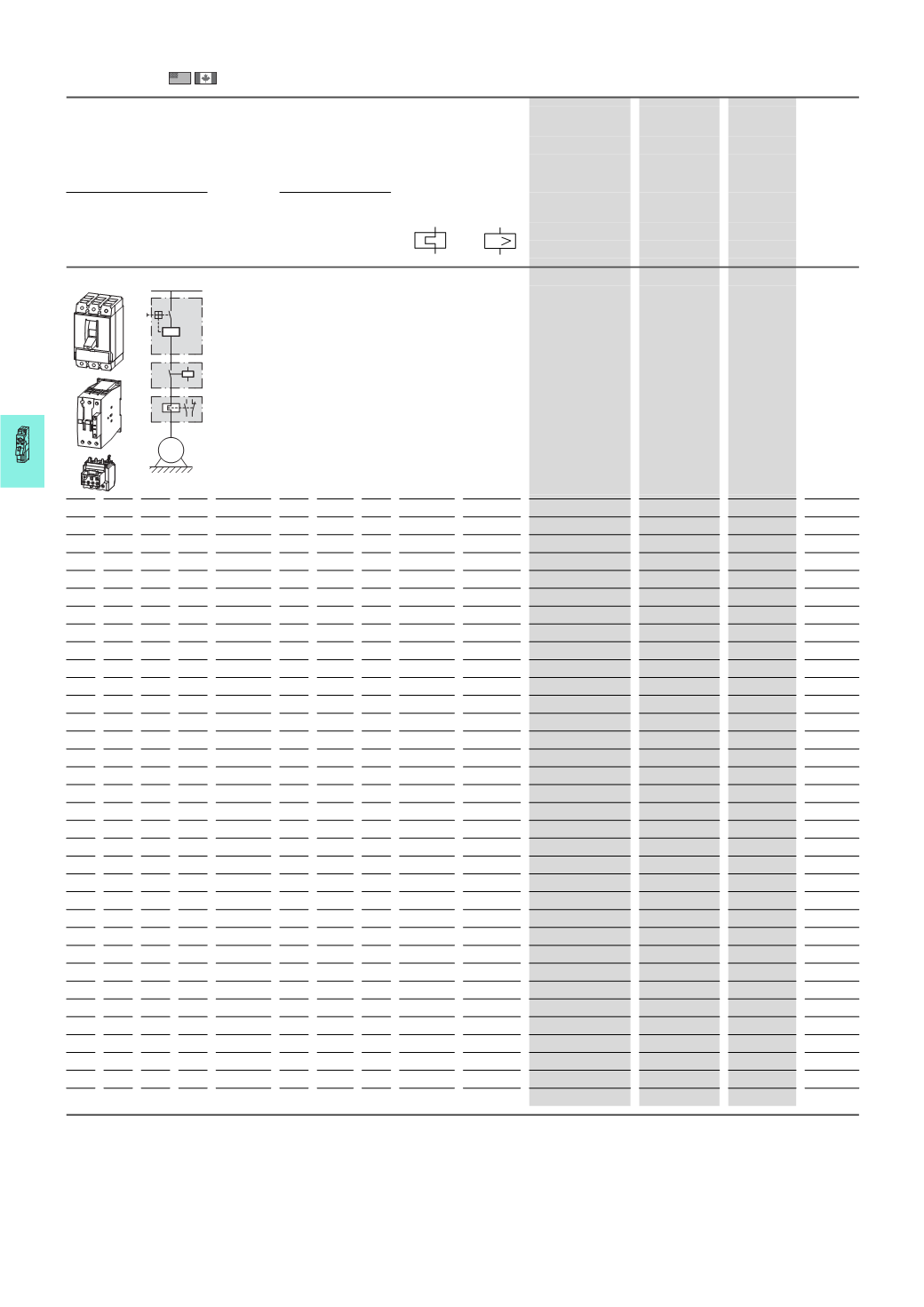

8/36 Motor-starter combinations
Function Blocks
2010 CA08103002Z-EN
for North America
Rating data for approved
types
Setting range Circuit-breaker Contactor Overload
relay
Minimum
enclosure
volume
Maximum motor rating Max.rated
motor
current
Rated short-circuit
breaking capacity
Overload
trip
Short-
circuit
releases Alternating current HP
200 V
208V
230 V
240 V
460 V
480 V
575 V
600 V
480 V 600 Y
347 V1) 600 V Type Type Type
Ir I rm
HP HP HP HP A kA kA kA A A cm3
Module NZMH...-S...-CNA, DILM, Z
– – – ½ 0.9 100 50 – 0.6 - 1 12.8 - 22.5 NZMH2-S1.6-CNA DILM17-…(…) ZB32-1 81.5
– – ½ ¾ 1.3 100 50 – 1 - 1.6 12.8 - 22.5 NZMH2-S1.6-CNA DILM17-…(…) ZB32-1,6 81.5
– – ¾ – 1.6 100 50 – 1 - 1.6 19.2 - 33.6 NZMH2-S2.4-CNA DILM17-…(…) ZB32-1,6 81.5
– – 1 1 2.1 100 50 – 1.6 - 2.4 19.2 - 33.6 NZMH2-S2.4-CNA DILM17-…(…) ZB32-2,4 81.5
– ½ – 1½ 2.4 100 50 – 1.6 - 2.4 32 - 56 NZMH2-S5-CNA DILM17-…(…) ZB32-2,4 81.5
¾ ¾ 2 3 3.9 100 50 – 2.4 - 4 32 - 56 NZMH2-S5-CNA DILM17-…(…) ZB32-4 81.5
– 1 – – 4.2 100 50 – 4 - 6 32 - 56 NZMH2-S5-CNA DILM17-…(…) ZB32-6 81.5
1 1½ 3 – 6 100 50 – 4 - 6 48 - 84 NZMH2-S8-CNA DILM17-…(…) ZB32-6 81.5
1½ 2 – 5 6.9 100 50 – 6 - 10 48 - 84 NZMH2-S8-CNA DILM17-…(…) ZB32-10 81.5
2 3 5 7½ 9.6 100 50 – 6 - 10 80 - 140 NZMH2-S12-CNA DILM17-…(…) ZB32-10 81.5
3 5 10 10 15.2 100 50 – 10 - 16 128 - 224 NZMH2-S18-CNA DILM17-…(…) ZB32-16 81.5
5 – – 15 17.5 100 50 – 16 - 24 200 - 350 NZMH2-S26-CNA DILM17-…(…) ZB32-24 81.5
– 7½ 15 20 22 100 50 – 16 - 24 200 - 350 NZMH2-S26-CNA DILM25-…(…) ZB32-24 81.5
7½ – – – 25.3 100 50 – 24 - 32 256 - 448 NZMH2-S33-CNA DILM25-…(…) ZB32-32 81.5
– 10 20 25 28 100 50 – 24 - 32 256 - 448 NZMH2-S33-CNA DILM32-…(…) ZB32-32 81.5
10 – – – 32.2 100 50 – 24 - 32 320 - 560 NZMH2-S40-CNA DILM32-…(…) ZB32-32 81.5
– – 25 30 34 100 50 – 32 - 40 320 - 560 NZMH2-S40-CNA DILM40(…) ZB65-40 81.5
– – 30 – 40 100 50 – 32 - 40 400 - 700 NZMH2-S50-CNA DILM40(…) ZB65-40 81.5
– 15 – 40 42 100 50 – 40 - 57 400 - 700 NZMH2-S50-CNA DILM40(…) ZB65-57 81.5
15 20 40 50 54 100 50 – 40 - 57 504 - 882 NZMH2-S63-CNA DILM50(…) ZB65-57 81.5
20 – 50 60 65 100 50 – 57 - 65 640 - 1120 NZMH2-S80-CNA DILM65(…) ZB65-65 81.5
– 25 – – 68 100 50 – 50 - 70 640 - 1120 NZMH2-S80-CNA DILM80(…) ZB150-70 163
25 30 60 75 80 100 50 – 70 - 100 800 - 1400 NZMH2-S100-CNA DILM80(…) ZB150-100 163
– 40 75 100 104 100 50 – 70 - 100 1000 - 1750 NZMH2-S125-CNA DILM95(…) ZB150-100 163
30 – – – 92 100 50 – 70 - 100 1000 - 1750 NZMH2-S125-CNA DILM115(…) ZB150-100 163
40 – 100 125 125 100 50 – 100 - 125 1280 - 2240 NZMH2-S160-CNA DILM115(…) ZB150-125 163
– 50 – – 130 100 50 – 125 - 150 1280 - 2240 NZMH2-S160-CNA DILM115(…) ZB150-150 163
– – 125 – 156 100 50 – 125 - 150 1600 - 2500 NZMH2-S200-CNA DILM150(…) ZB150-150 265
50 60 – 150 154 100 50 – 120 - 160 1600 - 2500 NZMH2-S200-CNA DILM185/22(…) Z5-160/FF250 265
60 75 150 200 192 100 50 – 160 - 220 220 - 3080 NZMH2-SE220-CNA DILM225/22(…) Z5-220/FF250 265
75 100 200 250 248 100 50 50 160 - 220 350 - 4900 NZMH3-SE350-CNA DILM250/22(…) Z5-220/FF250 306
100 – – 300 289 100 50 50 190 - 290 350 - 4900 NZMH3-SE350-CNA DILM300/22(…) ZW7-290 306
– 125 250 – 302 100 50 50 270 - 400 450 - 6300 NZMH3-SE450-CNA DILM300/22(…) ZW7-400 306
125 150 300 400 382 100 50 50 270 - 400 450 - 6300 NZMH3-SE450-CNA DILM400/22(…) ZW7-400 306
Notes 1) Suitable for networks with grounded star-point
I
M
3~
I>
NZMH...-S...-CNA, DILM..., ZB, Z5, ZW7 HPL08036EN
