88 / 156
3/12
Adaptaflex Product Catalogue |
LIT211GB 0715
3

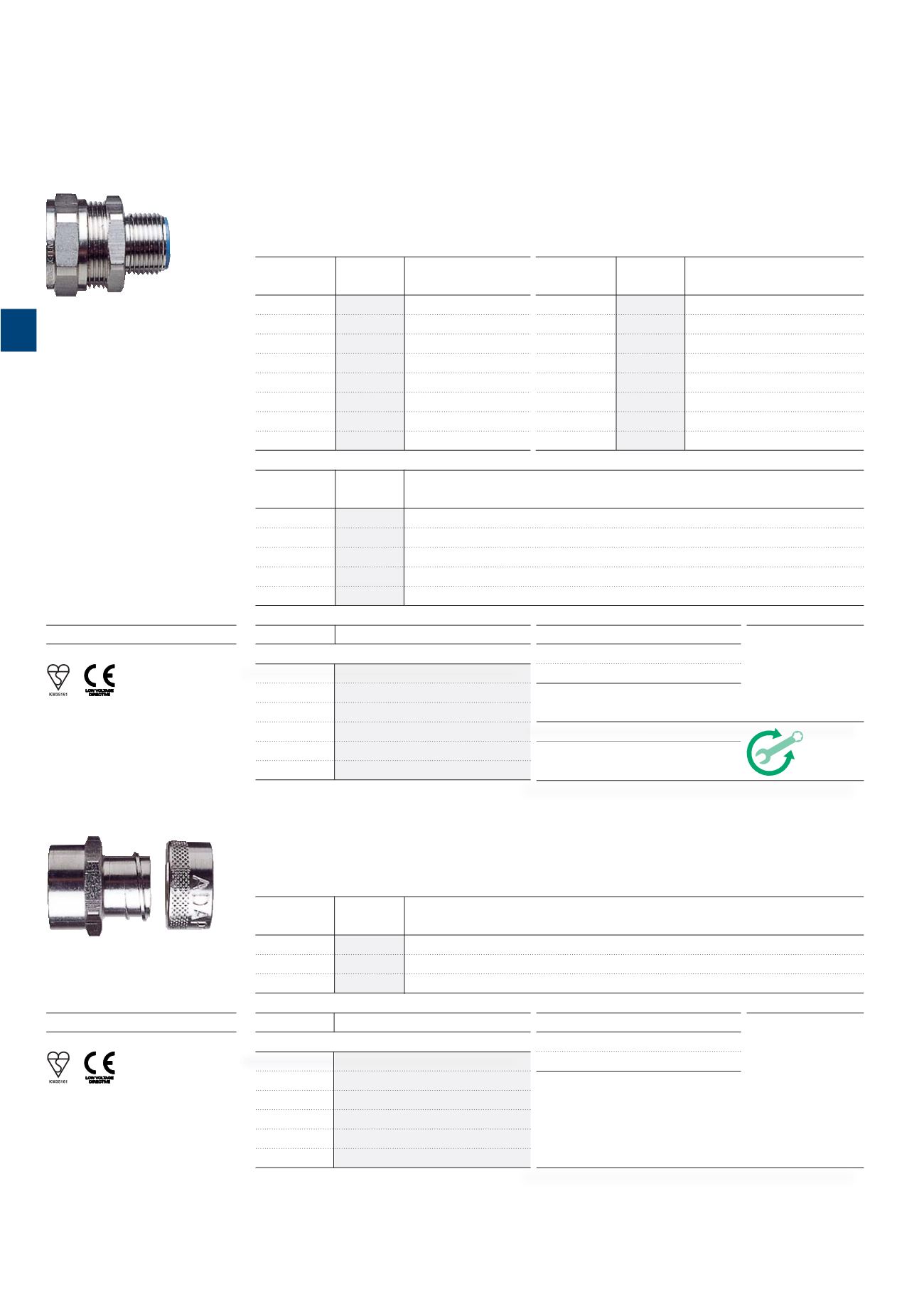

Metallic conduit systems
Type M & F - Adaptasteel
Type F - Adaptasteel
Straight Fitting - Fixed Internal Female Thread
/
For external threads and other fittings
Materials:
Nickel plated brass
Nominal
Metric
Part No.
Conduit Size Thread
SP20/M20/F 20mm
M20
SP25/M25/F 25mm
M25
SP32/M32/F 32mm
M32
Type F
Straight Fitting
Type M
Straight Swivel Fitting
Type M - Adaptasteel
Straight Swivel Fitting - External Male Thread
/
For insertion into threaded entries & knockouts using a locknut (order locknut separately)
Materials:
Nickel plated brass
Nominal
Metric
Nominal
PG
Part No.
Conduit Size Thread
Part No.
Conduit Size Thread
SP12/M16/M
12mm
M16
SP12/PG9/M
12mm
PG9
SP16/M16/M
16mm
M16
SP16/PG11/M
16mm
PG11
SP16/M20/M
16mm
M20
SP16/PG13/M 16mm
PG13.5
SP20/M20/M
20mm
M20
SP20/PG16/M 20mm
PG16
SP25/M25/M
25mm
M25
SP25/PG21/M 25mm
PG21
SP32/M32/M
32mm
M32
SP32/PG29/M 32mm
PG29
SP40/M40/M
40mm
M40
SP50/M50/M
50mm
M50
Temperature Range
Static Applications: -50ºC to +150ºC
Moving Applications: -45ºC to +150ºC
Fitting Characteristics
Approvals
IP Rating
Appropriate Conduit
For use with:
Type SP / SN / LFH-SP
IP54
N/A
IP65
Yes
IP66
N/A
IP67
N/A
IP68
N/A
IP69K
N/A
Temperature Range
Static Applications: -50ºC to +300ºC
Moving Applications: -45ºC to +250ºC
Approvals
IP Rating
Appropriate Conduit
For use with:
Type SP / SN / LFH-SP
IP54
Yes
IP65
N/A
IP66
N/A
IP67
N/A
IP68
N/A
IP69K
N/A
Nominal
NPT
Part No.
Conduit Size Thread
SP16/038/M
16mm
3/8”
SP16/038/M
16mm
3/8”
SP20/050/M
20mm
1/2”
SP25/075/M
25mm
3/4”
SP32/100/M
32mm
1”
