Adaptaflex Product Catalogue |
LIT211GB 0715
3

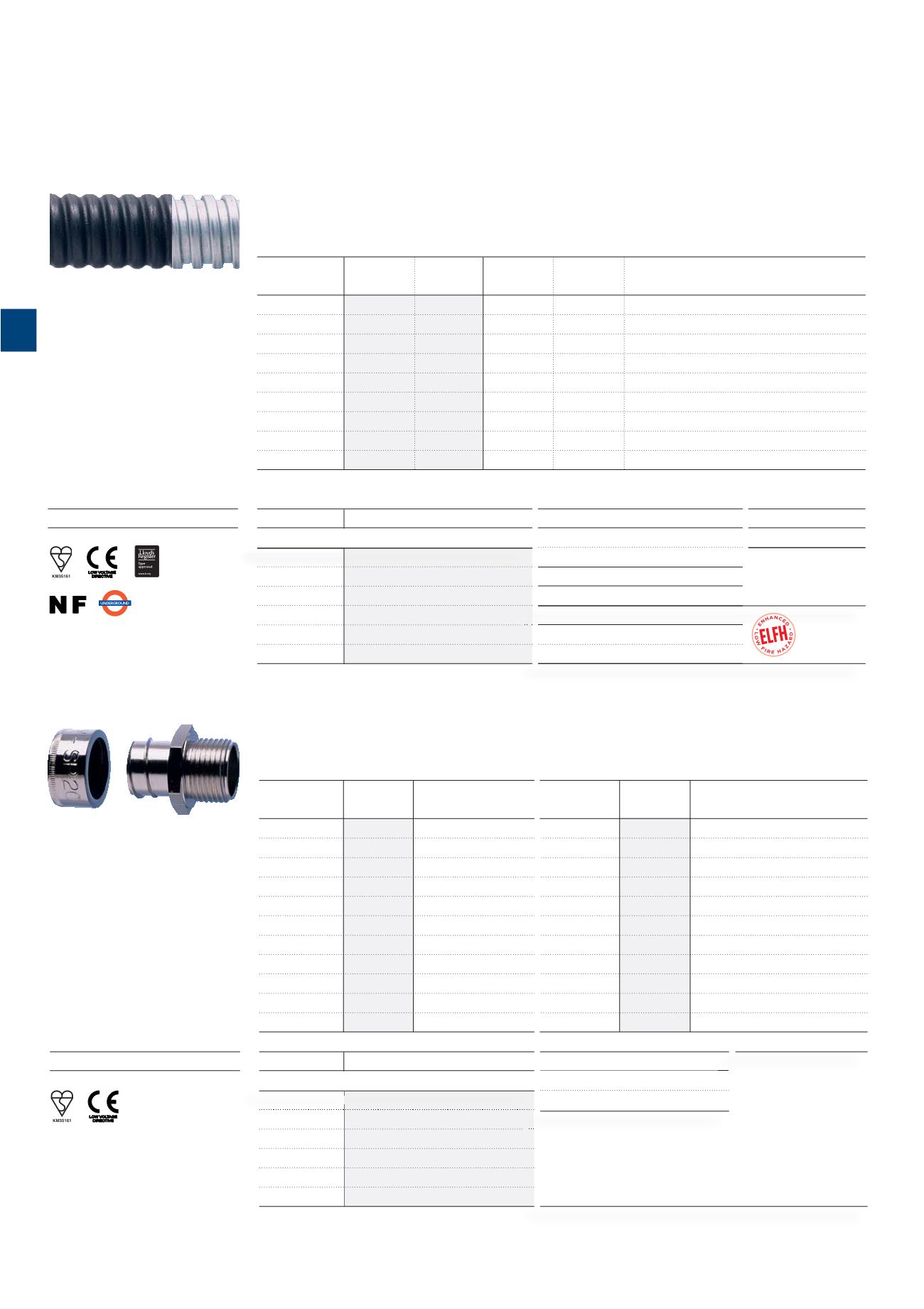

Metallic conduit systems
Type LFH-SP & A - Adaptasteel
Type LFH-SP - Adaptasteel
Liquid Resistant Enhanced Low Fire Hazard Covered Steel Flexible Conduit
Materials:
Polyolefin Covered Galvanised Steel /
Colour:
Black (BL) Only
Nominal
Outside
Inside
Min. Bend
Reel
Part No.
Conduit Size Diameter
Diameter
Radius
Length
LFH-SP12
12mm
14.0mm
10.3mm
30mm
25, 50m
LFH-SP16
16mm
17.0mm
13.0mm
35mm
10, 25, 50m
LFH-SP20
20mm
21.5mm
16.9mm
45mm
10, 25, 50m
LFH-SP25
25mm
26.0mm
21.4mm
55mm
10, 25, 50m
LFH-SP32
32mm
34.0mm
28.1mm
60mm
10, 25m
LFH-SP40
40mm
44.5mm
37.7mm
80mm
10, 25m
LFH-SP50
50mm
55.0mm
48.4mm
90mm
10, 25m
LFH-SP63
63mm
64.5mm
57.5mm
115mm
10m
LFH-SP75
75mm
79.0mm
70.0mm
150mm
10m
To order quote part number, colour & reel length, e.g. LFH-SP16/BL/50M
Temperature Range
Static Applications: -25ºC to +90ºC
Moving Applications: -5ºC to +105ºC
Flexibility & Fatigue Life
Medium Flexibility - Medium Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
Halogen Free
UV Resistance
High
Approvals
Type LFH-SP
Liquid Resistant Enhanced
Low Fire Hazard Covered
Steel Flexible Conduit
IP Rating
Appropriate Fitting
For use with:
Type SP
IP54
Type SP - Type A, B, C, E & F
IP65
Type SP - Type M & C90
IP66
N/A
IP67
N/A
IP68
N/A
IP69K
N/A
IP Rating
Appropriate Conduit
For use with:
Type SP / SN / LFH-SP
IP54
Yes
IP65
N/A
IP66
N/A
IP67
N/A
IP68
N/A
IP69K
N/A
Temperature Range
Static Applications: -50ºC to +300ºC
Moving Applications: -45ºC to +250ºC
Approvals
Type A
Straight Fitting
Type A - Adaptasteel
Straight Fitting - Fixed External Male Thread
/
For insertion into knockouts using a locknut (order locknut separately)
Materials:
Nickel plated brass
Nominal
Metric
Nominal
PG
Part No.
Conduit Size Thread
Part No.
Conduit Size Thread
SP10/M12/A
10mm
M12
SP10/PG7/A
10mm
PG7
SP12/M16/A
12mm
M16
SP12/PG9/A
12mm
PG9
SP16/M16/A
16mm
M16
SP16/M20/A
16mm
M20
SP16/PG11/A
16mm
PG11
SP20/M20/A
20mm
M20
SP20/PG16/A
20mm
PG16
SP25/M25/A
25mm
M25
SP25/PG21/A
25mm
PG21
SP32/M32/A
32mm
M32
SP32/PG29/A 32mm
PG29
SP40/M40/A
40mm
M40
SP40/PG36/A 40mm
PG36
SP50/M50/A
50mm
M50
SP50/PG42/A 50mm
PG42
SP63/M63/A
63mm
M63
SP63/PG48/A 63mm
PG48
SP75/M75/A
75mm
M75
EN45545-2 HL3 - R22 & R23
