87 / 156
Adaptaflex Product Catalogue |
LIT211GB 0715
3/11
3

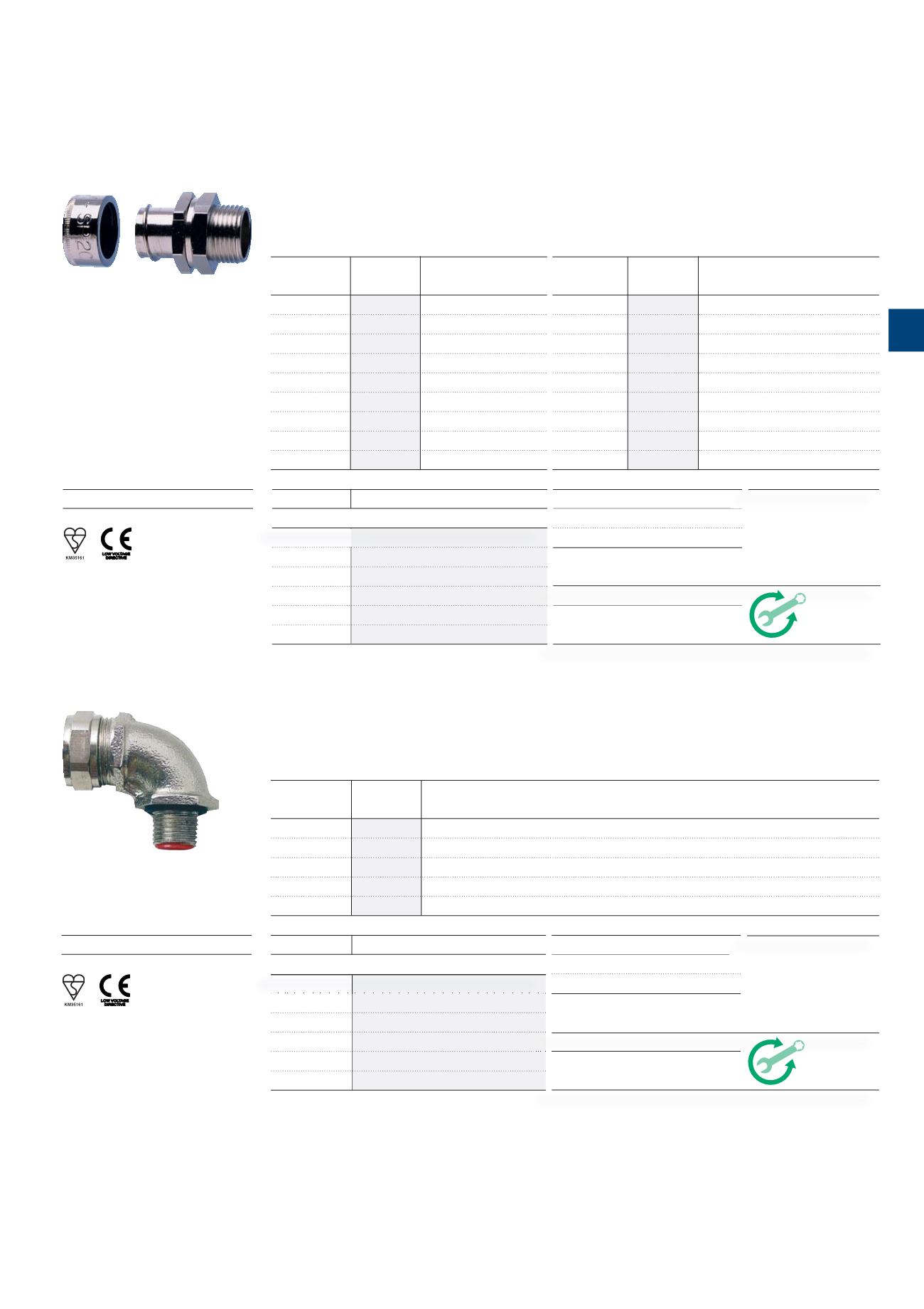

Metallic conduit systems
Type B & C90 - Adaptasteel
Type B
Straight Fitting
Type B - Adaptasteel
Straight Fitting - Swivel External Thread
/
For insertion into threaded entries & knockouts using a locknut (order locknut separately
)
Materials:
Nickel plated brass
Nominal
Metric
Nominal
PG
Part No.
Conduit Size Thread
Part No.
Conduit Size Thread
SP10/M12/B 10mm
M12
SP10/PG7/B
10mm
PG7
SP12/M16/B 12mm
M16
SP12/PG9/B
12mm
PG9
SP16/M16/B 16mm
M16
SP16/PG11/B 16mm
PG11
SP16/M20/B 16mm
M20
SP20/M20/B 20mm
M20
SP20/PG16/B 20mm
PG16
SP25/M25/B 25mm
M25
SP25/PG21/B 25mm
PG21
SP32/M32/B 32mm
M32
SP32/PG29/B 32mm
PG29
SP40/M40/B 40mm
M40
SP40/PG36/B 40mm
PG36
SP50/M50/B 50mm
M50
SP50/PG42/B 50mm
PG42
IP Rating
Appropriate Conduit
For use with:
Type SP / SN / LFH-SP
IP54
N/A
IP65
Yes
IP66
N/A
IP67
N/A
IP68
N/A
IP69K
N/A
Temperature Range
Static Applications: -50ºC to +300ºC
Moving Applications: -45ºC to +250ºC
Fitting Characteristics
Approvals
Type C90 - Adaptasteel
90° Combined Fitting & Elbow
/
For insertion into threaded entries & knockouts using a locknut (order locknut separately)
Materials:
Nickel plated brass
Nominal
Metric
Part No.
Conduit Size Thread
SP16/M16/C90 16mm
M16
SP16/M20/C90 16mm
M20
SP20/M20/C90 20mm
M20
SP25/M25/C90 25mm
M25
SP32/M32/C90 32mm
M32
IP Rating
Appropriate Conduit
For use with:
Type SP / SN / LFH-SP
IP54
Yes
IP65
N/A
IP66
N/A
IP67
N/A
IP68
N/A
IP69K
N/A
Temperature Range
Static Applications: -50ºC to +300ºC
Moving Applications: -45ºC to +250ºC
Fitting Characteristics
Approvals
Type C90
90° Combined Fitting & Elbow
