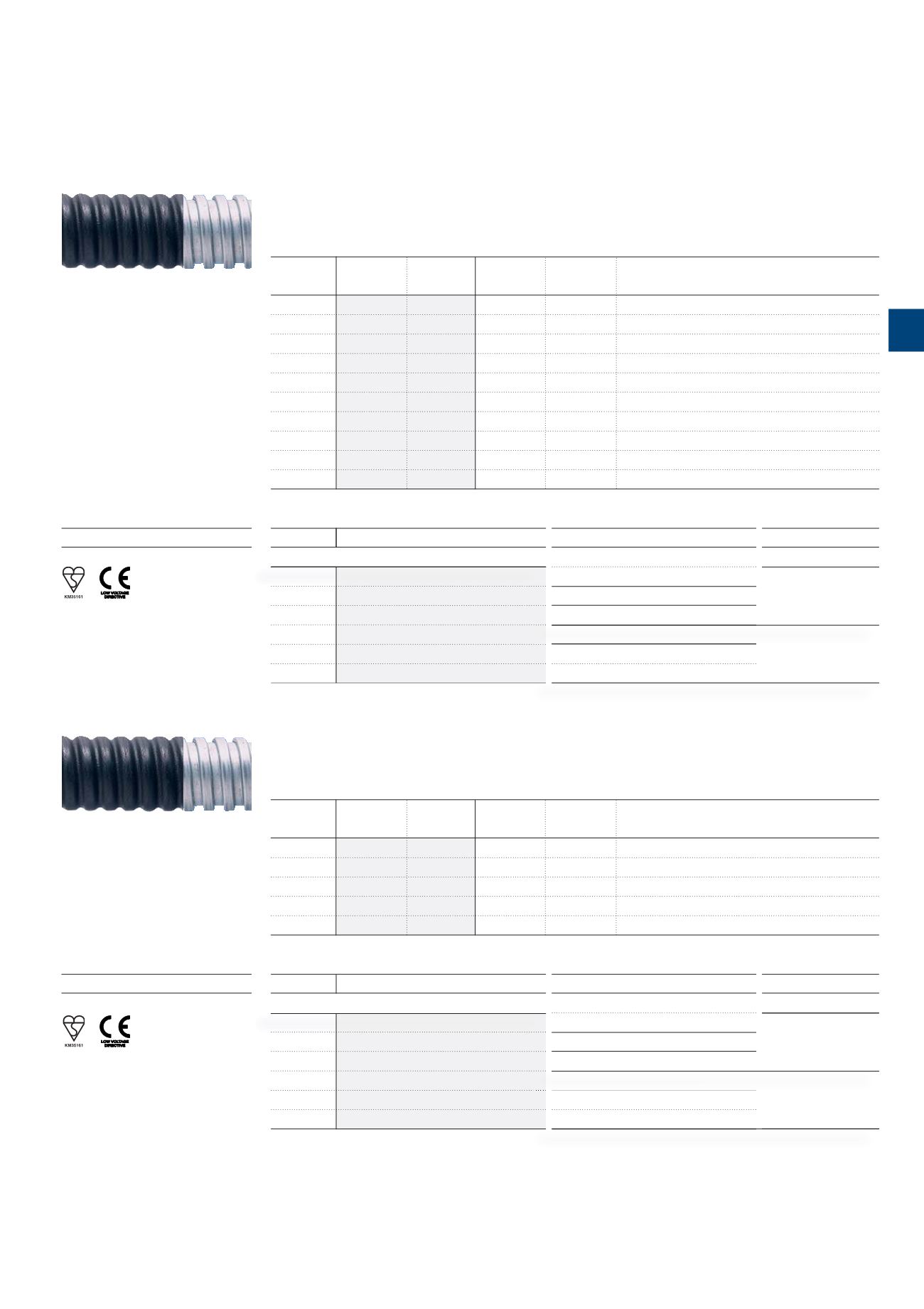

85 / 156
Adaptaflex Product Catalogue |
LIT211GB 0715
3/9
3
Metallic conduit systems
Type SP & SN - Adaptasteel
IP Rating
Appropriate Fitting
For use with:
Type SP
IP40
Type SP - Type A, B, C, E & F
IP65
Type SP - Type M & C90
IP66
N/A
IP67
N/A
IP68
N/A
IP69K
N/A
Type SP - Adaptasteel
Liquid Resistant General Purpose Covered Steel Flexible Conduit
Materials:
PVC Covered Galvanised Steel /
Colour:
Black (BL), Grey (GR), Orange (OR)
Nominal
Outside
Inside
Min. Bend
Reel
Part No.
Conduit Size Diameter
Diameter
Radius
Length
SP10
10mm
10.0mm
6.8mm
25mm
25, 50m
SP12
12mm
14.0mm
10.3mm
30mm
25, 50m
SP16
16mm
17.0mm
13.0mm
35mm
10, 25, 50m
SP20
20mm
21.5mm
16.9mm
45mm
10, 25, 50m
SP25
25mm
26.0mm
21.4mm
55mm
10, 25, 50m
SP32
32mm
34.0mm
28.1mm
60mm
10, 25m
SP40
40mm
44.5mm
37.7mm
80mm
10, 25m
SP50
50mm
55.0mm
48.4mm
90mm
10, 25m
SP63
63mm
64.5mm
57.5mm
115mm
10m
SP75
75mm
79.0mm
70.0mm
150mm
10m
To order quote part no, colour & reel length, e.g. SP12/BL/25M
Temperature Range
Static Applications: -25ºC to +70ºC
Moving Applications: -5ºC to +90ºC
Flexibility & Fatigue Life
High Flexibility - Medium Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
UV Resistance
Very High
Approvals
Type SP
Liquid Resistant General Purpose
Covered Steel Flexible Conduit
Type SN - Adaptasteel
Liquid Resistant Abrasion & Solvent Resistant Covered Steel Flexible Conduit
Materials:
PA (Nylon) Covered Galvanised Steel /
Colour:
Black (BL) Only
Nominal
Outside
Inside
Min. Bend
Reel
Part No.
Conduit Size Diameter
Diameter
Radius
Length
SN12
12mm
14.0mm
10.3mm
30mm
25, 50m
SN16
16mm
17.0mm
13.0mm
35mm
25, 50m
SN20
20mm
21.5mm
16.9mm
45mm
25, 50m
SN25
25mm
26.0mm
21.4mm
55mm
25, 50m
SN32
32mm
34.0mm
28.1mm
60mm
25m
To order quote part no, colour & reel length, e.g. SN12/BL/25M
Approvals
Type SN
Liquid Resistant Abrasion
& Solvent Resistant Covered
Steel Flexible Conduit
Temperature Range
Static Applications: -40ºC to +120ºC
Moving Applications: -25ºC to +150ºC
Flexibility & Fatigue Life
Medium Flexibility - Medium Fatigue Life
Fire Performance & EMI Screen
Self Extinguishing
Halogen Free
UV Resistance
High
IP Rating
Appropriate Fitting
For use with:
Type SP
IP40
Type SP - Type A, B, C, E & F
IP65
Type SP - Type M & C90
IP66
N/A
IP67
N/A
IP68
N/A
IP69K
N/A
