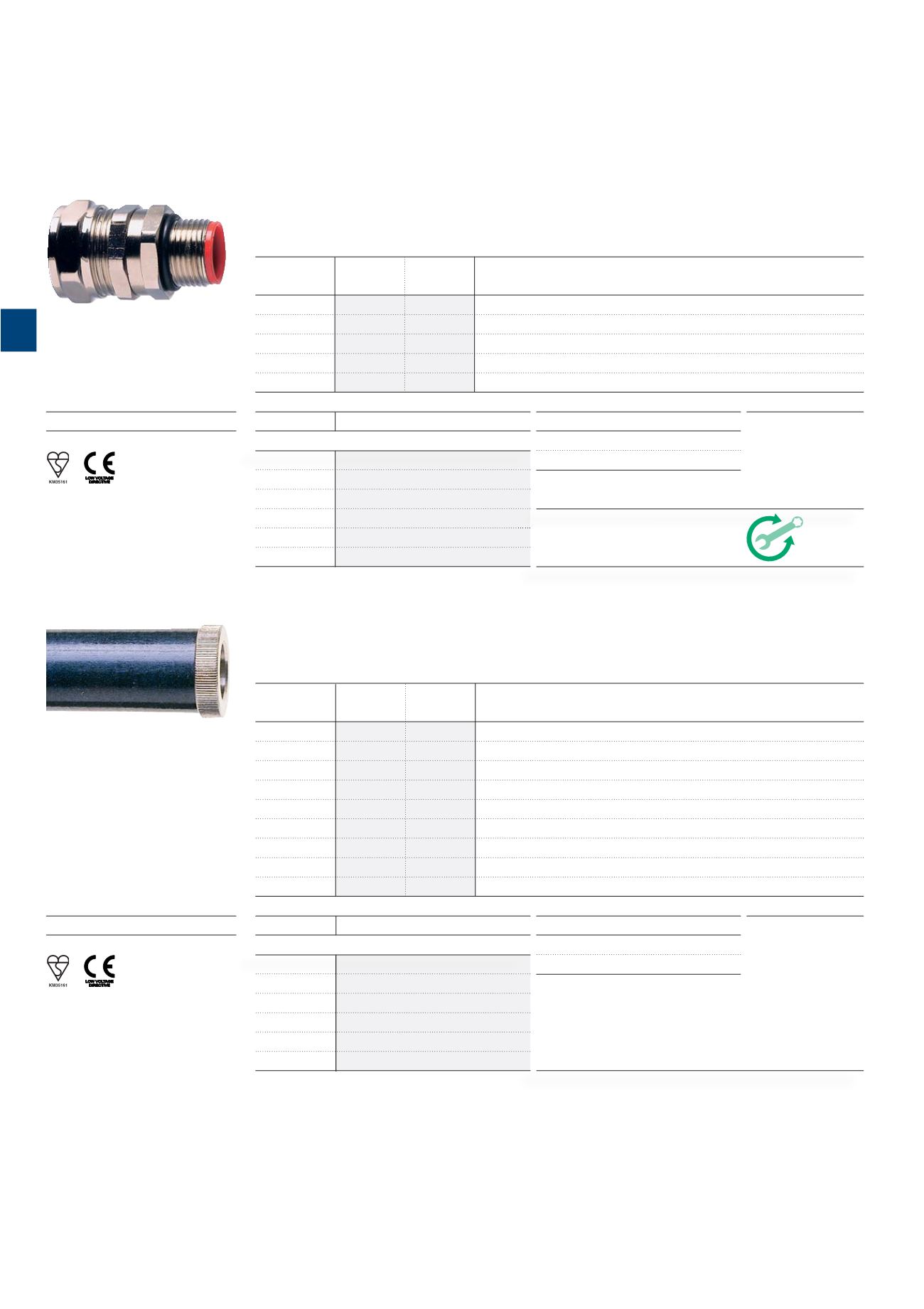

Metallic conduit systems
Type B & E - Adaptasteel
Type B
Straight Fitting
Type B - Adaptasteel
Straight Fitting - Swivel External Male Thread
/
For insertion into threaded entries & knockouts using a locknut (order locknut separately)
Materials:
Nickel plated brass
Nominal
US
Metric
Part No.
Conduit Size Conduit Size Thread
SPL16/M16/B
16mm
3/8”
M16
SPL16/M20/B
16mm
3/8”
M20
SPL20/M20/B 20mm
1/2”
M20
SPL25/M25/B 25mm
3/4”
M25
SPL32/M32/B 32mm
1”
M32
Temperature Range
Static Applications: -65ºC to +150ºC
Moving Applications: -45ºC to +150ºC
Fitting Characteristics
Approvals
IP Rating
Appropriate Conduit
For use with:
Type SPL / SPLHC / SPUL / SPL-EF / LFH-SPL
IP54
N/A
IP65
N/A
IP66
N/A
IP67
Yes
IP68
N/A
IP69K
N/A
Type E
Conduit Terminator
Type E - Adaptasteel
Conduit Terminator
/
Cable protection at exit point
Materials:
Nickel plated brass
Nominal
US
Part No.
Conduit Size Conduit Size
SPL10/E
10mm
1/4”
SPL12/E
12mm
5/16”
SPL16/E
16mm
3/8”
SPL20/E
20mm
1/2”
SPL25/E
25mm
3/4”
SPL32/E
32mm
1”
SPL40/E
40mm
1 1/4”
SPL50/E
50mm
1 1/2”
SPL63/E
63mm
2”
Temperature Range
Static Applications: -65ºC to +300ºC
Moving Applications: -45ºC to +250ºC
Approvals
IP Rating
Appropriate Conduit
For use with:
Type SPL / SPLHC / SPUL / SPL-EF / LFH-SPL
IP54
Yes
IP65
N/A
IP66
N/A
IP67
N/A
IP68
N/A
IP69K
N/A
