Metallic conduit systems
Type M - Adaptasteel
Type M - Adaptasteel

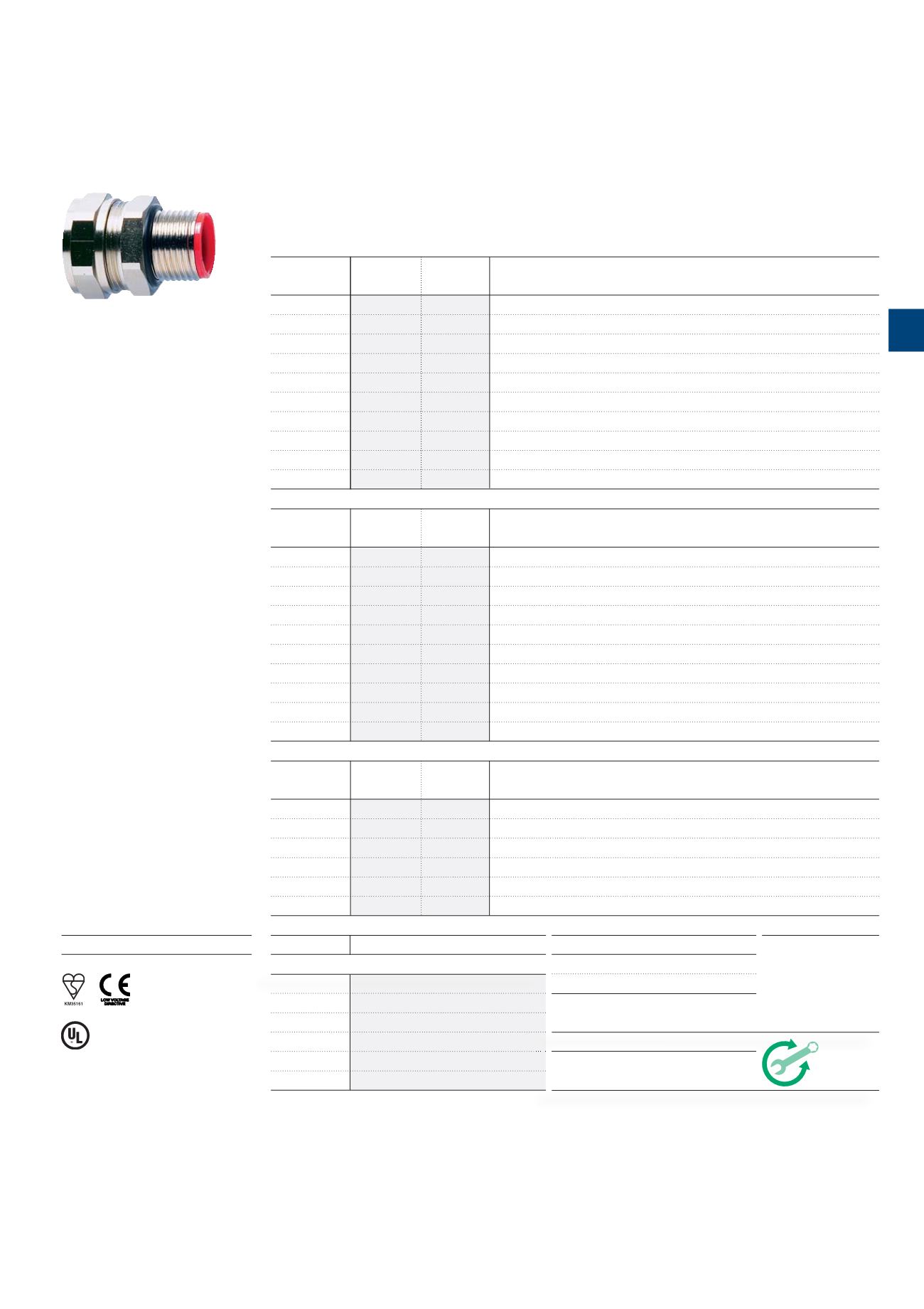

Straight Swivel Fitting - External Male Thread
/
For insertion into threaded entries & knockouts using a locknut (order locknut separately)
Materials:
Nickel plated brass
Nominal
US
Metric
Part No.
Conduit Size Conduit Size Thread
SPL10/M12/M 10mm
1/4”
M12
SPL12/M16/M 12mm
5/16”
M16
SPL16/M16/M 16mm
3/8”
M16
SPL16/M20/M 16mm
3/8”
M20
SPL20/M20/M 20mm
1/2”
M20
SPL25/M25/M 25mm
3/4”
M25
SPL32/M32/M 32mm
1”
M32
SPL40/M40/M 40mm
1 1/4”
M40
SPL50/M50/M 50mm
1 1/2”
M50
SPL63/M63/M 63mm
2”
M63
Type M
Straight Swivel Fitting
Temperature Range
Static Applications: -65ºC to +150ºC
Moving Applications: -45ºC to +150ºC
Fitting Characteristics
Approvals
IP Rating
Appropriate Conduit
For use with:
Type SPL / SPLHC / SPUL / SPL-EF / LFH-SPL
IP54
N/A
IP65
N/A
IP66
Yes
IP67
Yes
IP68
Yes (10 bar 30mins)
IP69K
Yes
Nominal
US
PG
Part No.
Conduit Size Conduit Size Thread
SPL10/PG7/M
10mm
1/4”
PG7
SPL12/PG9/M
12mm
5/16”
PG9
SPL16/PG11/M 16mm
3/8”
PG11
SPL16/PG13/M 16mm
3/8”
PG13.5
SPL20/PG16/M 20mm
1/2”
PG16
SPL25/PG21/M 25mm
3/4”
PG21
SPL32/PG29/M 32mm
1”
PG29
SPL40/PG36/M 40mm
1 1/4”
PG36
SPL50/PG42/M 50mm
1 1/2”
PG42
SPL63/PG48/M 63mm
2”
PG48
Nominal
US
NPT
Part No.
Conduit Size Conduit Size Thread
SPL16/038/M
16mm
3/8”
3/8”
SPL20/050/M 20mm
1/2”
1/2”
SPL25/075/M
25mm
3/4”
3/4”
SPL32/100/M
32mm
1”
1”
SPL40/125/M
40mm
1 1/4”
1 1/4”
SPL50/150/M
50mm
1 1/2”
1 1/2”
UL514B
File No. E60625
