27 / 156
Adaptaflex Product Catalogue |
LIT211GB 0715
2/13
2
Non-metallic conduit systems
Type C90 - Adaptalok
Nominal
PF
Nominal
NPT
Part No.
Conduit Size Thread
Part No.
Conduit Size Thread
AL13/PFO38/C90 13mm
3/8”
AL13/038/C90 13mm
3/8”
AL16/PFO38/C90 16mm
3/8”
AL16/038/C90 16mm
3/8”
AL16/PFO50/C90 16mm
1/2”
AL16/050/C90 16mm
1/2”
AL21/PFO50/C90 21mm
1/2”
AL21/050/C90 21mm
1/2”
AL28/PFO75/C90 28mm
3/4”
AL28/075/C90 28mm
3/4”
AL34/PF100/C90 34mm
1”
AL34/100/C90 34mm
1”
AL42/PF125/C90 42mm
1 1/4”
AL42/125/C90 42mm
1 1/4”
AL54/PF150/C90 54mm
1 1/2”
AL54/150/C90 54mm
1 1/2”
AL54/PF200/C90 54mm
2”
AL54/200/C90 54mm
2”
To order quote part number & body colour, e.g. AL16/M20/C90/BL
IP Rating
Appropriate Conduit
For use with:
Type PA / PI / CP / PR / PF
IP66
Yes
IP67
Yes + ALS Seal
IP68
Yes + ALS Seal
IP69K
Yes + ALS Seal

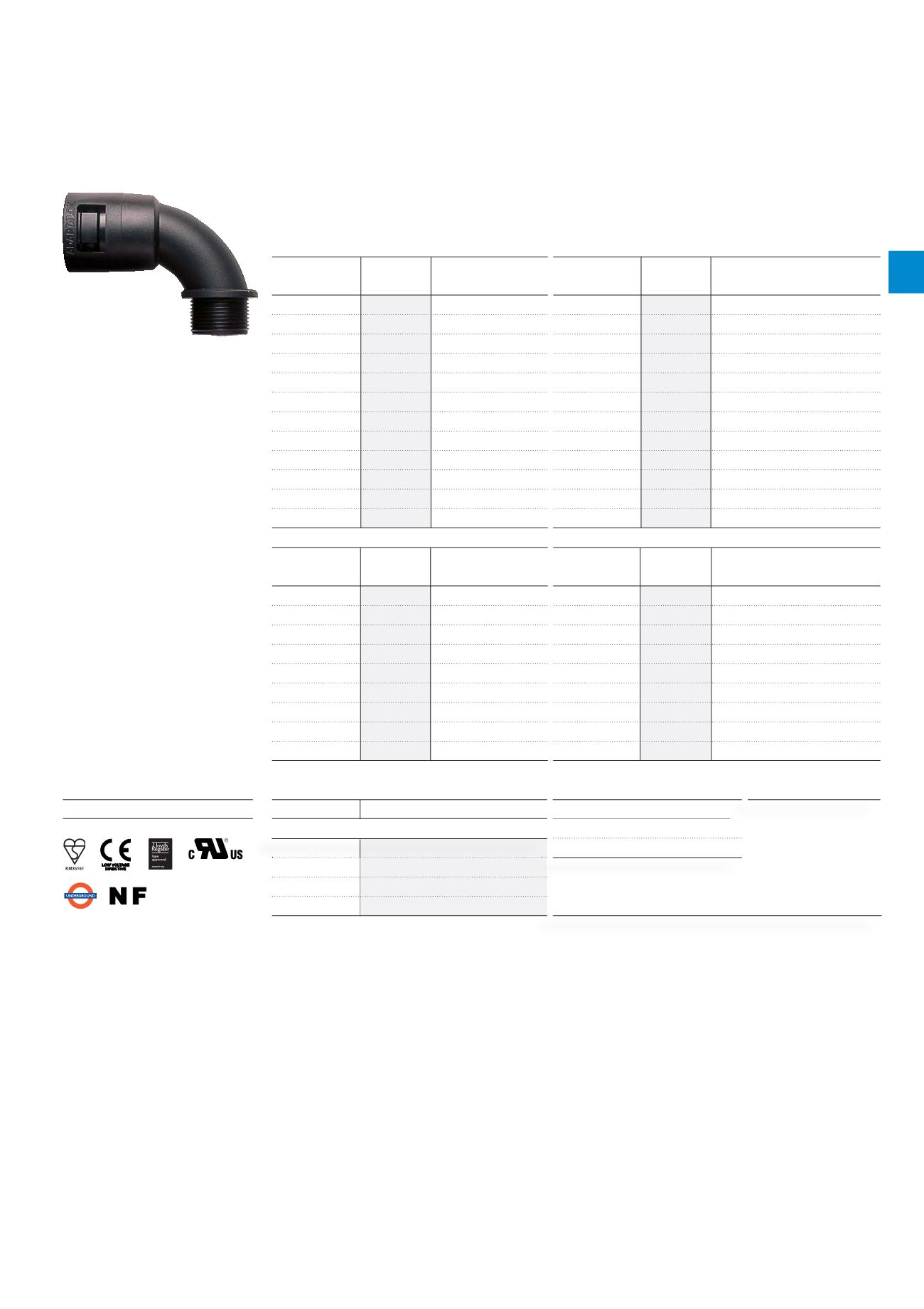

Type C90 - Adaptalok
90º Elbow Fitting - Fixed External Male Thread
/
For insertion into knockouts using a locknut. Locknut supplied with METRIC THREAD ONLY
Materials:
Polyamide (Nylon) 66 /
Colour:
Black (BL), Grey (GR)
Nominal
Metric
Nominal
PG
Part No.
Conduit Size Thread
Part No.
Conduit Size Thread
AL10/M12/C90
10mm
M12
AL10/PG7/C90
10mm
PG7
AL13/M16/C90
13mm
M16
AL13/PG9/C90 13mm
PG9
AL16/M16/C90
16mm
M16
AL16/PG9/C90 16mm
PG9
AL16/M20/C90
16mm
M20
AL16/PG11/C90 16mm
PG11
AL16/PG13/C90 16mm
PG13.5
AL21/M20/C90
21mm
M20
AL21/PG13/C90 21mm
PG13.5
AL21/PG16/C90 21mm
PG16
AL28/M25/C90
28mm
M25
AL28/PG21/C90 28mm
PG21
AL34/M32/C90
34mm
M32
AL34/PG29/C90 34mm
PG29
AL42/M40/C90
42mm
M40
AL42/PG36/C90 42mm
PG36
AL54/M50/C90
54mm
M50
AL54/PG48/C90 54mm
PG48
AL54/M63/C90
54mm
M63
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Approvals
Type C90
90º Elbow Fitting
