2

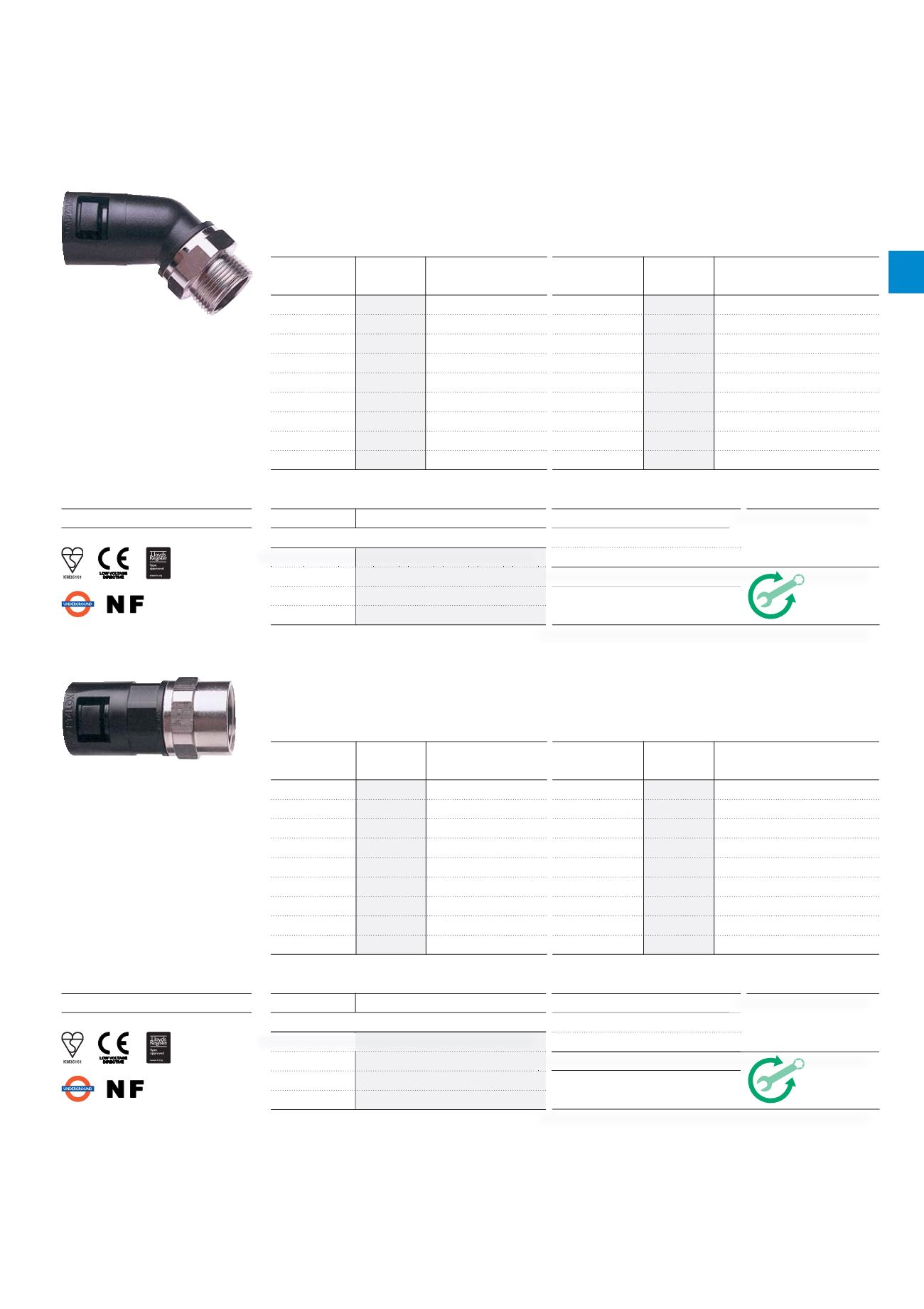

Non-metallic conduit systems
Type S45 & SFA - Adaptalok
IP Rating
Appropriate Conduit
For use with:
Type PA / PI / CP / PR / PF
IP66
Yes
IP67
Yes + ALS Seal
IP68
Yes + ALS Seal
IP69K
Yes + ALS Seal
Type S45 - Adaptalok
45º Elbow Body - Swivel External Male Thread
/
For insertion into threaded entries & knockouts using a locknut. Order locknut separately
Materials:
Polyamide (Nylon) 66, Nickel Plated Brass Thread /
Colour:
Black (BL), Grey (GR)
Nominal
Metric
Nominal
PG
Part No.
Conduit Size Thread
Part No.
Conduit Size Thread
AL13/M16/S45
13mm
M16
AL13/PG9/S45
13mm
PG9
AL16/M16/S45
16mm
M16
AL16/PG11/S45
16mm
PG11
AL21/M20/S45 21mm
M20
AL21/PG13/S45
21mm
PG13.5
AL21/PG16/S45
21mm
PG16
AL28/M25/S45 28mm
M25
AL28/PG21/S45 28mm
PG21
AL34/M32/S45 34mm
M32
AL34/PG29/S45 34mm
PG29
AL42/M40/S45 42mm
M40
AL42/PG36/S45 42mm
PG36
AL54/M50/S45 54mm
M50
AL54/PG48/S45 54mm
PG48
AL54/M63/S45 54mm
M63
To order quote part number & body colour, e.g. AL13/M16/S45/BL
NPT also available
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Type S45
45º Elbow Body
IP Rating
Appropriate Conduit
For use with:
Type PA / PI / CP / PR / PF
IP66
Yes
IP67
Yes + ALS Seal
IP68
Yes + ALS Seal
IP69K
Yes + ALS Seal
Type SFA - Adaptalok
Straight Body - Swivel Internal Female Thread
/
For attaching to external threads & other fittings
Materials:
Polyamide (Nylon) 66, Nickel Plated Brass Thread /
Colour:
Black (BL), Grey (GR)
Nominal
Metric
Nominal
PG
Part No.
Conduit Size Thread
Part No.
Conduit Size Thread
AL13/M16/SFA
13mm
M16
AL13/PG9/SFA
13mm
PG9
AL16/M16/SFA
16mm
M16
AL16/PG11/SFA
16mm
PG11
AL21/M20/SFA
21mm
M20
AL21/PG13/SFA
21mm
PG13.5
AL21/PG16/SFA
21mm
PG16
AL28/M25/SFA
28mm
M25
AL28/PG21/SFA
28mm
PG21
AL34/M32/SFA 34mm
M32
AL34/PG29/SFA
34mm
PG29
AL42/M40/SFA
42mm
M40
AL42/PG36/SFA
42mm
PG36
AL54/M50/SFA 54mm
M50
AL54/PG48/SFA 54mm
PG48
AL54/M63/SFA 54mm
M63
To order quote part number & body colour, e.g. AL13/M16/SFA/BL
NPT also available
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Type SFA
Straight Body
