35 / 156
Adaptaflex Product Catalogue |
LIT211GB 0715
2/21
2
Non-metallic conduit systems
UNEF Type A
IP Rating
Appropriate Conduit
For use with:
Type PA / PI / CP / PR / PF
IP66
Yes
IP67
Yes + ALS Seal
IP68
Yes + ALS Seal
IP69K
Yes + ALS Seal
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals

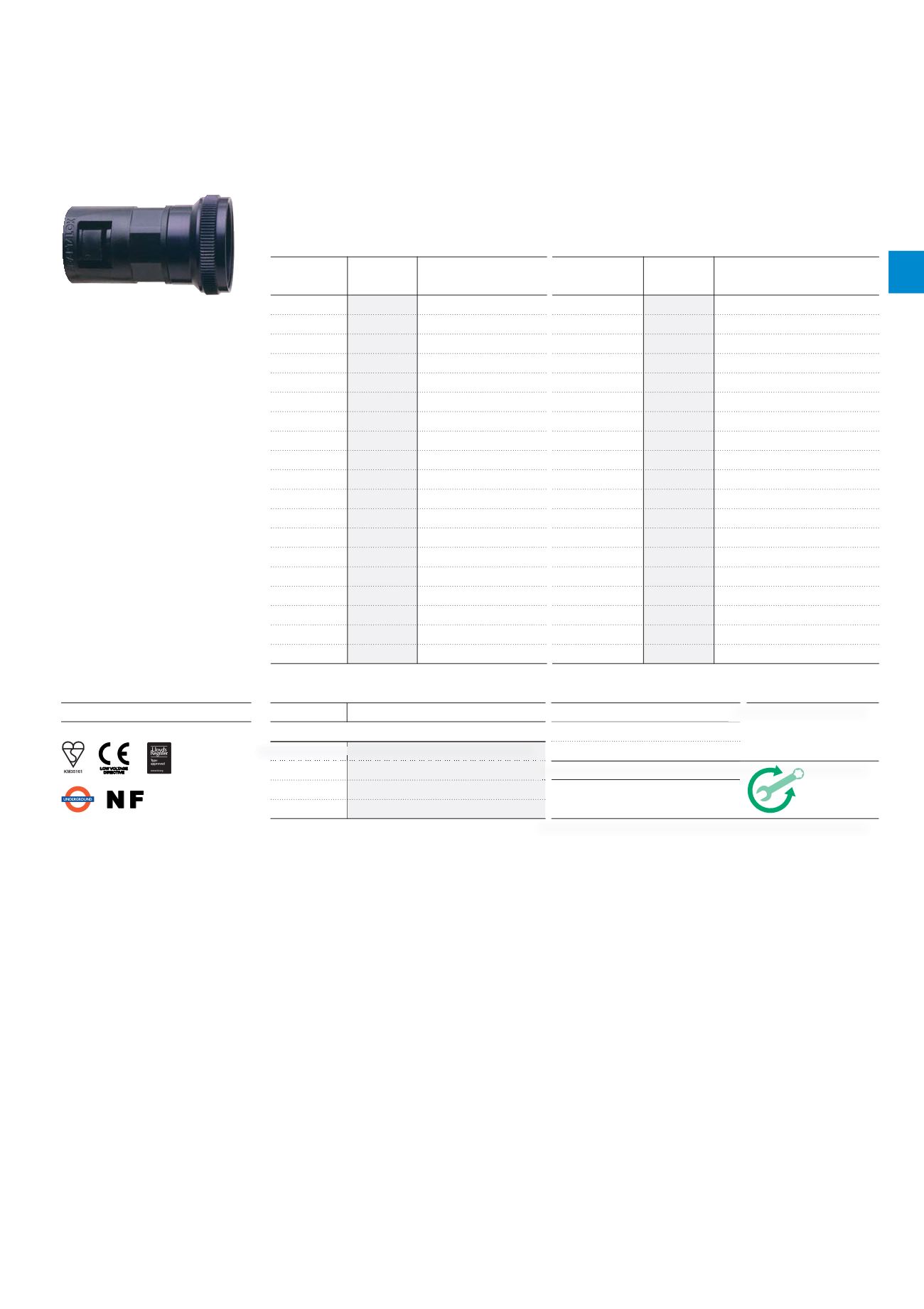

UNEF Type A - Adaptalok
Straight Body - Swivel Internal Female Thread
/
For coupling to UNEF circular connectors
Materials:
Polyamide (Nylon) 66 & Aluminium /
Colour:
Black (BL) Only
Nominal
Connector
Nominal
Connector
Part No.
Conduit Size UNEF Thread
Part No.
Conduit Size UNEF Thread
AL13/U063/A 13mm
5/8” - 24
AL21/U144/A
21mm
1 7/16” - 18
AL13/U075/A 13mm
3/4” - 20
AL21/U175/A
21mm
1 3/4” - 18
AL13/U088/A 13mm
7/8” - 20
AL28/U088/A
28mm
7/8” - 20
AL16/U063/A 16mm
5/8” - 24
AL28/U094/A
28mm
15/16” - 20
AL16/U075/A 16mm
3/4” - 20
AL28/U100/A
28mm
1” - 20
AL16/U081/A 16mm
13/16” - 20
AL28/U119/A
28mm
1 3/16” - 18
AL16/U088/A 16mm
7/8” - 20
AL28/U138/A
28mm
1 3/8” - 18
AL16/U094/A 16mm
15/16” - 20
AL28/U144/A
28mm
1 7/16” - 18
AL16/U100/A 16mm
1” - 20
AL28/U175/A
28mm
1 3/4” - 18
AL16/U119/A 16mm
1 3/16” - 18
AL28/U200/A
28mm
2” - 16
AL16/U131/A 16mm
1 5/16” - 18
AL28/U225/A
28mm
2 1/4” - 16
AL21/U075/A 21mm
3/4” - 20
AL34/U100/A
34mm
1” - 20
AL21/U088/A 21mm
7/8” - 20
AL34/U119/A
34mm
1 3/16” - 18
AL21/U094/A 21mm
15/16” - 20
AL34/U144/A
34mm
1 7/16” - 18
AL21/U100/A 21mm
1” - 20
AL34/U175/A
34mm
1 3/4” - 18
AL21/U113/A 21mm
1 1/8” - 18
AL34/U200/A
34mm
2” - 16
AL21/U119/A 21mm
1 3/16” - 18
AL42/U175/A
42mm
1 3/4” - 18
AL21/U131/A 21mm
1 5/16” - 18
AL42/U200/A
42mm
2” - 16
AL21/U138/A 21mm
1 3/8” - 18
To order quote part number, e.g. AL13/U063/A and add 000620
UNEF Type A
Straight Body
