Adaptaflex Product Catalogue |
LIT211GB 0715
2
Non-metallic conduit systems
UNEF Type C90 - Adaptalok
IP Rating
Appropriate Conduit
For use with:
Type PA / PI / CP / PR / PF
IP66
Yes
IP67
Yes + ALS Seal
IP68
Yes + ALS Seal
IP69K
Yes + ALS Seal
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals

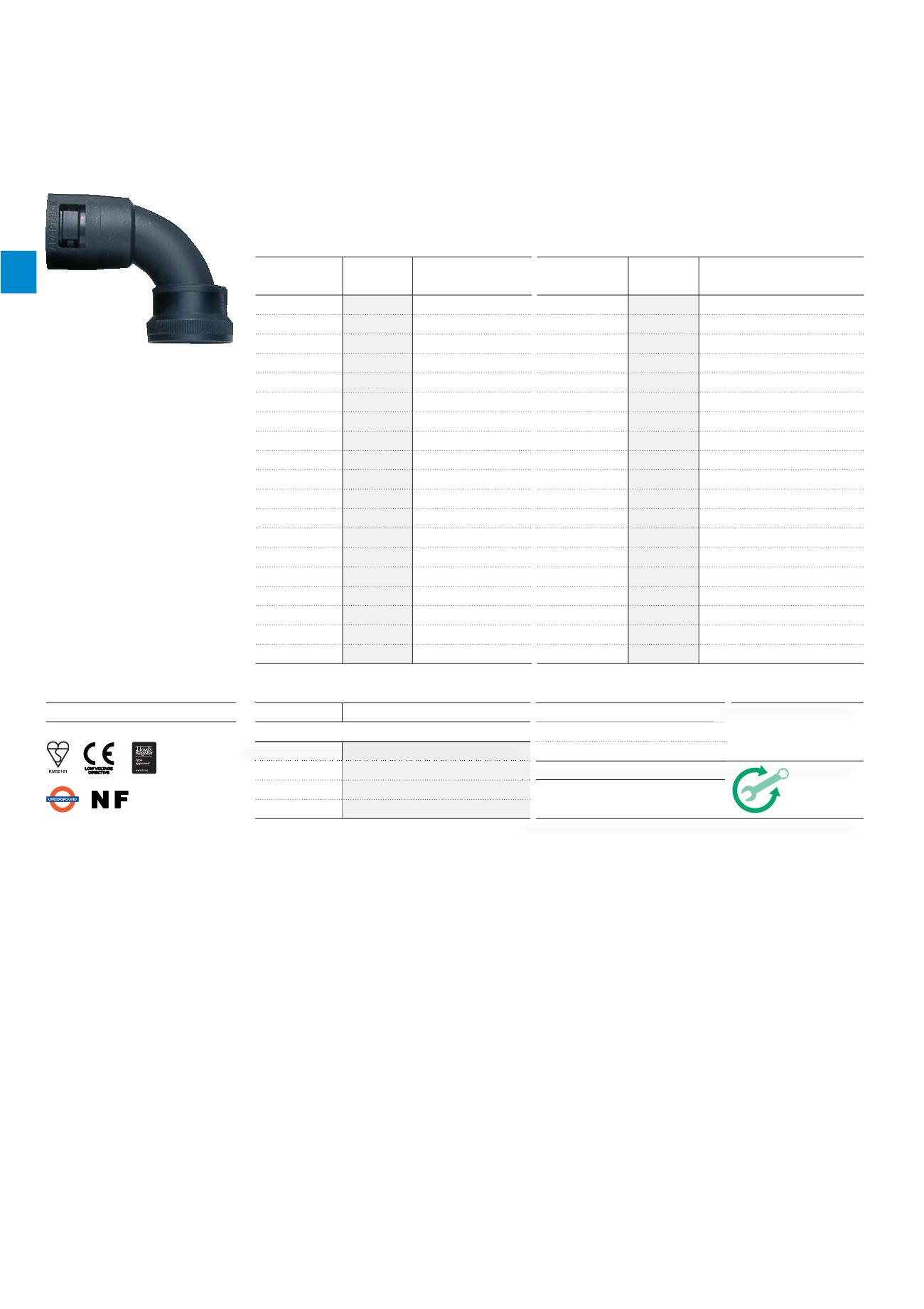

UNEF Type C90 - Adaptalok
90° Elbow Body - Swivel Internal Female Thread
/
For coupling to UNEF circular connectors
Materials:
Polyamide (Nylon) 66 & Aluminium /
Colour:
Black (BL) Only
Nominal
Connector
Nominal
Connector
Part No.
Conduit Size UNEF Thread
Part No.
Conduit Size UNEF Thread
AL13/U063/C90 13mm
5/8” - 24
AL21/U144/C90
21mm
1 7/16” - 18
AL13/U075/C90 13mm
3/4” - 20
AL21/U175/C90
21mm
1 3/4” - 18
AL13/U088/C90 13mm
7/8” - 20
AL28/U088/C90 28mm
7/8” - 20
AL16/U063/C90 16mm
5/8” - 24
AL28/U094/C90 28mm
15/16” - 20
AL16/U075/C90 16mm
3/4” - 20
AL28/U100/C90
28mm
1” - 20
AL16/U081/C90 16mm
13/16” - 20
AL28/U119/C90
28mm
1 3/16” - 18
AL16/U088/C90 16mm
7/8” - 20
AL28/U138/C90
28mm
1 3/8” - 18
AL16/U094/C90 16mm
15/16” - 20
AL28/U144/C90
28mm
1 7/16” - 18
AL16/U100/C90 16mm
1” - 20
AL28/U175/C90
28mm
1 3/4” - 18
AL16/U119/C90 16mm
1 3/16” - 18
AL28/U200/C90 28mm
2” - 16
AL16/U131/C90 16mm
1 5/16” - 18
AL28/U225/C90 28mm
2 1/4” - 16
AL21/U075/C90 21mm
3/4” - 20
AL34/U100/C90
34mm
1” - 20
AL21/U088/C90 21mm
7/8” - 20
AL34/U119/C90
34mm
1 3/16” - 18
AL21/U094/C90 21mm
15/16” - 20
AL34/U144/C90 34mm
1 7/16” - 18
AL21/U100/C90 21mm
1” - 20
AL34/U175/C90
34mm
1 3/4” - 18
AL21/U113/C90 21mm
1 1/8” - 18
AL34/U200/C90 34mm
2” - 16
AL21/U119/C90 21mm
1 3/16” - 18
AL42/U175/C90
42mm
1 3/4” - 18
AL21/U131/C90 21mm
1 5/16” - 18
AL42/U200/C90 42mm
2” - 16
AL21/U138/C90 21mm
1 3/8” - 18
To order quote part number, e.g. AL13/U065/C90 and add 000620
UNEF Type C90
90º Elbow Body
