Adaptaflex Product Catalogue |
LIT211GB 0715
2
Non-metallic conduit systems
Type SA & CS90 - Adaptalok
IP Rating
Appropriate Conduit
For use with:
Type PA / PI / CP / PR / PF
IP66
Yes
IP67
Yes + ALS Seal
IP68
Yes + ALS Seal
IP69K
Yes + ALS Seal

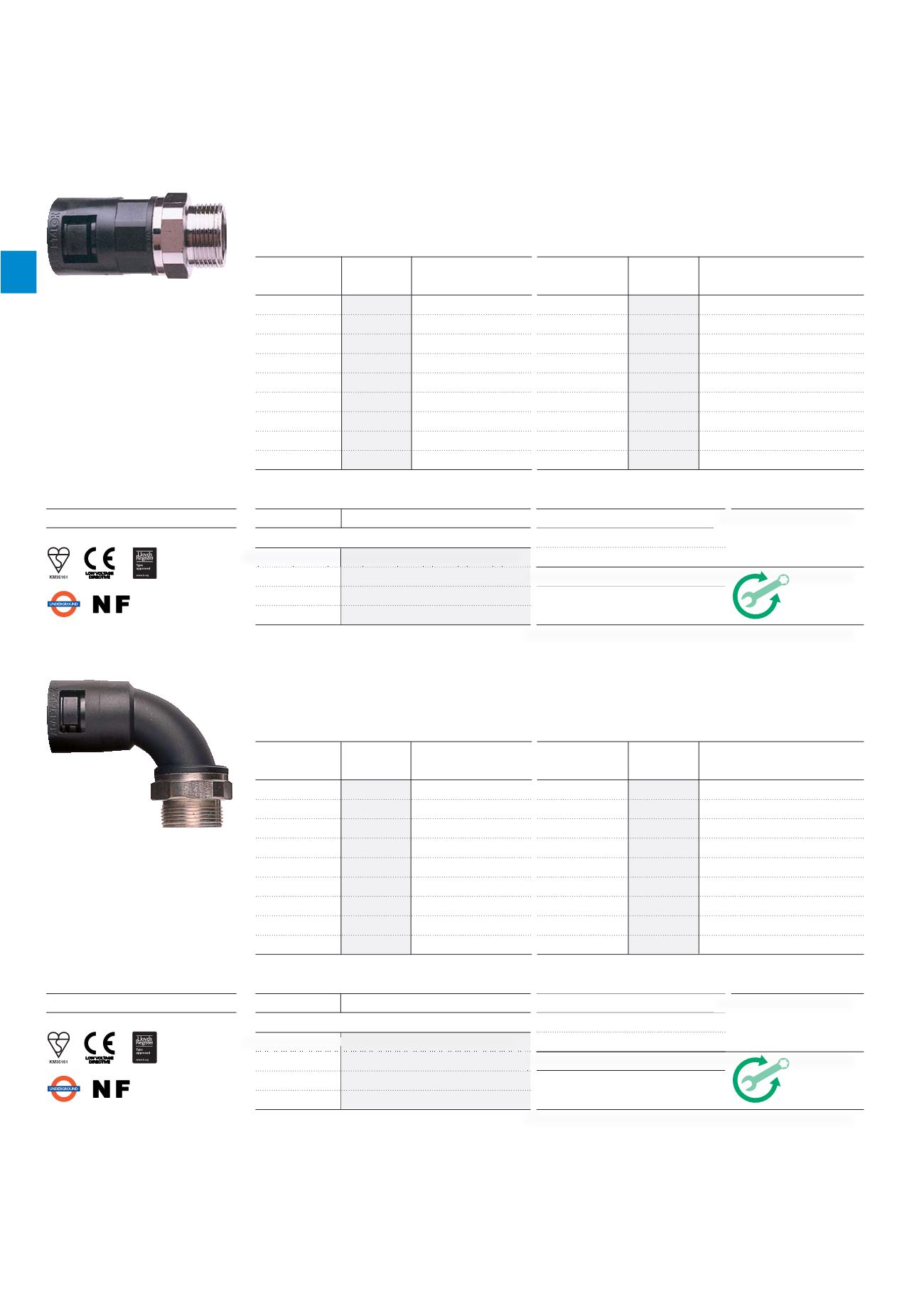

Type SA - Adaptalok
Straight Fitting - Swivel External Male Thread
/
For insertion into threaded entries & knockouts using a locknut. Order locknut separately
Materials:
Polyamide (Nylon) 66, Nickel Plated Brass Thread /
Colour:
Black (BL), Grey (GR)
Nominal
Metric
Nominal
PG
Part No.
Conduit Size Thread
Part No.
Conduit Size Thread
AL13/M16/SA
13mm
M16
AL13/PG9/SA
13mm
PG9
AL16/M16/SA
16mm
M16
AL16/PG11/SA
16mm
PG11
AL21/M20/SA
21mm
M20
AL21/PG13/SA
21mm
PG13.5
AL21/PG16/SA
21mm
PG16
AL28/M25/SA
28mm
M25
AL28/PG21/SA
28mm
PG21
AL34/M32/SA
34mm
M32
AL34/PG29/SA
34mm
PG29
AL42/M40/SA
42mm
M40
AL42/PG36/SA
42mm
PG36
AL54/M50/SA
54mm
M50
AL54/PG48/SA
54mm
PG48
AL54/M63/SA
54mm
M63
To order quote part number & body colour, e.g. AL13/M16/SA/BL
NPT also available
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Type SA
Straight Fitting
IP Rating
Appropriate Conduit
For use with:
Type PA / PI / CP / PR / PF
IP66
Yes
IP67
Yes + ALS Seal
IP68
Yes + ALS Seal
IP69K
Yes + ALS Seal
Type CS90 - Adaptalok
90º Elbow Fitting - Swivel External Male Thread
/
For insertion into threaded entries & knockouts using a locknut. Order locknut separately
Materials:
Polyamide (Nylon) 66, Nickel Plated Brass Thread /
Colour:
Black (BL), Grey (GR)
Nominal
Metric
Nominal
PG
Part No.
Conduit Size Thread
Part No.
Conduit Size Thread
AL13/M16/CS90 13mm
M16
AL13/PG9/CS90
13mm
PG9
AL16/M16/CS90 16mm
M16
AL16/PG11/CS90 16mm
PG11
AL21/M20/CS90 21mm
M20
AL21/PG13/CS90 21mm
PG13.5
AL21/PG16/CS90 21mm
PG16
AL28/M25/CS90 28mm
M25
AL28/PG21/CS90 28mm
PG21
AL34/M32/CS90 34mm
M32
AL34/PG29/CS90 34mm
PG29
AL42/M40/CS90 42mm
M40
AL42/PG36/CS90 42mm
PG36
AL54/M50/CS90 54mm
M50
AL54/PG48/CS90 54mm
PG48
AL54/M63/CS90 54mm
M63
To order quote part number & body colour, e.g. AL13/M16/CS90/BL
NPT also available
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Fitting Characteristics
Approvals
Type CS90
90º Elbow Fitting
