Adaptaflex Product Catalogue |
LIT211GB 0715
2
Non-metallic conduit systems
Type 45 & Push-in - Adaptalok
IP Rating
Appropriate Conduit
For use with:
Type PA / PI / CP / PR / PF
IP66
Yes
IP67
Yes + ALS Seal
IP68
Yes + ALS Seal
IP69K
Yes + ALS Seal

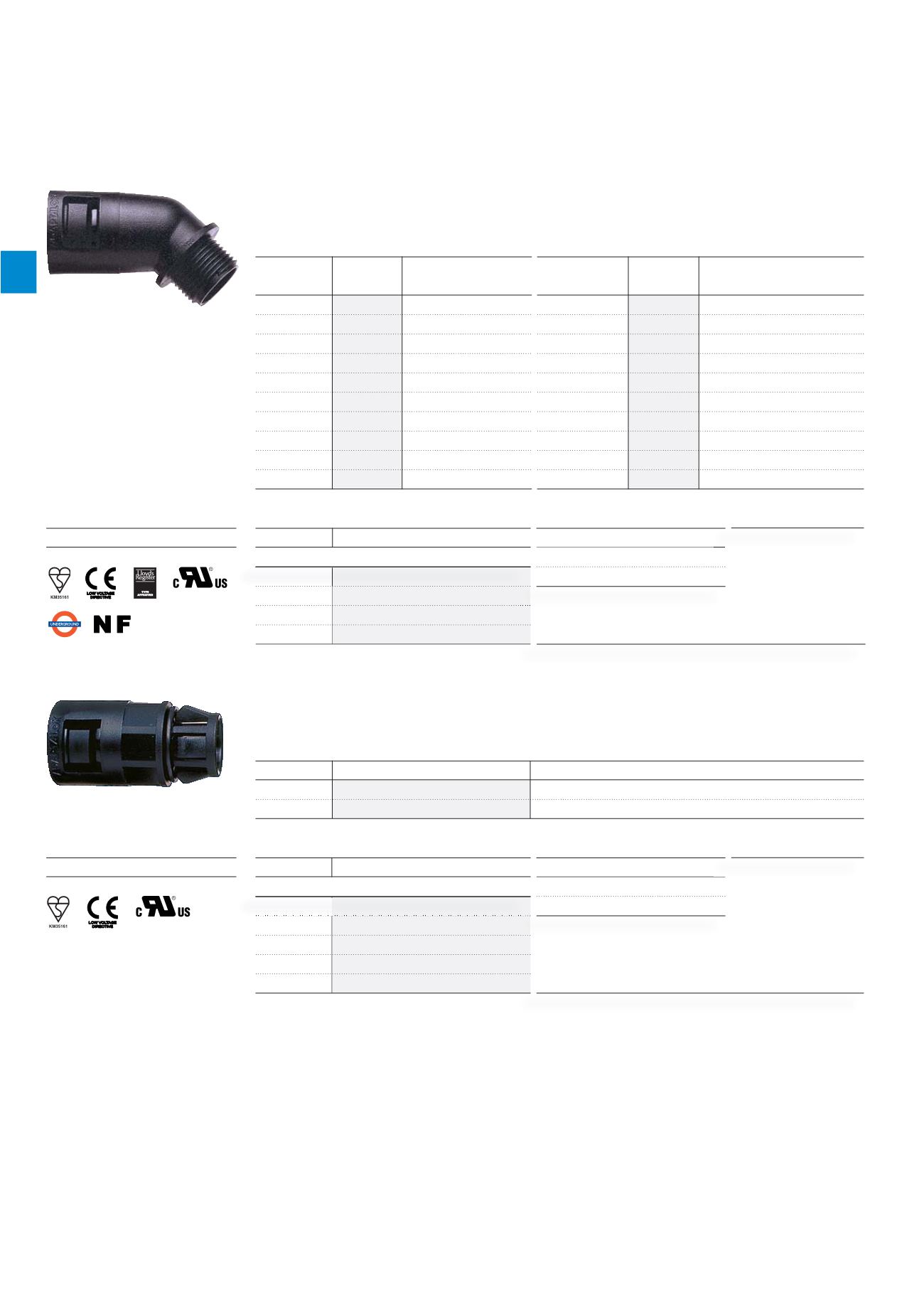

Type 45 - Adaptalok
45º Elbow Fitting - Fixed External Male Thread
/
For insertion into knockouts using a locknut. Locknut supplied with METRIC THREAD ONLY
Materials:
Polyamide (Nylon) 66 /
Colour:
Black (BL), Grey (GR)
Nominal
Metric
Nominal
PG
Part No.
Conduit Size Thread
Part No.
Conduit Size Thread
AL13/M16/45 13mm
M16
AL13/PG9/45
13mm
PG9
AL16/M16/45 16mm
M16
AL16/PG11/45
16mm
PG11
AL16/M20/45 16mm
M20
AL16/PG13/45
16mm
PG13.5
AL21/M20/45 21mm
M20
AL21/PG13/45
21mm
PG13.5
AL21/PG16/45
21mm
PG16
AL28/M25/45 28mm
M25
AL28/PG21/45
28mm
PG21
AL34/M32/45 34mm
M32
AL34/PG29/45
34mm
PG29
AL42/M50/45 42mm
M40
AL42/PG36/45
42mm
PG36
AL54/M50/45 54mm
M50
AL54/PG48/45
54mm
PG48
AL54/M63/45 54mm
M63
To order quote part number & body colour, e.g. AL21/M20/45/BL
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Approvals
Type 45
45º Elbow Fitting
IP Rating
Appropriate Conduit
For use with:
Type PA / PI / CP / PR / PF
IP40
Yes
IP66
N/A
IP67
N/A
IP68
N/A
IP69K
N/A
Push-in - Adaptalok
Straight Fitting
/
Inserts into a 20mm knockout, panel thickness up to 4mm, no locknut required
Materials:
Polyamide (Nylon) 66 /
Colour:
Black (BL), Grey (GR)
Part No.
Nominal Conduit Size
AL16/KM20/A 16mm
AL21/KM20/A 21mm
To order quote part number & body colour, e.g. AL21/KM20/A/BL
Temperature Range
Static Applications: -50ºC to +120ºC
Moving Applications: -45ºC to +120ºC
Approvals
Push-in
Straight Fitting
TYPE
APPROVED
