C-9
Enclosures
600 mm deep switchboard
For switchboards with front
connections.
b
front panels
Any of the following can be installed
in front of the hinged front
plate support frame:
v
a transparent door (IP30 or IP55)
v
a plain door (IP30 or IP55)
v
a fixed cover frame (IP30)
b
rear panel = screw-on panel
b
side panels = set of two panels
b
plain roof
b
gland plates (plain or in two parts).
DD380556

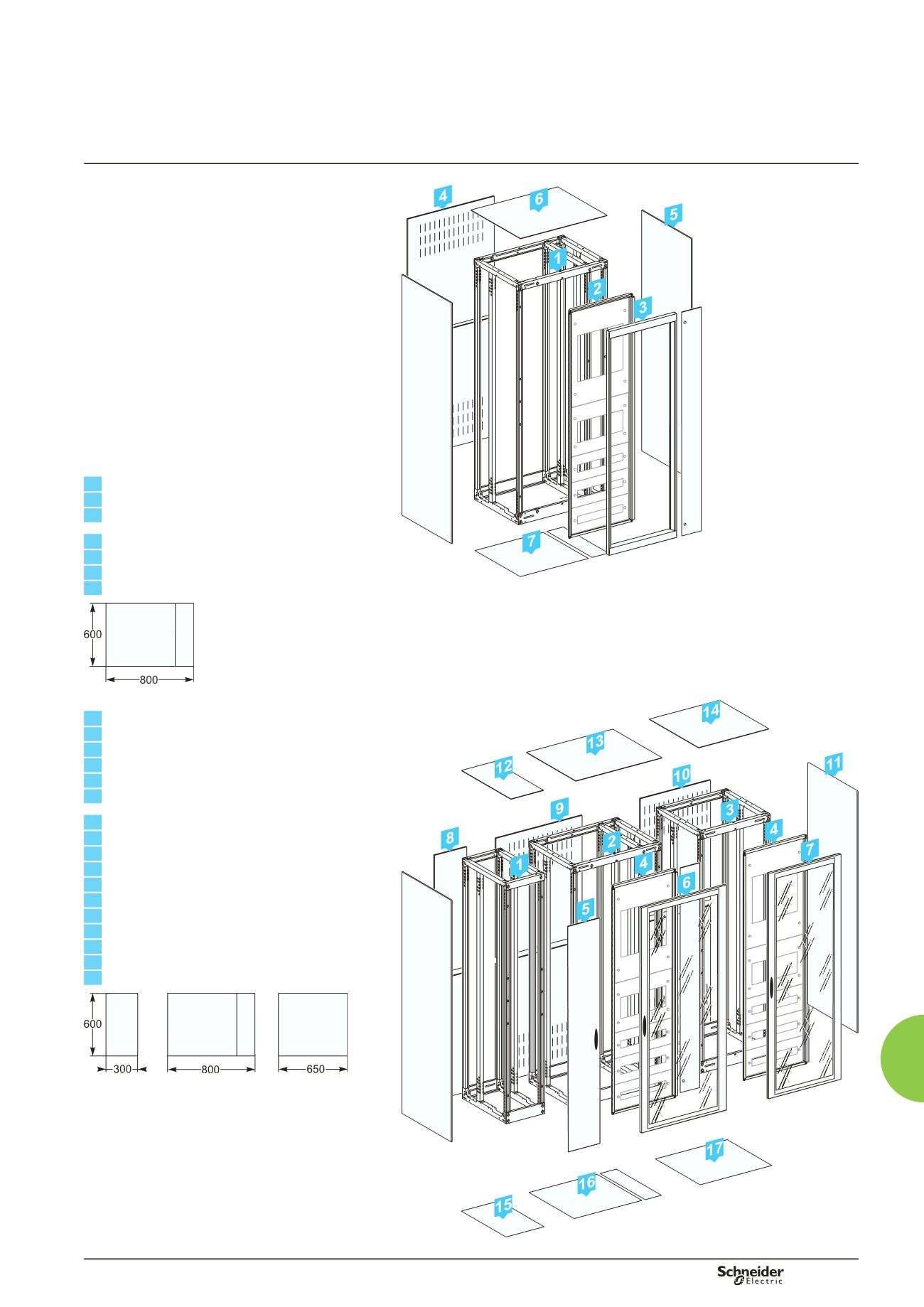

Parts list for switchboard 1
1
08607:
framework, W = 800, D = 600, H = 2000
2
08566
:
front plate support frame, W = 650
3
08578
:
fixed cover frame, W = 800 (supplied with
a wicket door, W = 150)
4
08738:
rear panel, W = 800 (two half panels)
5
08760:
set of two side panels, D = 600
6
08638:
plain roof, W = 800, D = 600
7
08687:
plain gland plate, W = 800, D = 600
Switchboard 1 - IP30 cubicle with cover frame, W = 800.
DD380609
Parts list for switchboard 2
DD380557
1
08603:
framework, W = 300, D = 600, H = 2000
2
08607:
framework, W = 800, D = 600, H = 2000
3
08606:
framework, W = 650, D = 600, H = 2000
4
08566
:
front plate support frame, W = 650
5
08513
:
plain door, W = 300
6
08538
:
transparent door, W = 800 (supplied with barrier
for busbar compartment, W = 150)
7
08536
:
transparent door, W = 650
8
08733:
rear panel, W = 300 (two half panels)
9
08738:
rear panel, W = 800 (two half panels)
10
08736:
rear panel, W = 650 (two half panels)
11
08760:
set of two side panels, D = 600
12
08633:
plain roof, W = 300, D = 600
13
08638:
plain roof, W = 800, D = 600
14
08636:
plain roof, W = 650, D = 600
15
08683:
plain gland plate, W = 300, D = 600
16
08687:
plain gland plate, W = 800, D = 600
17
08686:
plain gland plate, W = 650, D = 600
DD380611
Switchboard 2 - combination of IP30 cubicles with transparent doors.
