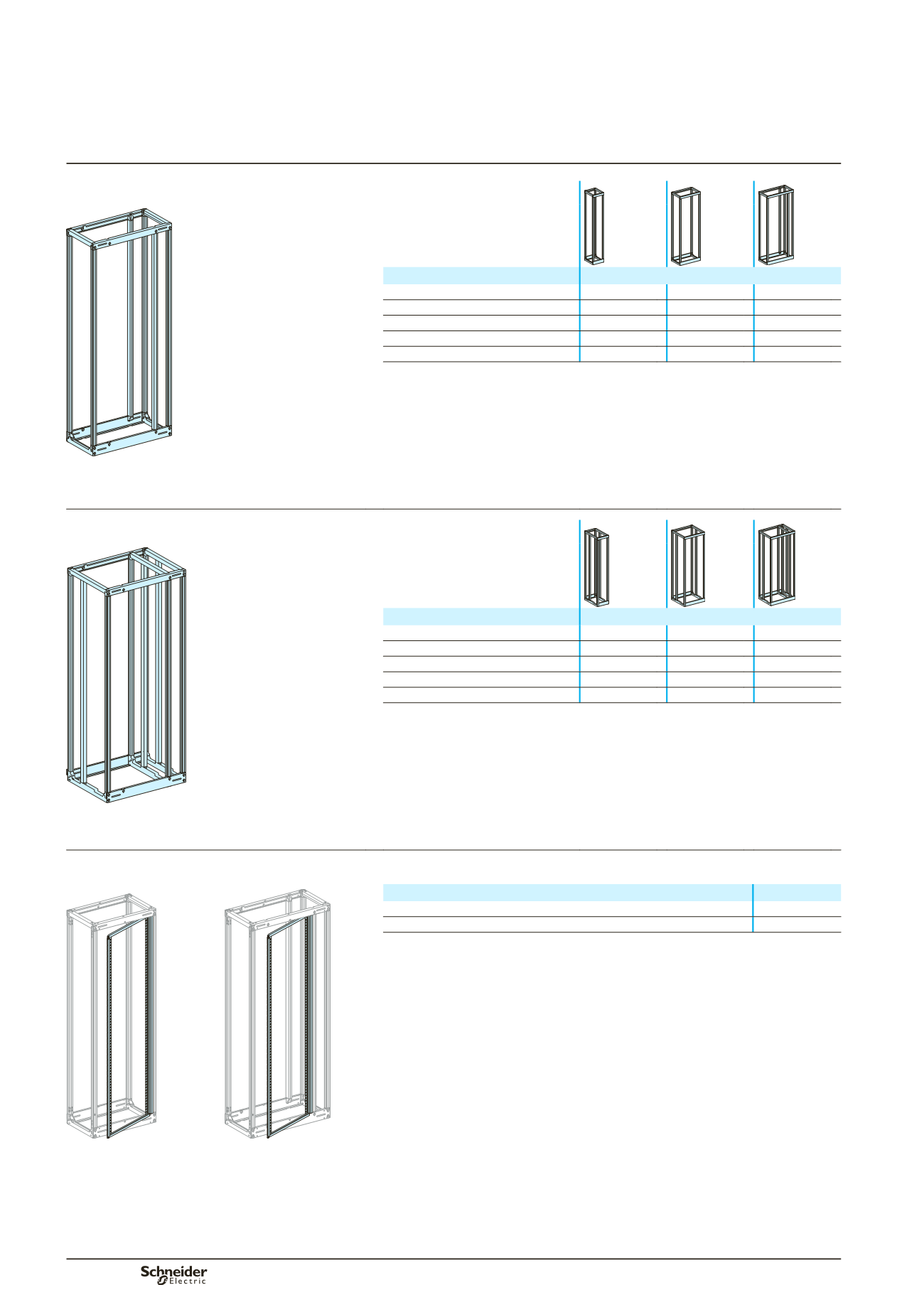

Enclosures
400 mm deep framework
DD380572
DD380573
DD380574
DD380800
Framework width
Cat. no.
W
= 300 mm
08403
W
= 400 mm
08404
W
= 650 mm
08406
W
= 800 mm
08408
W
= 800 mm (650 + 150)
08407
composition of catalogue numbers:
two frames (with two additional uprights for W = 650 + 150 mm cubicles for the
mounting plates and to separate the busbar compartment)
four cross-pieces
mounting hardware
side-by-side combination kit
for the 800 mm width, the busbar compartment can be on the left or right
cubicles can be combined side-by-side and back-to-back
can be equipped with IP30 or IP55 cover panels.
b
v
v
v
v
b
b
b
08407.
600 mm deep framework
DD380575
DD380576
DD380577
DD380801
Framework width
Cat. no.
W
= 300 mm
08603
W
= 400 mm
08604
W
= 650 mm
08606
W
= 800 mm
08608
W
= 800 mm (650 + 150)
08607
composition of catalogue numbers:
two frames (three for W = 650 + 150 mm cubicles), equipped with intermediate
uprights for the mounting plates
four cross-pieces
mounting hardware
side-by-side combination kit
for the 800 mm width, the busbar compartment can be on the left or right
cubicles can be combined side-by-side and back-to-back
can be equipped with IP30 or IP55 cover panels.
b
v
v
v
v
b
b
b
08607.
Hinged front plate support frame
DD381323
DD31324
Designation
Cat. no.
Hinged front plate support frame, W = 400mm
08564
(1)
Hinged front plate support frame, W = 650mm
08566
(2)
(1)
Replaces catalogue number
08504.
(2)
Replaces catalogue number
08506
.
reversible for left or right-hand opening
secured at two points
can be mounted on 650 mm and 800 mm (650 + 150) wide cubicles.
b
b
b
08564
(1)
.
08566
(2)
.
