220 / 356
C-8
Enclosures
400 mm deep switchboard
For switchboards with front
connections.
b
front panels
Any of the following can be installed
in front of the hinged front plate support frame:
v
a transparent door (IP30 or IP55)
v
a plain door (IP30 or IP55)
v
a fixed cover frame (IP30)
b
rear panel = screw-on panel
b
side panels = set of two panels
b
plain roof
b
gland plates (plain or in two parts).
DD380554

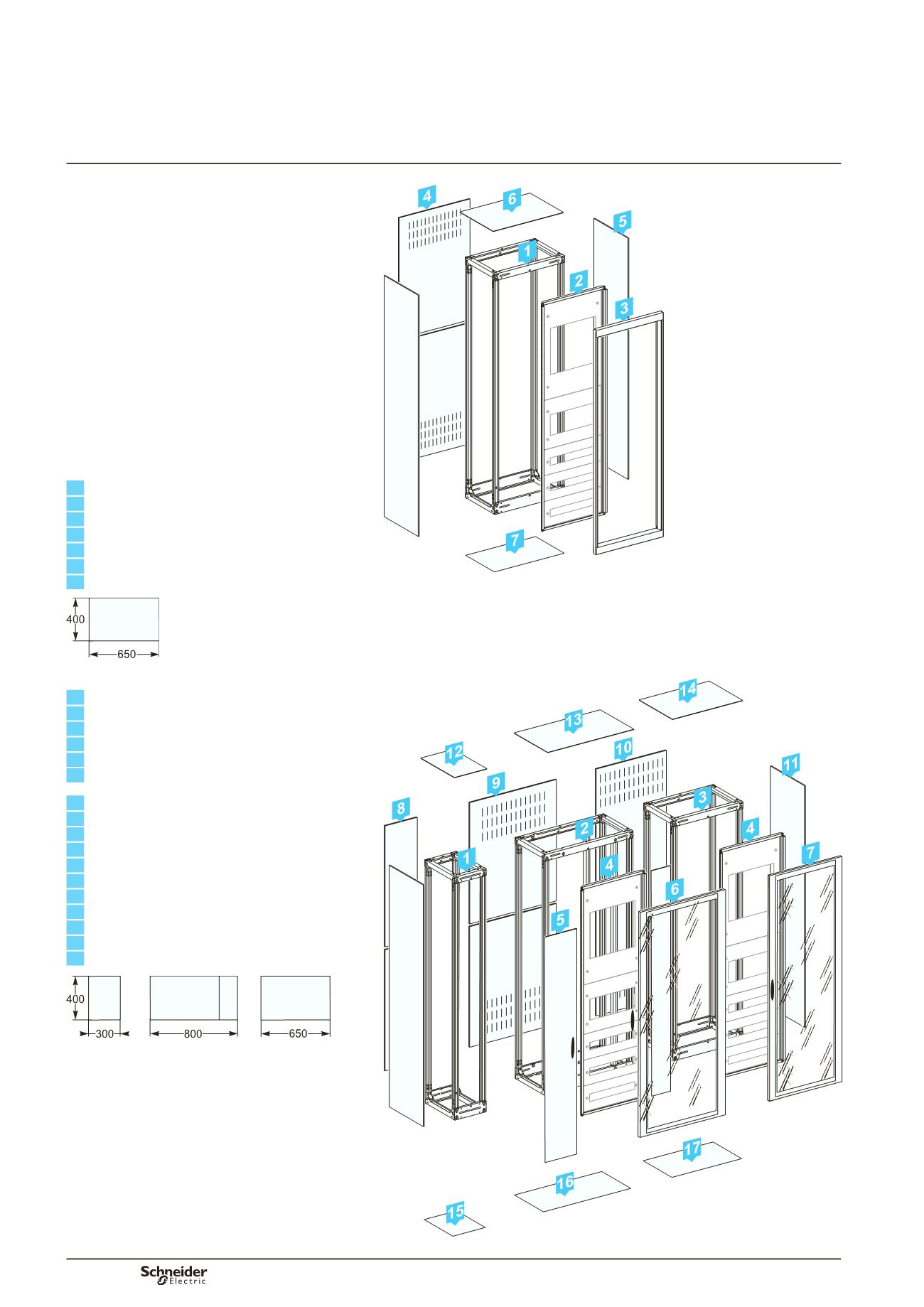

Parts list for switchboard 1
1
08406:
framework, W = 650, D = 400, H = 2000
2
08566
:
front plate support frame, W = 650
3
08576
:
cover frame, W = 650
4
08736:
rear panel, W = 650 (two half panels)
5
08750:
set of two side panels, D = 400
6
08436:
plain roof, W = 650, D = 400
7
08486:
plain gland plate, W = 650, D = 400
Switchboard 1 - IP30 cubicle with cover frame, W = 650.
DD380607
Parts list for switchboard 2
DD380555
1
08403:
framework, W = 300, D = 400, H = 2000
2
08407:
framework, W = 800, D = 400, H = 2000
3
08406:
framework, W = 650, D = 400, H = 2000
4
08566
:
front plate support frame, W = 650
5
08513
:
plain door, W = 300
6
08538
:
transparent door, W = 800 (supplied with barrier
for busbar compartment, W = 150)
7
08536
:
transparent door, W = 650
8
08733:
rear panel, W = 300 (two half panels)
9
08738:
rear panel, W = 800 (two half panels)
10
08736:
rear panel, W = 650 (two half panels)
11
08750:
set of two side panels, D = 400
12
08433:
plain roof, W = 300, D = 400
13
08438:
plain roof, W = 800, D = 400
14
08436:
plain roof, W = 650, D = 400
15
08483:
plain gland plate, W = 300, D = 400
16
08487:
plain gland plate, W = 800, D = 400
17
08486:
plain gland plate, W = 650, D = 400
DD380605
Switchboard 2 - combination of IP30 cubicles with transparent doors.
Cover panels
