C-4
Enclosures
PD390573

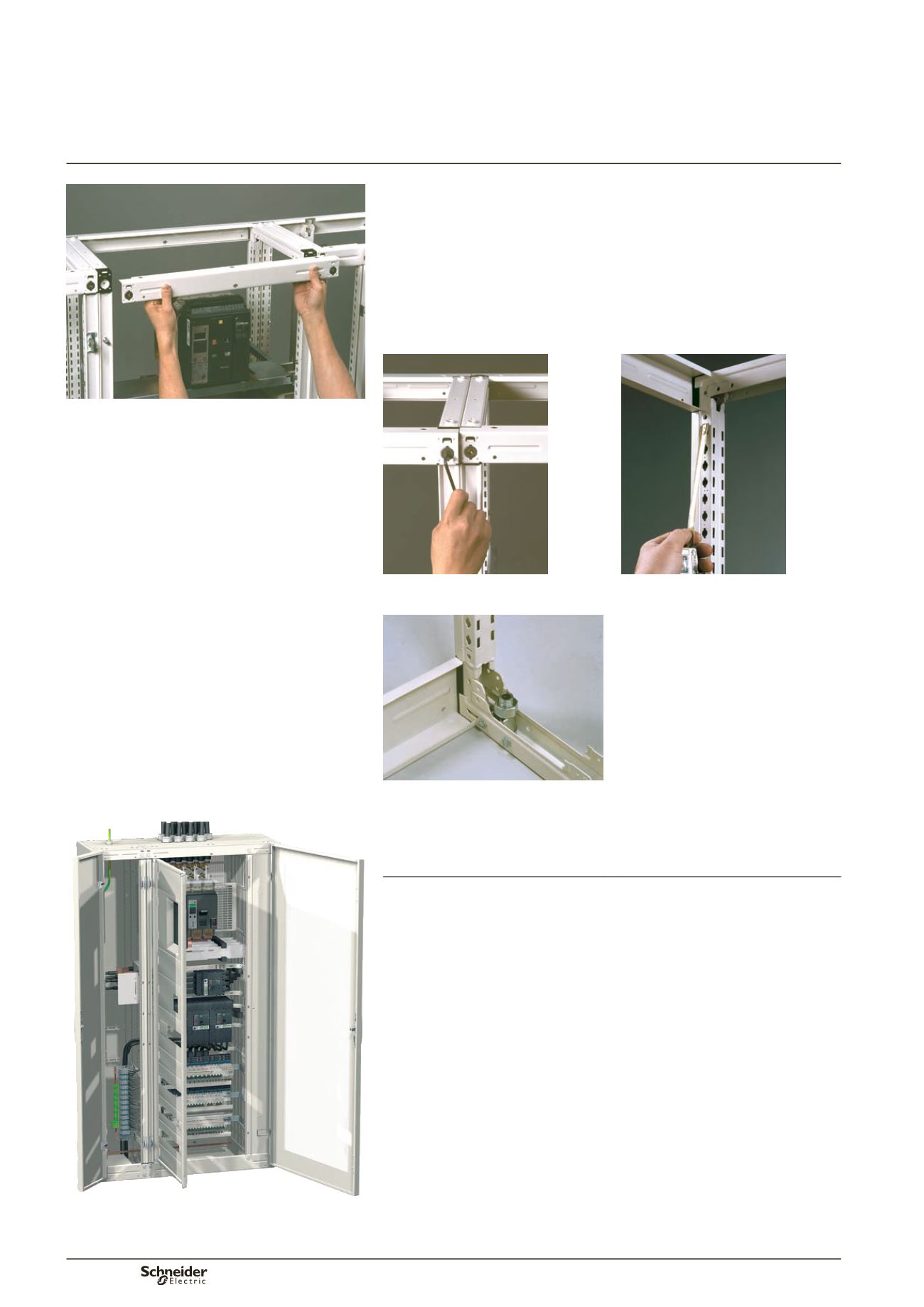

The framework
The framework is both light and rigid due to the closed sections used for the uprights.
The compact design of the framework means there is 15% more space available for
devices.
There are no sharp edges.
Assembly is particularly fast with only 12 screws, all directly access ble.
Uprights have wing holes every 25 mm.
Ameasuring tape can be hooked to a slot marking the starting point for
measurements on the heights required to mount devices. Marks every 50 mm and
double marks every 100 mm make it easy to count modules.
The floor fixing kit can also be used to level the cubicles.
PD390574
PD390575
Cross-pieces can be removed to facilitate work.
Only 12 screws, all directly accessible, are
required for assembly.
Marks make it easy to count the vertical
modules.
PD390576
The floor fixing kit can also be used to level the
cubicles.
PD391307
The front plates are equipped with clip-mount grips with a built-in quarter-turn
fastening system for fast handling and installation.
The lead-sealing function is directly integrated in the grip mechanism.
Hinged front plate support frame
This frame provides direct and fast access to the devices.
It is revers ble and has two factory-mounted hinges.
Only two screws are required to secure it to the framework.
By pivoting, the front plate support frame provides direct access
to devices.
IP30/31/55 cubicles
Presentation
