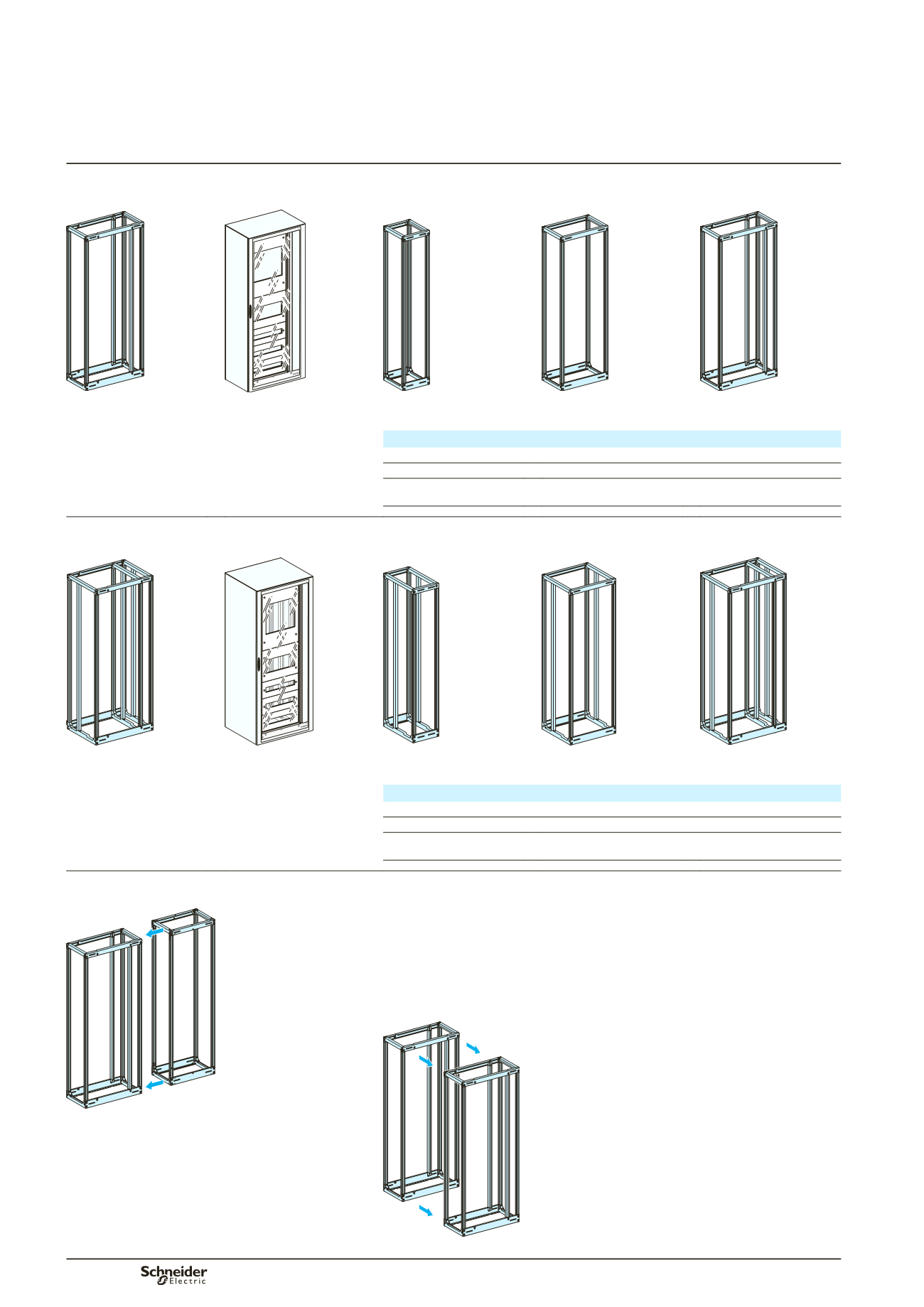

218 / 356
C-6
Enclosures
D400 frameworks
(depth 400 mm)
DD380570
DD380560
DD380561
DD380562
DD380563
W = 300/400
W = 650/800
W = 800 with a busbar
compartment
Dimensions of cubicle with cover panels
Height
2006 mm (capacity = 36 modules, each 50 mm high)
Width
Width of he framework + 56 mm
Depth
450 mm with screw-on rear panel + front door
476 mm with front and rear doors
D600 frameworks
(depth 600 mm)
DD380571
DD380564
DD380565
DD380566
DD380567
W = 300/400
W = 650/800
W = 800 with a busbar
compartment
Dimensions of cubicle with cover panels
Height
2006 mm (capacity = 36 modules, each 50 mm high)
Width
Width of he framework + 56 mm
Depth
650 mm with screw-on rear panel + front door
676 mm with front and rear doors
Framework combinations
Side-by-side
The 650 and 800 mm wide frameworks are supplied with a combination kit.
To maintain the IP55 degree of protection, an optional gasket must be installed
between the combined cubicles.
Back-to-back
An optional kit for back-to-back combinations is available. It is used to mechanically
connect the frameworks. It is supplied with a gasket to be installed between the
cubicles (for IP55).
DD380578
DD380579
IP30/31/55 cubicles
Presentation
