Enclosures

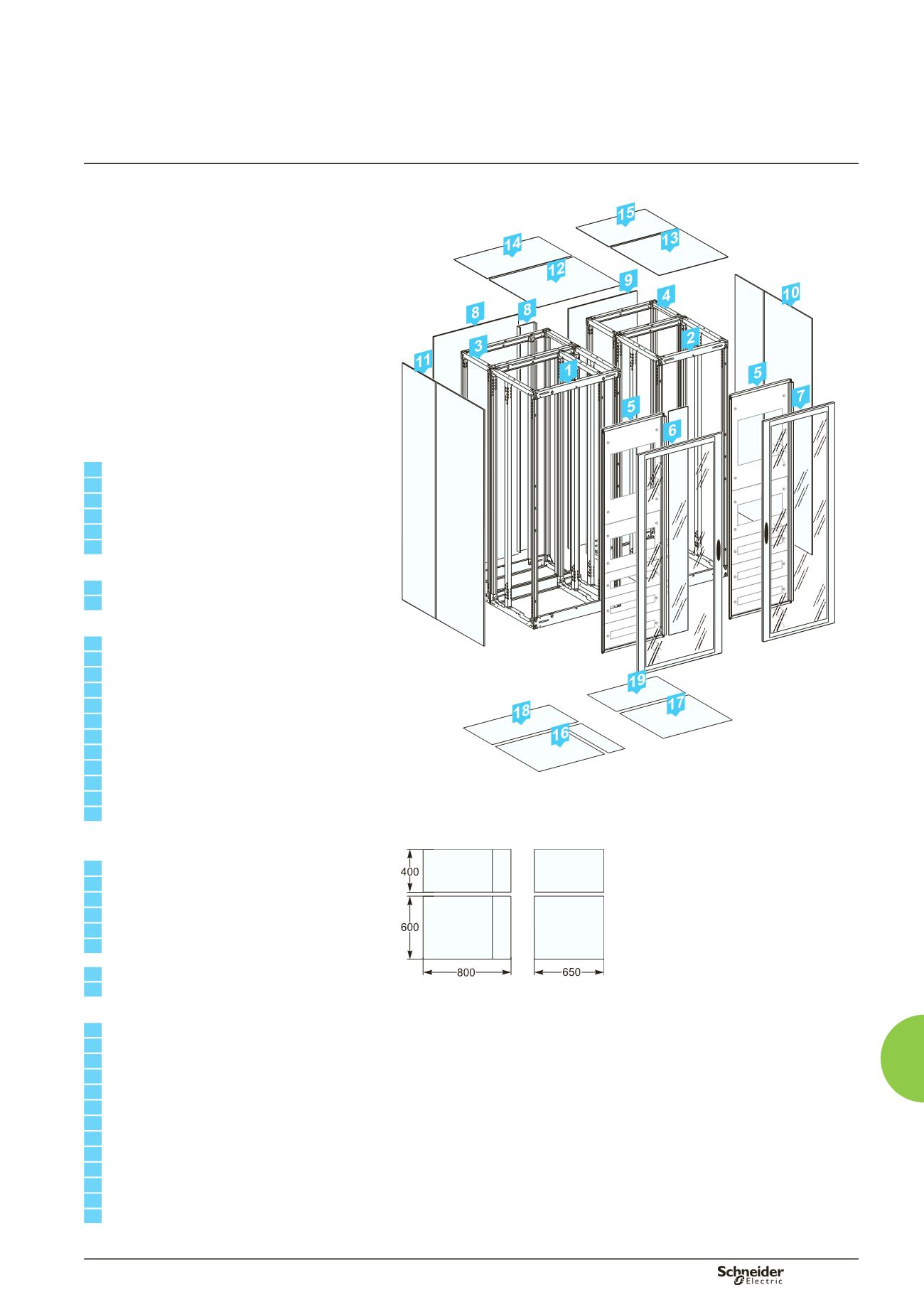

1000 mm deep switchboard
Made up of two cubicles back-to-back.
Rear connections are poss ble.
b
front panels
Any of the following can be installed
in front of the hinged front plate support frame:
v
a transparent door (IP30 or IP55)
v
a plain door (IP30 or IP55)
v
a fixed cover frame (IP30)
b
rear panel = screw-on panel
b
side panels = set of two panels
b
plain roof
b
gland plates (plain or in two parts).
DD382573
Parts list for IP30 switchboard
1
08607:
framework, W = 800, D = 600, H = 2000
2
08606:
framework, W = 650, D = 600, H = 2000
3
08407:
framework, W = 800, D = 400, H = 2000
4
08406:
framework, W = 650, D = 400, H = 2000
5
08566
:
front plate support frame, W = 650
6
08538
:
transparent door, W = 800
(supplied with barrier for busbar compartment,
W = 150)
7
08536
:
transparent door, W = 650
8
08518
:
plain door, W = 800
(supplied with barrier for busbar compartment,
W = 150)
9
08516
:
plain door, W = 650
10
08760:
set of two side panels, D = 600
11
08750:
set of two side panels, D = 400
12
08638:
plain roof, W = 800, D = 600
13
08636:
plain roof, W = 650, D = 600
14
08438:
plain roof, W = 800, D = 400
15
08436:
plain roof, W = 650, D = 400
16
08687:
plain gland plate, W = 800, D = 600
17
08686:
plain gland plate, W = 650, D = 600
18
08487:
plain gland plate, W = 800, D = 400
Combination of cubicles with transparent doors.
19
08486:
plain gland plate, W = 650, D = 400
08719:
double depth combination kit
Parts list for IP55 switchboard
DD380613
1
08607:
framework, W = 800, D = 600, H = 2000
2
08606:
framework, W = 650, D = 600, H = 2000
3
08407:
framework, W = 800, D = 400, H = 2000
4
08406:
framework, W = 650, D = 400, H = 2000
5
08566
:
front plate support frame, W = 650
6
08548
:
transparent door, W = 800 (supplied with
barrier for busbar compartment, W = 150)
7
08546
:
transparent door, W = 650
8
08528
:
plain door, W = 800
(supplied with barrier for busbar compartment,
W = 150)
9
08526
:
plain door, W = 650
10
08765:
set of two side panels, D = 600
11
08755:
set of two side panels, D = 400
12
08658:
plain roof, W = 800, D = 600
13
08656:
plain roof, W = 650, D = 600
14
08458:
plain roof, W = 800, D = 400
15
08456:
plain roof, W = 650, D = 400
16
08687:
plain gland plate, W = 800, D = 600
17
08686:
plain gland plate, W = 650, D = 600
18
08487:
plain gland plate, W = 800, D = 400
19
08486:
plain gland plate, W = 650, D = 400
08717 x 2:
IP55 sealing kit for side-by-side combinations
08719 x 2:
double depth combination kit
Cover panels
