227 / 356
C-15

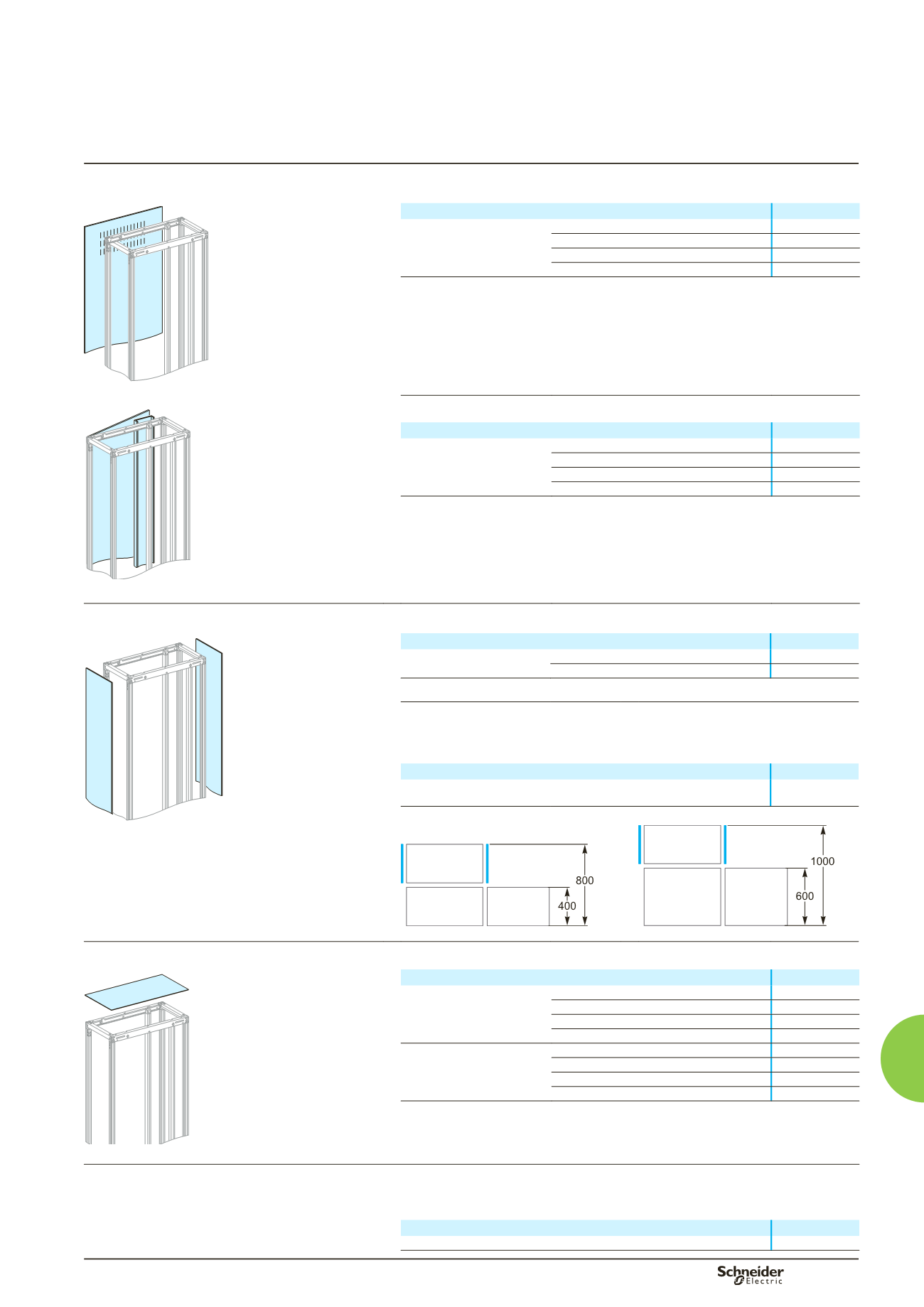

Rear panels
Rear panel
DD380603
Designation
Cat. no.
Rear panel
W
= 300 mm
08733
W
= 400 mm
08734
W
= 650 mm
08736
W
= 800 mm
08738
made up of two half panels with vents
supplied with quarter-turn fasteners.
b
b
08738.
DD382566
Plain door
Designation
Cat. no.
Plain door
W
= 300 mm
08513
W
= 400 mm
08514
W
= 650 mm
08516
W
= 800 mm
08518
equipped with a handle and keylock (key 405).
For other poss bilities, see page C-25
revers ble for left or right-hand opening.
Note:
the 800 mm door is supplied with a 150 mm barrier for the side compartment, plus a
finishing accessory to improve the appearance of the upright.
b
b
08518.
Side panels
Side panels
DD380600
Designation
Cat. no.
Set of two side panels
D = 400 mm
08750
D = 600 mm
08760
Supplied with quarter-turn fasteners.
Side panels for “L” combinations
Left or right combinations of two cubicles with different depths (800 + 400 or 1000 +
600).
Designation
Cat. no.
Set of two side panels for “L”
combinations
D = 400 mm
08756
These panels simply replace the standard side panels.
DD381328
DD381329
08750.
Roof
DD380601
Designation
Cat. no.
Plain IP30 roof, D = 400 mm W = 300 mm
08433
W
= 400 mm
08434
W
= 650 mm
08436
W
= 800 mm
08438
Plain IP30 roof, D = 600 mm
W
= 300 mm
08633
W
= 400 mm
08634
W
= 650 mm
08636
W
= 800 mm
08638
supplied with quarter-turn fasteners for mounting on the framework
with markings for cut-outs, if necebbbssary.
b
b
08438.
IP31 sealing kit
The kit is made up of a self-adhesive gasket that attaches to the roof and a deflector.
It ensures the IP31 degree of protection for a 650 or 800 mm wide cubicle, or for two
cubicles (800 + 400) when they are equipped with plain or transparent front doors.
Designation
Cat. no.
IP31 sealing kit
08711
Cubicles
IP30/31 cover panels
Enclosures
