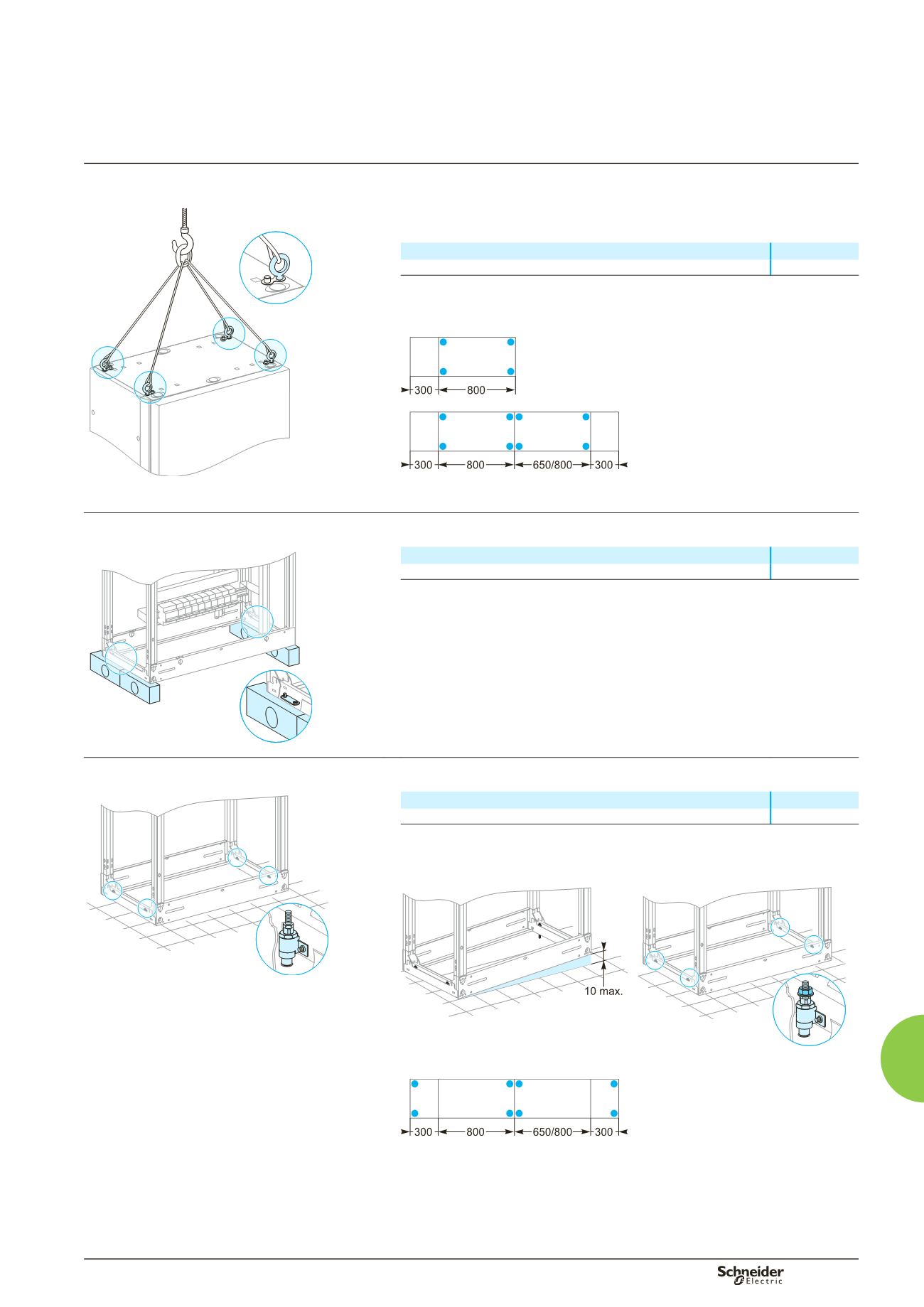

C-21
Enclosures
Lifting rings
Set of four lifting rings screwed to the framework.
Use a set of lifting rings for each framework (W = 650 and 800 mm) containing
devices.
When two cubicles with devices have been combined, use a lifting beam.
DD381541
Designation
Cat. no.
4 lifting rings
08700
can be installed and removed without removing the roof
even if they are left attached, the switchboard conserves its original degree of
protection.
b
b
DD381542
DD381543
Positions of the lifting rings for two combined cubicles containing devices. In this case, a lifting
beam must be used.
Framework stabiliser kit
DD383846
Designation
Cat. no.
Stabiliser kit
08701
made up of four blocks under the framework
suitable for all types of cubicles, whatever the width and depth
increases the stability of the cubicle during mounting of devices
makes poss ble cubicle handling using a pallet mover or a forklift
protects the front, side and rear cover panels during handling
can be reused.
b
b
b
b
b
b
Levelling kit
DD381545
Designation
Cat. no.
Levelling kit (set of 4 fixtures)
08702
can be installed at any time, even when the cubicle is already in position
maximum adjustment range = 10 mm
secures the cubicle to the floor.
b
b
v
DD381549
DD381550
Maximum adjustment range = 10 mm.
Secures the cubicle to the floor.
DD381551
Recommended positions of the fixtures for combined cubicles.
Installation accessories
