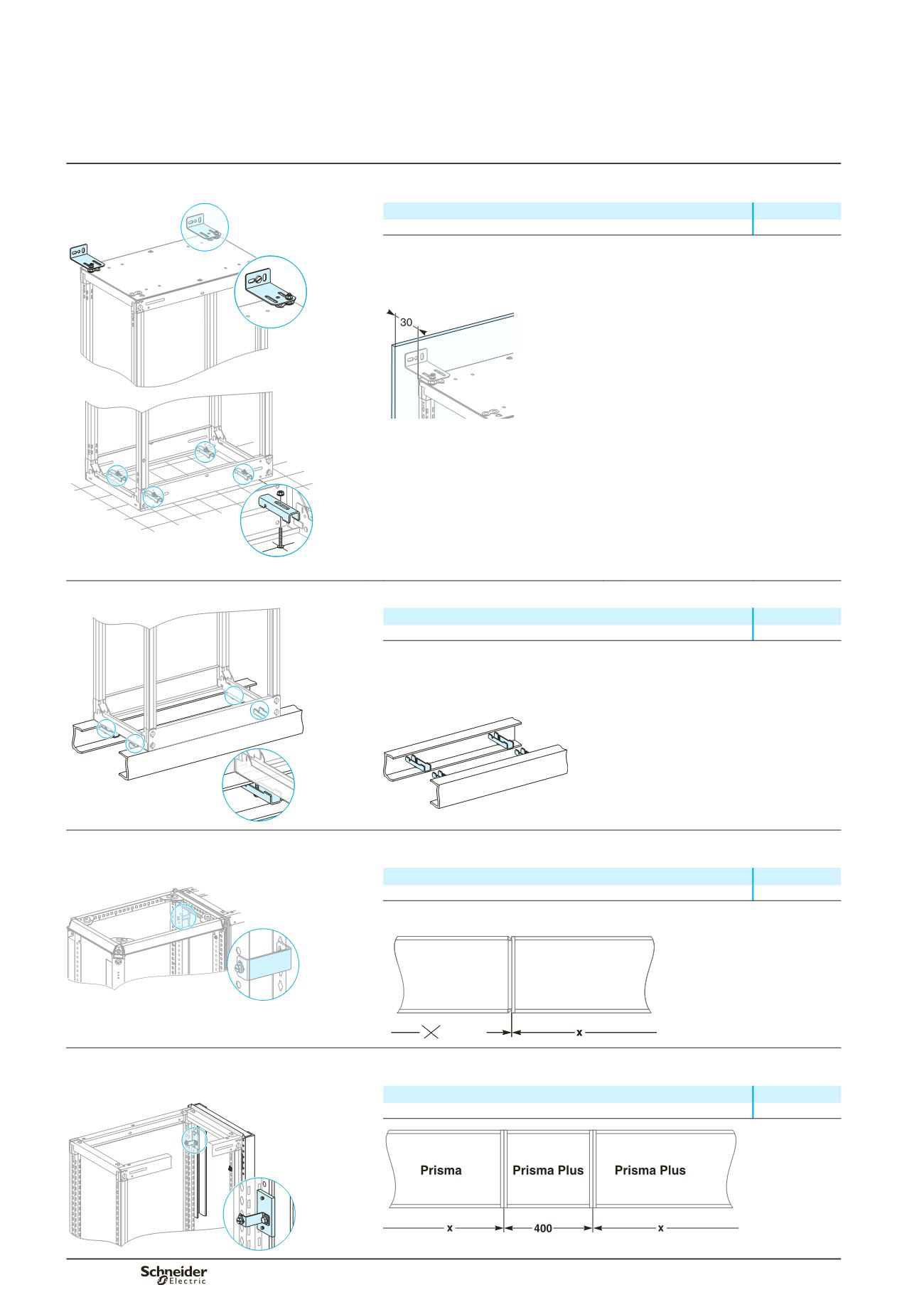

Enclosures
Floor/wall fixing kit
DD381548
Designation
Cat. no.
Floor/wall fixing kit
08704
made up of two brackets and four clamps
can be used to offset the switchboard fixing points for easier access
the wall brackets ensure sufficient wall clearance (at least 30 mm) for natural
convection.
b
b
b
DD381554
DD381553
At least 30 mm of clearance between the wall and a cubicle with a vented rear panel is required
for natural convection.
The offset floor fixing points are easily accessible.
False floor fixing kit
DD381547
Designation
Cat. no.
False floor fixing kit
08703
made up of four independent clamps
clamp on “U” sections (H = 175 mm, W = 70 mm) or “I” sections (H = 120 mm,
W = 64 mm)
clamp travel = 11 mm.
b
b
b
DD381552
Prisma ph/Prisma Plus side-by-
side combinations
To add a Prisma Plus cubicle to an existing Prisma PH installation, use the following
combination kit
Designation
Cat. no.
DD383847
Prisma PH/Prisma Plus side-by-side combination kit
01198
When combining Prisma PH and Prisma Plus IP55 enclosures, use the IP55 sealing kit for side-
by-side combinations (08717) together with the side-by-side combination kit (01198).
DD383937
Prisma/Prisma Plus side-by-side
combinations
To add a Prisma Plus cubicle to an existing Prisma installation, use the following
combination kit and a 400 mm wide frame.
Designation
Cat. no.
DD382926
Prisma/Prisma Plus side-by-side combination kit
01199
DD382527
Prisma PH
Prisma Plus
