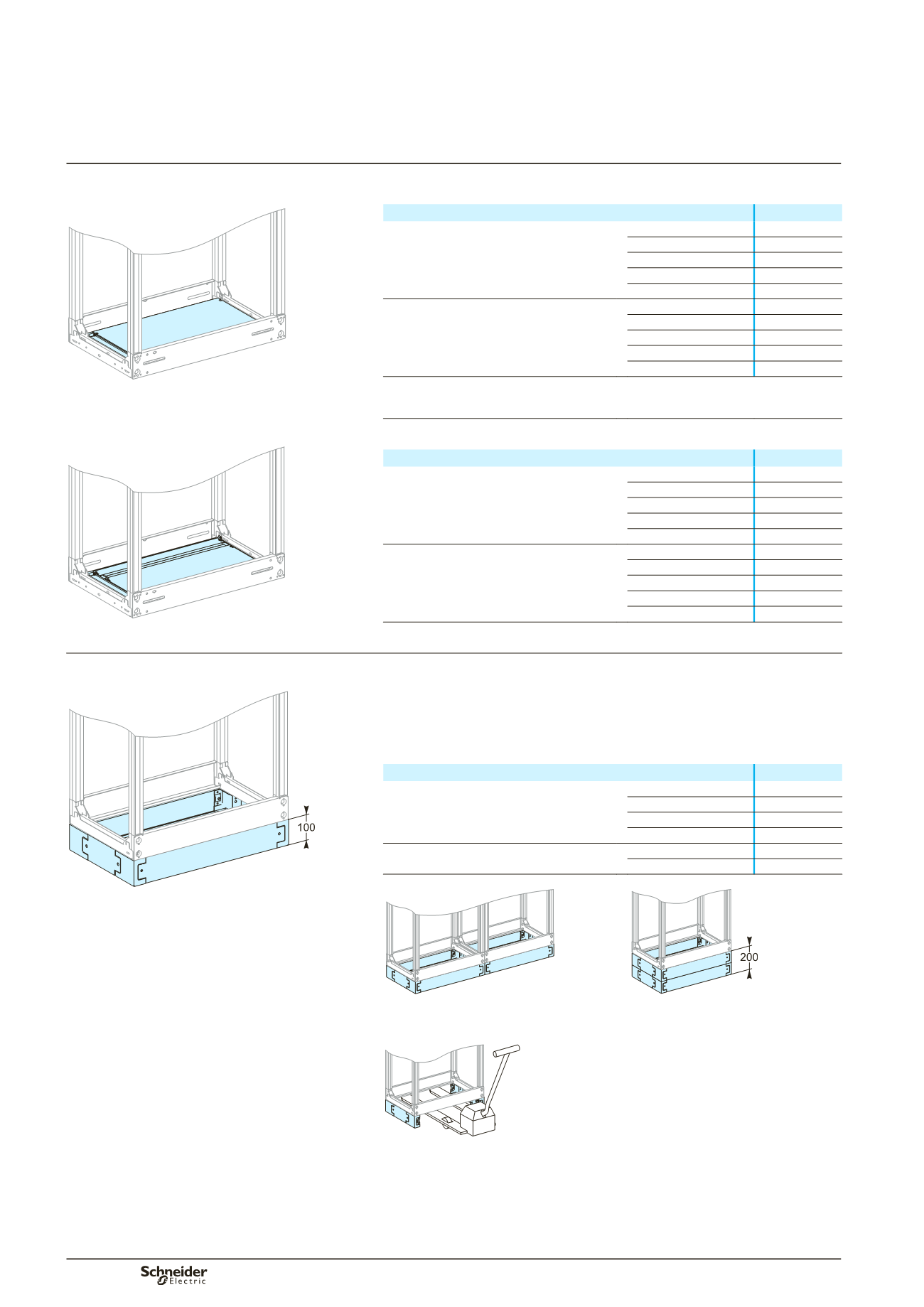

230 / 356
C-18
Gland plates
Gland plates (IP55)
DD381334
Designation
Cat. no.
Gland plates, D = 400
W
= 300 mm
08483
W
= 400 mm
08484
W
= 650 mm
08486
W
= 800 mm (650 + 150)
08487
W
= 800 mm
08488
Gland plates, D = 600
W
= 300 mm
08683
W
= 400 mm
08684
W
= 650 mm
08686
W
= 800 mm (650 + 150)
08687
W
= 800 mm
08688
08486.
DD381335
Two-part gland plates (IP30)
Designation
Cat. no.
Two-part gland plates, D = 400 mm
W
= 300 mm
08493
W
= 400 mm
08494
W
= 650 mm
08496
W
= 800 mm (650 + 150)
08497
W
= 800 mm
08498
Two-part gland plates, D = 600 mm
W
= 300 mm
08693
W
= 400 mm
08694
W
= 650 mm
08696
W
= 800 mm (650 + 150)
08697
W
= 800 mm
08698
08496.
Plinth, H = 100 mm
The plinth is made up of two catalogue numbers:
one catalogue number comprising four corner posts + two cross-pieces (front and
rear), that can be used in side-by-side combinations or stacked to form a plinth
200 mm high (maximum)
one catalogue number comprising two side plates (400 or 600 mm).
Each catalogue number is supplied with the necessary hardware.
b
b
DD381330
Designation
Cat. no.
Four corner posts + two cross-pieces (front and
rear)
W
= 300 mm
08723
W
= 400 mm
08724
W
= 650 mm
08726
W
= 800 mm
08728
Two side plates
D = 400 mm
08720
D = 600 mm
08721
DD381331
DD381332
08726 + 08720.
Side-by-side combination of two cubicles with a
plinth.
Two stacked plinths.
DD381333
The front and rear cross-pieces can be easily
removed for a pallet-mover.
Cubicles
Plinth
Enclosures
