Enclosures
Presentation
In most cases and notably for IP30 switchboards, convection takes place naturally
and does not require fans.
However, when the switchboard is installed in temperate environments or when the
degree of protection is high (IP55), ventilation accessories are indispensable. For
more in-depth information on selecting air-conditioning accessories and the thermal
management of switchboards, see page D-78.

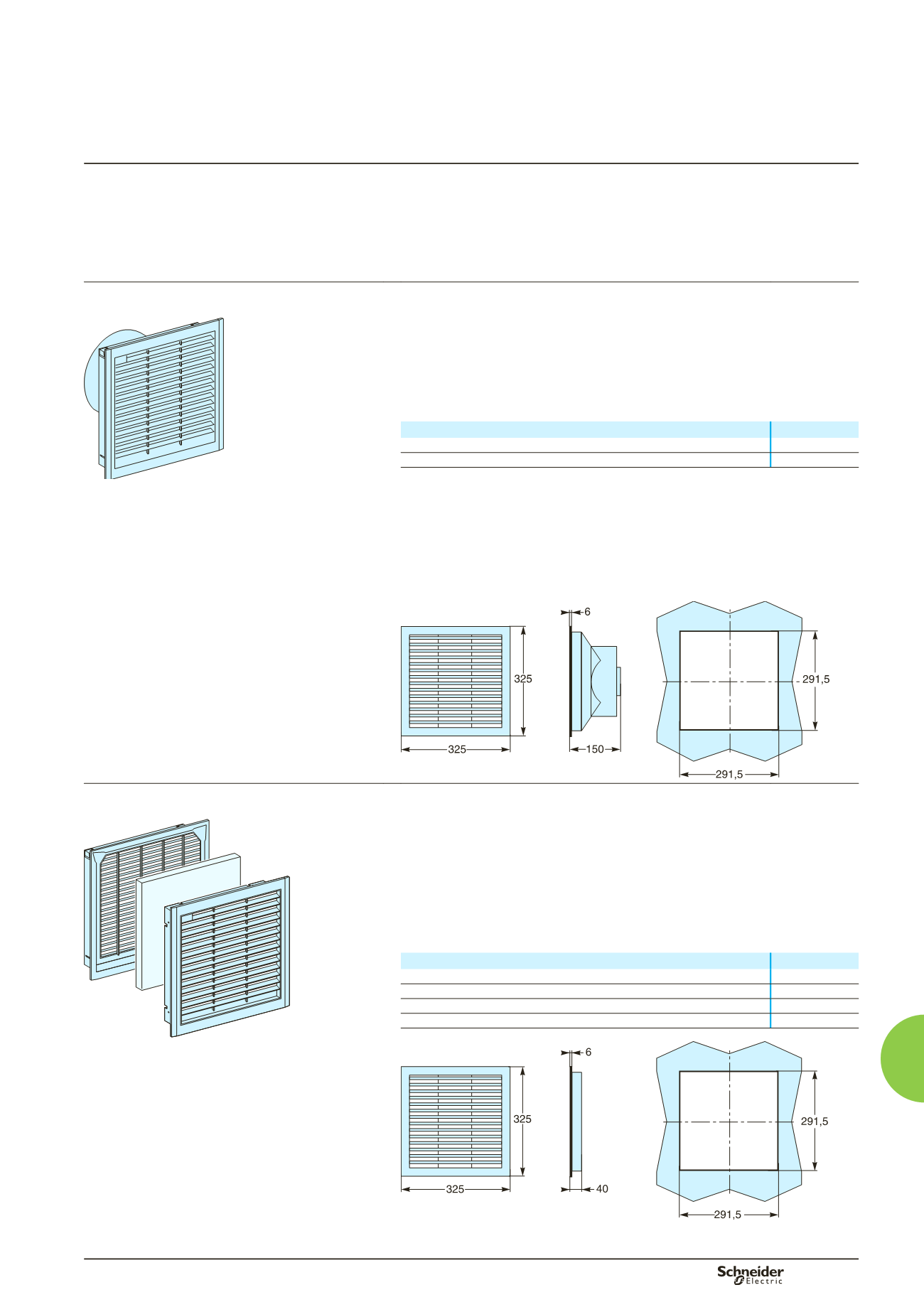

Front or side fan
The switchboard is cooled by drawing in cool external air.
Presentation
The set comprises the fan with a grill and a filter.
It can be clipped directly on the cut-out front plate.
Installation
These fans are generally installed at the bottom of floor-standing enclosures:
by cutting out a side panel
or on the front, using the front plate with cut-out for a fan.
b
b
DD381703
Designation
Cat. no.
Fan
08987
Front plate with cut-out for fan or filter (7 modules)
03890
Characteristics
Power rating: 70 W.
Input voltage: 230 V.
Noise level: 69 dB.
Degree of protection: IP54.
Weight: 3 kg.
Unimpeded throughput: 460 m
3
/h.
Throughput with counterpressure (grill + standard filter, cat. no. 08988): 350 m
3
/h.
DD381723
Filter for front or side fan
Presentation
The grill is supplied with a standard filter that can be replaced or exchanged for a finer
filter.
The grill can be clipped directly on the cut-out front plate.
Installation
The grill/filter can be installed:
by cutting out a side panel
or on the front, using the front plate with cut-out for a fan.
Characteristics
Degree of protection: IP54.
b
b
DD381704
Designation
Cat. no.
Grill with filter (supplied with standard filter, maximum throughput = 350 m
3
/h)
08988
5 standard filters (replacement)
08989
5 fine filters
08990
Front plate with cut-out for fan or filter (7 modules)
03890
DD381724
