Enclosures
800 mm deep switchboard
Made up of two cubicles
back-to-back.
Rear connections are possible.
b
front panels
Any of the following can be installed
in front of the hinged front plate support frame:
v
a transparent door (IP30 or IP55)
v
a plain door (IP30 or IP55)
v
a fixed cover frame (IP30)
b
rear panel = screw-on panel
b
side panels = set of two panels
b
plain roof
b
gland plates (plain or in two parts).
DD382572

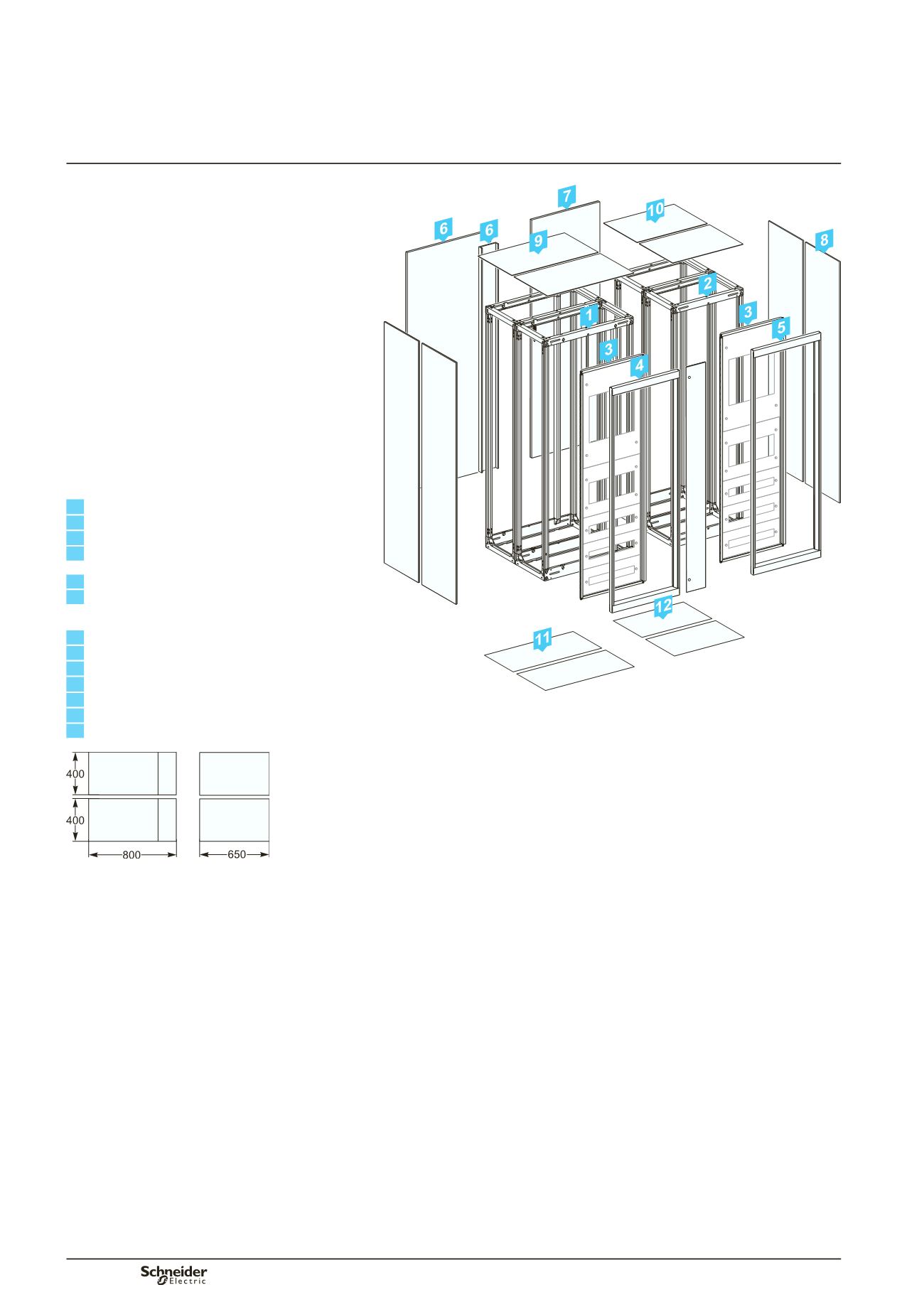

Parts list
1
08407 x 2:
2 frameworks, W = 800, D = 400, H = 2000
2
08406 x 2:
2 frameworks, W = 650, D = 400, H = 2000
3
08566
:
front plate support frame, W = 650
4
08578
:
fixed cover frame, W = 800 (supplied with a
wicket door, W = 150)
5
08576
:
cover frame, W = 650
6
08518
:
plain door, W = 800
(supplied with barrier for busbar compartment,
W = 150)
7
08516
:
plain door, W = 650
8
08750 x 2:
2 sets of two side panels, D = 400
9
08438 x 2:
2 plain rooves, W = 800, D = 400
10
08436 x 2:
2 plain rooves, W = 650, D = 400
11
08487 x 2:
2 plain gland plates W = 800, D = 400
Combination of IP30 cubicles with cover frames.
12
08486 x 2:
2 plain gland plates W = 650, D = 400
08719 x 2:
double depth combination kit
DD380615
Cover panels
