Enclosures
Cover panels

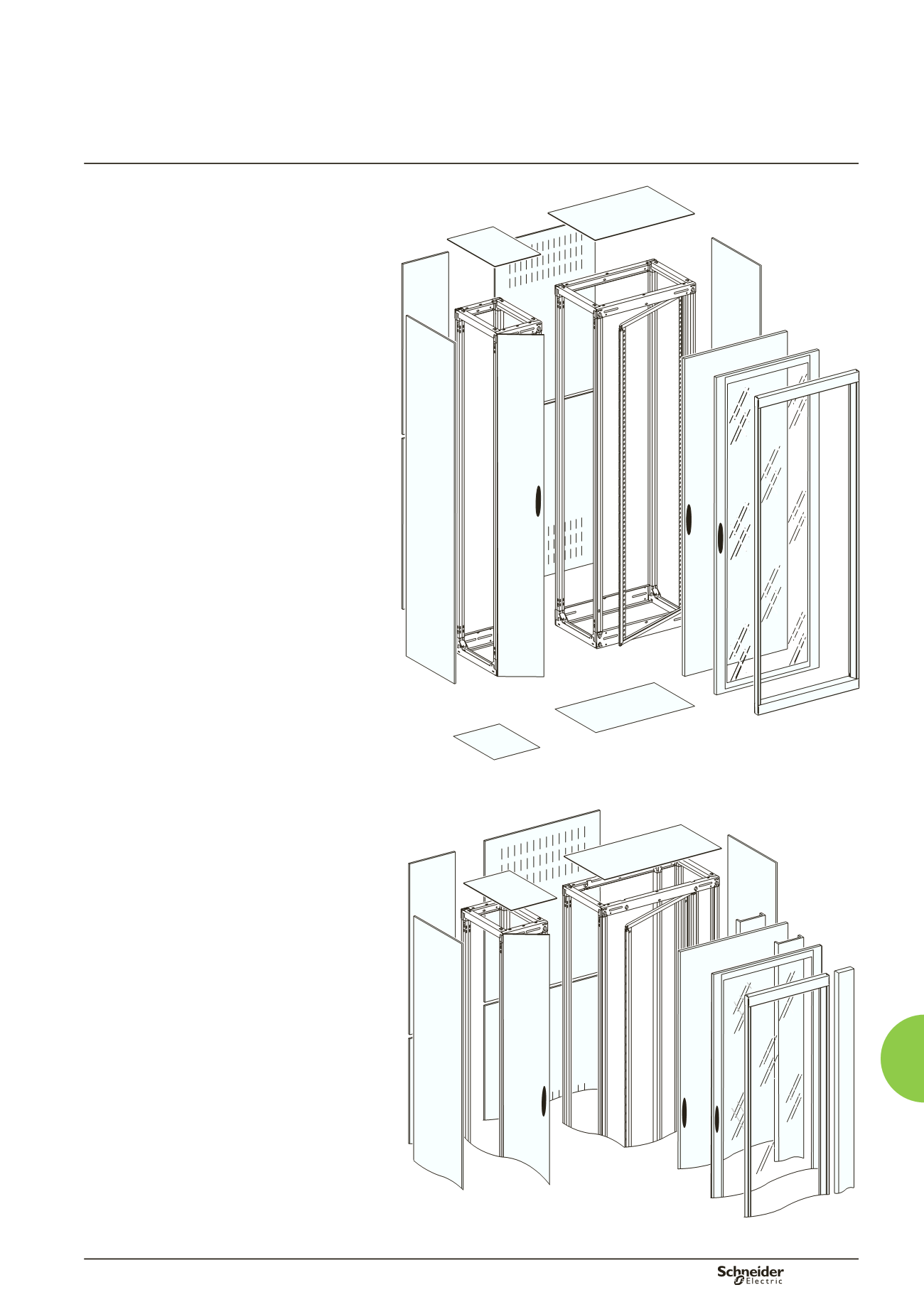

DD380568
Front panels
for frameworks 650 and 800 mm wide.
Any of the following can be installed in front of the
hinged front plate support frame:
a plain door (IP30 or IP55)
a transparent door (IP30 or IP55)
a cover frame (IP30)
for frameworks 300 and 400 mm wide.
A plain door is used (IP30 or IP55).
Rear panels
The rear panel can be made up of:
two parts for IP30 panels
one reinforced part for IP55 panels.
A plain door can also be used, notably for switchboards
with rear connections (800 and 1000 mm deep).
Side panels
A set of two panels is used (IP30 or IP55).
If frameworks are installed back to back (double depth),
two sets of two panels are required.
Roof
There is a plain roof (IP30 or IP55) for each size of
framework.
Gland plates
They are mandatory, whatever the desired degree of
protection for the switchboard.
For each size of framework, there are plain gland plates
(IP55) or two-part gland plates (IP30).
Degree of protection
IP30 switchboard
Use:
the IP30 cover panels with a door or cover frame
IP30 plain roof
gland plates (plain or in two parts).
IP31 switchboard
Use:
the IP30 cover panels with a door
IP30 plain roof
IP31 sealing kit
gland plates (plain or in two parts).
IP55 switchboard
Use:
the IP55 cover panels with a door
IP55 plain roof
plain gland plates.
If frameworks are combined, use the IP55 sealing kit for
side-by-side combinations.
