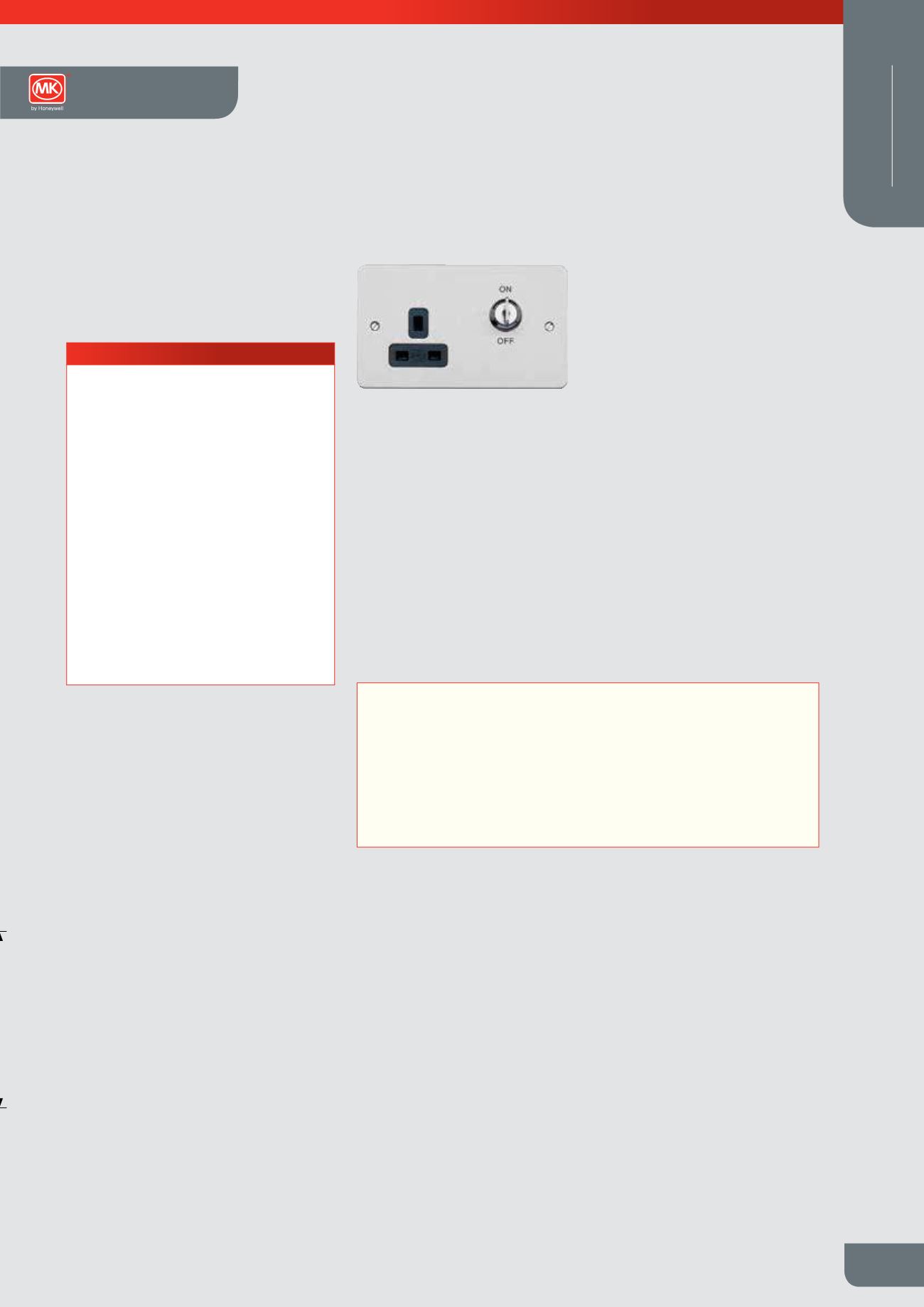

Key Operated Switchsocket Outlet
Description
The Key Operated 13 amp socket is designed for ease of installation and has all
the design features of the Edge range. The built-in lock ensures that power cannot
be provided without key operation making it ideal for communal areas such as hotel
lobbies. The key can be removed from the lock in the on or off position leaving the
socket with or without power supply.
The product can be quickly installed as replacement for existing 2 gang 13 amp
sockets or in a new installation (assuming suitable 47mm deep mounting box is in
position).
Installation
Edge socket outlets can be wall or bench mounted. Do not mount or use as a
trailing socket or where they may be subject to excessive moisture or dampness.
Standards and approvals
All Edge 13A socket outlets comply with
BS 1363: Part 2:1995.
TECHNICAL SPECIFICATION
ELECTRICAL
VOLTAGE RATING
250V a.c.
CURRENT RATING
13A
TERMINAL CAPACITY
Live, neutral & earth
3 x 2.5mm²
2 x 4mm²
1 x 6mm² (stranded)
(Dual earth terminals)
PHYSICAL
AMBIENT OPERATING TEMPERATURE
–5°C to +40°C
IP RATING
IP2XD
MAX. INSTALLATION ALTITUDE
2000 metres
Features
l
Built in lock ensures power
cannot be provided without key
operation
l
Printed terminal markings on
grey rear mouldings for clearer
identification
l
Double pole switching
l
Only one size of screwdriver
required for installation
l
Dual earth terminals for high
integrity earthing
Note: The lock fitted to each socket is universal. i.e. a common key profile.
However, the keys are different to those used on MK Key Operated Fire Alarm Isolator
Switches, for added security.
