WIRING DEVICES
Technical Hotline
+44 (0)1268 563720

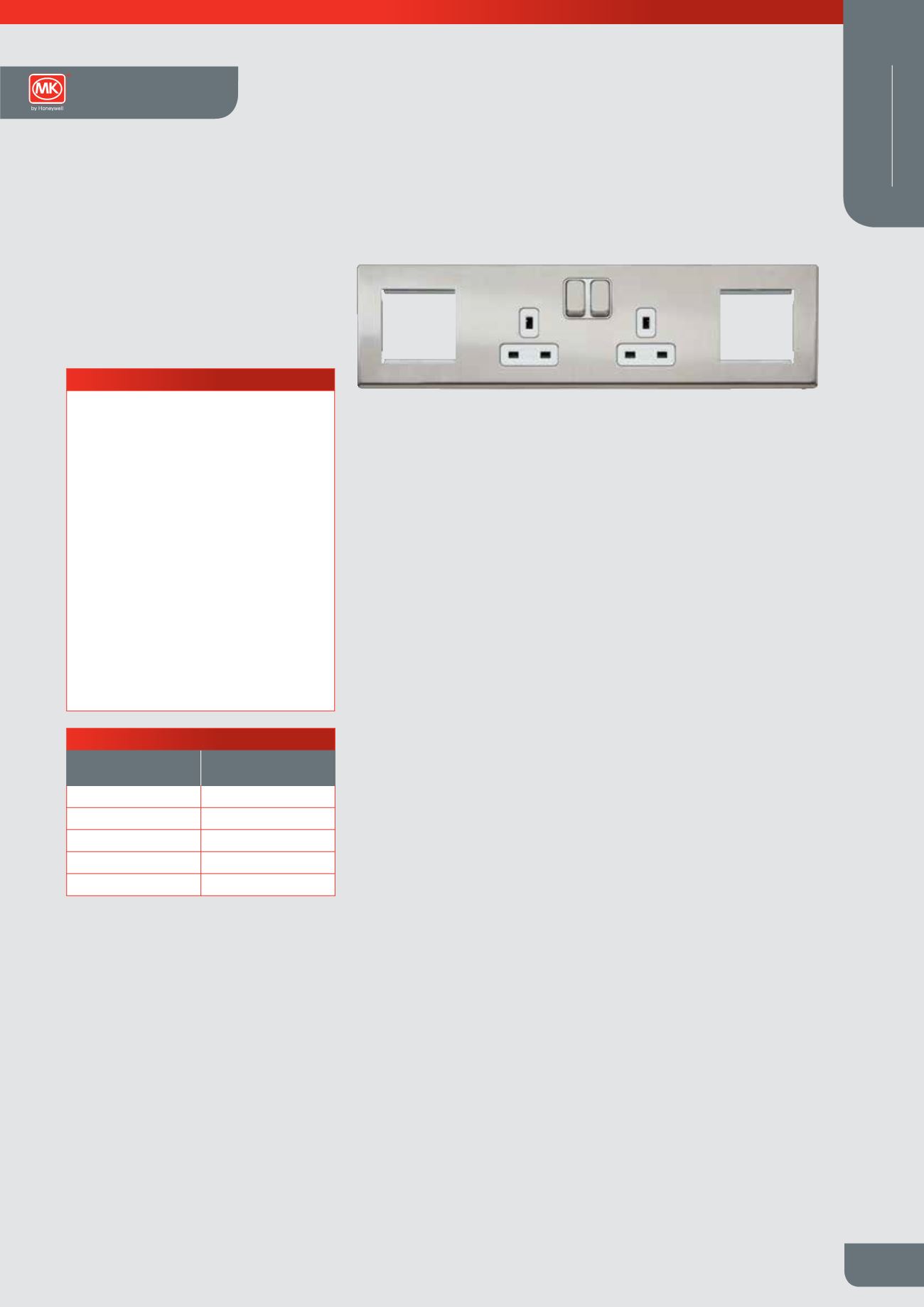

Combination Plate
Description
A range of combination plates designed for ease of installation and having all the
advantageous design features of the Aspect range.
These combination socket outlets provide interior designers and installers with a
stylish and practical wiring device solution. The range also has larger euro module
frontplates to house eight and twelve single euro modules without the inclusion of
fixed socket outlets. The K24209 combination socket outlet, for example allows for
the inclusion of up to eight single Euro modules, which could include datacoms,
telecoms, plus TV and Satellite modules.
Alternatively, Euro Power Modules i.e. German, French/Belgium and American
socket outlets may be used.
Note:
l
Pre-configured back boxes are designed for use with the combination plates.
These back boxes should always be used to ensure alignment of the fixing
screws is correct and proper segregation between mains and extra low voltage
products is maintained
l
For Aspect products, back boxes must be installed 10mm sub flush to the wall
surface
l
Mains operated products and extra low voltage modules must not be installed
within the same frontplate aperture. Refer to BS 7671: 2008 for details
l
When removing the fixing screws and frontplate from an installation to gain
access to low voltage modules, please be aware that there will also be access to
the mains supply
All pre-fitted sockets come complete and are fitted with two earth terminals on a
common busbar to provide a double earth facility for use when installations require
a high integrity protective connection as specified within BS 7671, IET Wiring
Regulations.
Bespoke requirements can be achieved through
the MK Design Service to deliver variation in
colours, materials, finishes and markings.
Euro apertures can also be converted to
grid-switch. For more information please visit
www.mkelectric.co.ukor call 01268 563720
Standards and approvals
All Aspect 13A socket outlets comply with
BS 1363: Part 2:1995.
K24209 and K24210 comply with BS 5733:2010.
TECHNICAL SPECIFICATION
ELECTRICAL
VOLTAGE RATING
250V a.c.
CURRENT RATING
13A
TERMINAL CAPACITY
Live, neutral & earth
3 x 2.5mm²
3 x 4mm²
2 x 6mm² (stranded)
(Dual earth terminals)
PHYSICAL
AMBIENT OPERATING TEMPERATURE
–5°C to +40°C
IP RATING
IP2XD
MAX. INSTALLATION ALTITUDE
2000 metres
MOUNTING BOXES
Combination Plate
List Number
47mm
Mounting Box
K24206
870ZIC
K24207
870ZIC
K24208
868ZIC
K24209
858ZIC
K24210
869ZIC
Wiring Devices Technical
– Aspect
